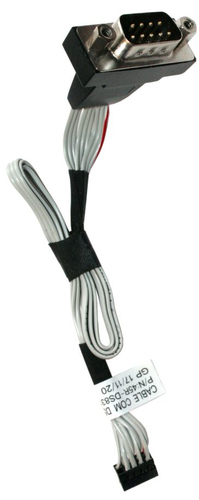

Shuttle PCP11 - COM port (RS232) adapter cable for PCs

Name: Shuttle PCP11 - COM port (RS232) adapter cable for PCs
Brand: Shuttle
SKU: PCP11
Price: 6.58 EUR
Availability: OutOfStock

P20U, P22U, P51U, P52U: These Shuttle XPC all-in-one products come with two COM ports as standard. The PCP11 adds up to two more COM ports which makes it a total of four serial COM ports (RS232) with Sub-D connectors.DS10U, DS20U: The Shuttle XPC slim DS10U Series comes with one COM Port and one VGA port as standard. If two COM ports are required, the existing VGA port may be removed and replaced by PCP11 instead.XH410G, XH510G, XH510G2: with PCP11 an additional COM port can be installed on the backpanel.Scope of delivery: - 1x COM port adapter- 2x affixing screw (UNC 4-40 thread)- Installation guidePorts:External: Sub-D, 9-pin, maleInternal: 10-pin (2×5), female, 2 mm pitchCable:9-pin ribbon cableLength: Approx. 21 cmCompatibility: This accessory is compatible with:1) Shuttle XPC all-in-one Barebone P20U / P22U / P51U / P52U series2) Shuttle XPC slim Barebone DS10U / DS20U series3) Shuttle XPC slim Barebone XH410G / XH510G / XH510G2

ON ORDER

RRP Price €6.58

Specifications

Features

Product colour

Black, Grey

Cable length

0.21 m

Connector 1

9 pin D-Sub

Connector 2

10-pin (2×5)

Connector 1 gender

Male

Connector 2 gender

Female

Compatible products

This accessory is compatible with: 1) Shuttle XPC all-in-one Barebone P20U / P22U / P51U / P52U series 2) Shuttle XPC slim Barebone DS10U / DS20U series 3) Shuttle XPC slim Barebone XH410G / XH510G / XH510G2
