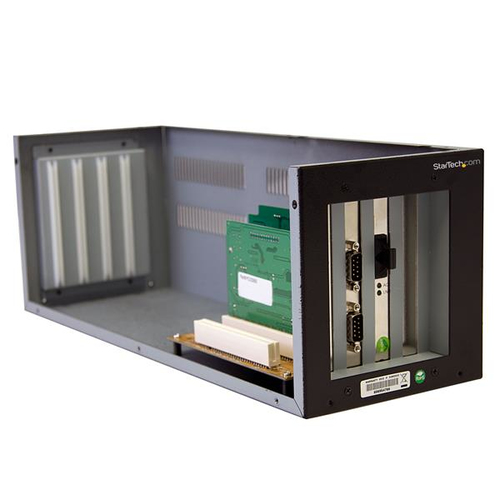

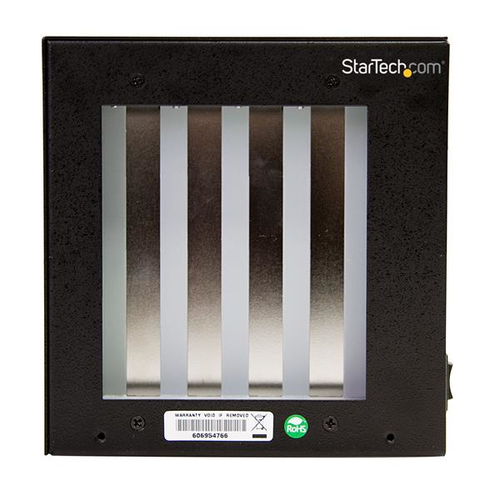

StarTech.com PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length

The PEX2PCIE4L PCI/PCI Express Expansion Chassis provides a quick and simple I/O expansion solution to almost any PCI Express (PCIe) enabled system. Adding PCI/PCIe cards to a server or workstation, or providing a platform to swap cards between a mobile and desktop setup is a cost-effective and time-saving solution for maximizing the I/O capabilities of your system.

The external expansion chassis adds two full-length (38cm) PCI slots (32-bit/33MHz), as well as two PCIe x1 (single-lane) slots to a host computer through a single PCI Express connection. Providing total bandwidth up to 250MBps from the PCIe x1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Control the power state of connected PCI/PCIe cards with the self-powered chassis and easily accessible on/off button
Install additional cards without opening your computer with the provided external expansion card slots
Easy installation and support for small form-factor computers with an included low-profile/half-height bracket

5 IN STOCK

SKU: PEX2PCIE4L

Manufacturer: StarTech.com StarTech.com

RRP Price €601.36

Specifications

Design

Certification
ROHS, CE, FCC

Power

Output voltage
12 V
Output current
3 A

Operational conditions

Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
137 mm
Depth
382 mm
Height
143 mm
Weight
2 kg

Packaging data

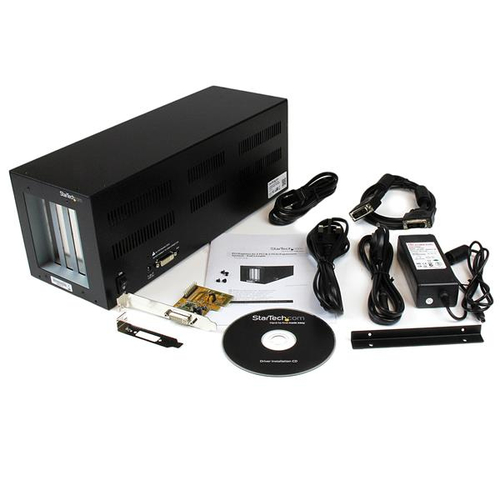

Cables included
AC, DVI
Manual
Yes
Package width
208 mm
Package depth
436 mm
Package height
254 mm
Package weight
2.1 kg

Logistics data

Harmonized System (HS) code
84719000

Other features

Data transfer rate
250 Mbit/s
Ports quantity
4
Cable length
0.9 m
Compatible operating systems
Win 2000/XP/2003/ Vista Linux Mac OS X
Power requirements
115 - 230 AC

Accessories

License
