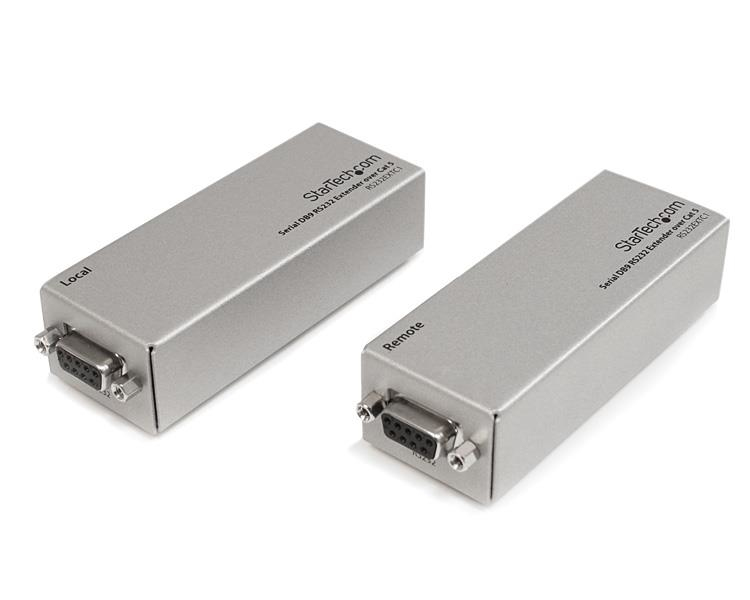

StarTech.com Serial DB9 RS232 Extender over Cat 5 - Up to 3300 ft (1000 meters)

Extend an RS232 serial connection up to 1000 meters (3300 feet) using Cat 5 cabling
The RS232EXTC1EU Serial over Cat 5 Extender allows you to increase the distance of your RS232 Serial connection by up to 1000 meters (3300 feet), giving you the ability to connect serial peripheral devices up to a kilometer away from your system - an incredible 65x greater than normal RS232 serial cable length restrictions would permit. The Serial Extender is a cost-effective serial extension solution and entirely hardware-based, eliminating the need to install additional software, allowing for a completely plug and play installation. The hardware can be setup in minutes, using existing or new Cat 5 or better Ethernet cabling. Perfect for use in industrial monitoring and control, POS, security, medical, and traffic flow applications, the RS232 Serial over Cat 5 extender maintains the RS232 standard with support for data transfer rates of up to 230 Kbps. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Provides you with flexibility when choosing the location of your serial peripherals by dramatically increasing the maximum RS232 serial cable length
- Pure hardware design, no software or drivers required ensuring a simple plug and play installation
- Enables use of separate control rooms away from harsh environmental conditions where serial devices may be located

6 IN STOCK

SKU: RS232EXTC1EU

Manufacturer: StarTech.com StarTech.com

RRP Price €149.80

Specifications

Ports & interfaces

Host interface
VGA
Output interface
Serial
Serial ports quantity
1
Serial interface type
RS-232

Design

Internal
No
Product colour
Silver

Power

Power supply type
DC

Operational conditions

Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
0 - 85 °C
Operating relative humidity (H-H)
0 - 90%

Weight & dimensions

Width
65 mm
Depth
92 mm
Height
22 mm
Weight
1 kg

Packaging data

Package width
57 mm
Package depth
315 mm
Package height
138 mm

Logistics data

Harmonized System (HS) code
84733020

Other features

Data transfer rate
0.115 Mbit/s
Connectivity technology
Wired
Power requirements
115V
Ethernet LAN (RJ-45) ports
1

Accessories
