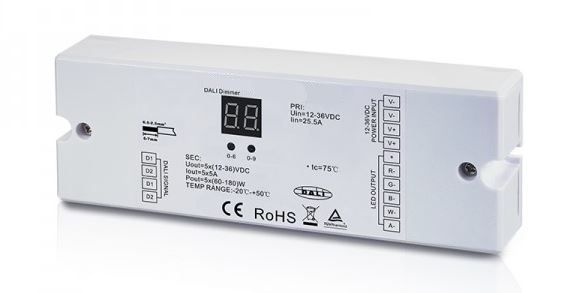

Synergy 21 LED Serie EOS 07 DALI Controller DT8 RGB-WW (CCT) — S21-LED-SR000142

SKU: S21-LED-SR000142

€52.77

In stock

DALI Controller der EOS 07 Series für RGB-WW Produkte wie LED Streifen, RGB-WW Straherl oder ähnliches 1. DT8 version 5 channels for RGBWW 5ch dimmer 2. DC version, 12-24VDC, 5ch x 5A, constant voltage 3. Overcurrent / overheat protection applied\" The RGBWW Controller is a 5 channel constant voltage RGBWA DT8 DALI dimmer that complies to the latest IEC 62386-209:2011 standard and supports DT8 device commands. All output channels R, G, B, W and Amber of this device is controlled via a single DALI address and it is compatible with universal DALI master controllers that supports DT8 commands. DT8 commands enable easy RGB color adjusting. DALI address can be manually assigned and displayed via digital display. It is configurable via DALI software tool and DALI USB interface. Key Features DALI certified TÜV CE certified RGBWA DT8 DALI Dimmer with RGB Color Control Complies to the latest IEC 62386-209:2011 standard 5 channels constant voltage output controlled via a single DALI address R, G, B, W and Amber 5 channels output Control of five PWM outputs R, G, B, W and A via DALI DT8 color type RGBWA. Color control as defined in the DALI specification for device type 8, color type RGBWA. Compatible with universal DALI master controllers that supports DT8 commands DALI address can be manually assigned and displayed via digital display Configurable via DALI software tool and DALI USB interface
