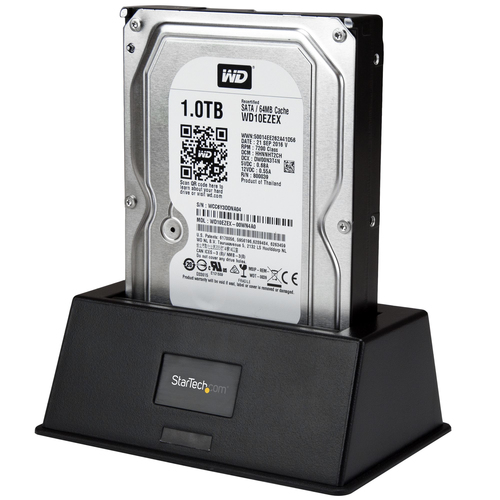

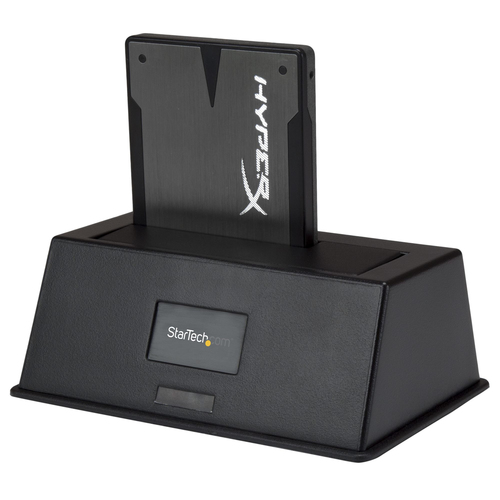

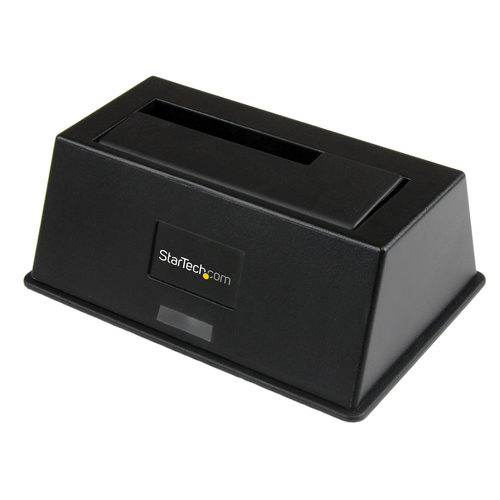

StarTech.com Single Bay USB 3.0 to SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock, External 2.5/3.5" SATA I/II/III HDD/SSD Docking Station, Top-Loading Hard Drive Bay

SATA Hard Drive Docking Station, USB 3.0 (5 Gbps) Hard Drive Dock

The SDOCKU33BV UASP-enabled USB 3.0 docking station makes it easy for you to connect and swap 2.5in or 3.5in SATA III hard drives (HDD) and solid state drives (SSD) through an available USB port. The dock performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives.

With support for large capacity SATA I/II/III drives (tested up to 4TB), and 2.5in or 3.5in drives this HDD/SSD docking station is compatible with virtually any SATA drive, and greatly increases the storage/backup capabilities of your computer.

Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in IDE hard drive into a SATA hard drive dock.

To ensure compatibility with your computer system, the SDOCKU33BV supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.

The SDOCKU33BV is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

The StarTech.com Advantage

11 IN STOCK

SKU: SDOCKU33BV

Manufacturer: StarTech.com StarTech.com

RRP Price €61.47

Specifications

Hard drive

Storage media type
HDD, SSD
Storage drive interface
Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported
2.5,3.5"
Number of storage drives supported
1

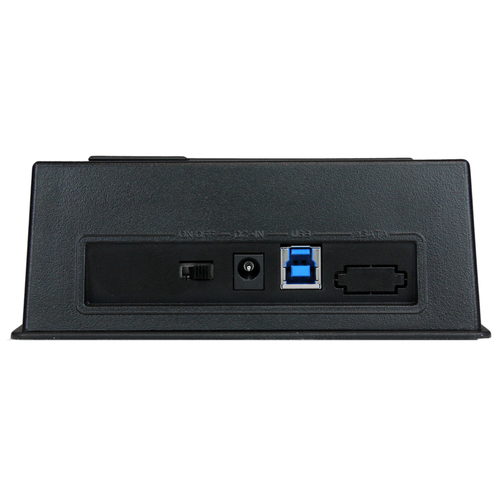

Ports & interfaces

Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity
1
DC-in jack
Yes

Features

Maximum data transfer rate
6 Gbit/s
Plug and Play
Yes
LED indicators
Activity, Power
On/off switch
Yes
UASP support
Yes

Cooling

Built-in fan
No

Power

AC input voltage
100-240 V
Output voltage
12 V

Weight & dimensions

Weight
318 g

Packaging data

Package dimensions (WxDxH)
92 x 160 x 170 mm
Package width
161 mm
Package depth
170 mm
Package height
94 mm
Package weight
704 g

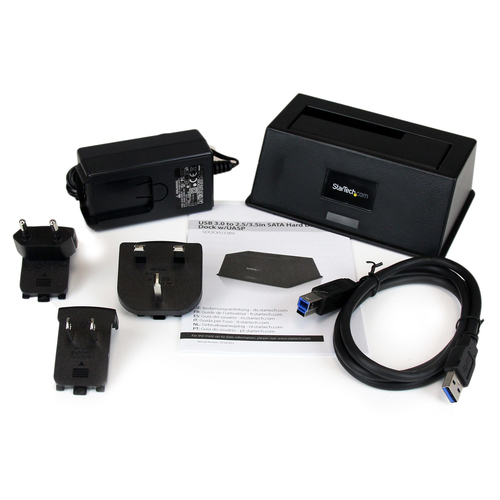

Packaging content

AC adapter included
Yes
Cables included
USB
Manual
Yes
Included power plug types
EU, NA, UK

Operational conditions

Operating temperature (T-T)
5 - 35 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
20 - 80%

Sustainability

Sustainability compliance
Yes

Other features

Standard interfaces
USB 3.2 Gen 1 (3.1 Gen 1)
Chipset
ASMedia - ASM1053 - 6G
Compliance certificates
CE, RoHS

Logistics data

Harmonized System (HS) code
84733080
Master (outer) case width
187 mm
Master (outer) case length
476 mm
Master (outer) case height
387 mm
Products per master (outer) case
10 pc(s)

Accessories

License
