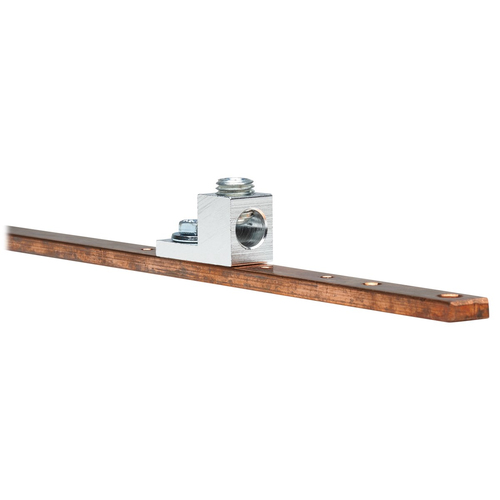

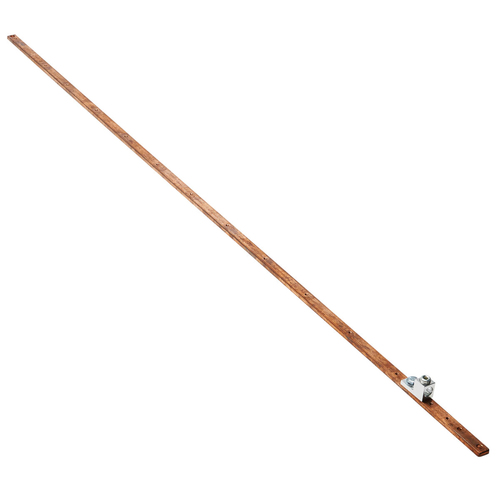

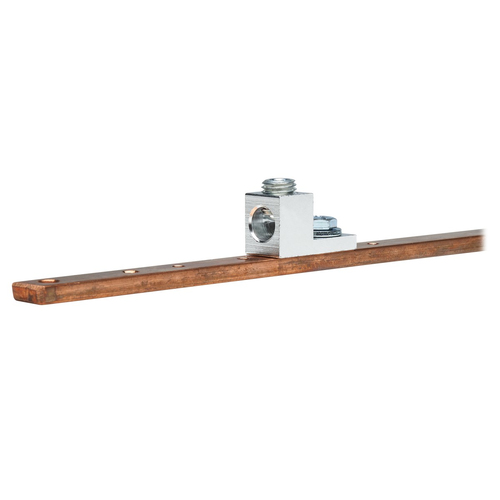

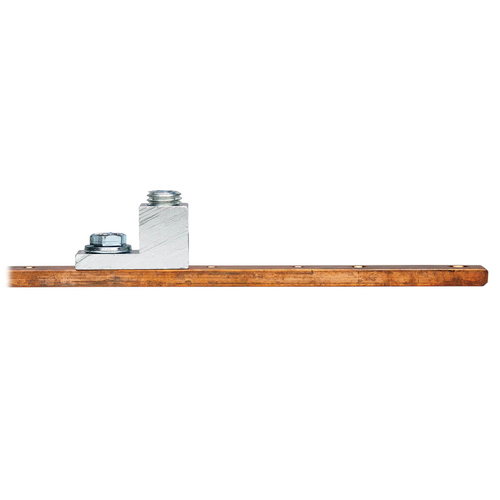

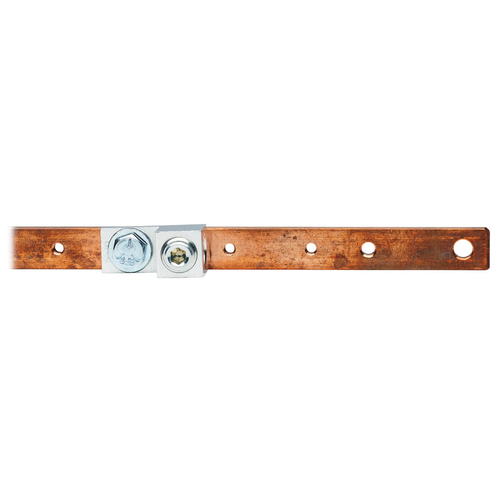

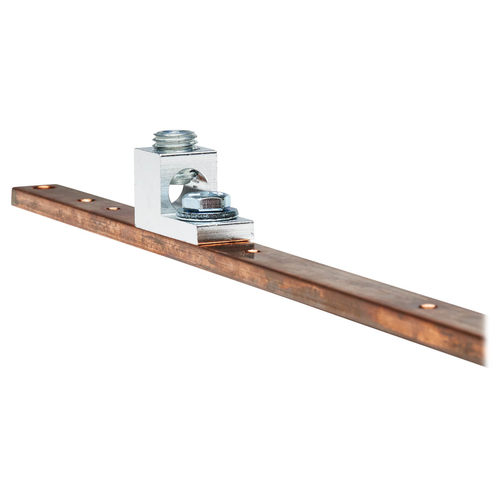

Tripp Lite SRGROUND25 SmartRack Copper Bus Grounding Bar for 24U and 25U Racks

Provides Convenient Ground Contact for Your Rack-Mounted Equipment
This SmartRack® grounding bar is a thin strip of heavy-gauge solid copper that attaches to any EIA-standard 24U or 25U rack enclosure or open frame rack. Every other U space has a drilled and tapped hole to allow a ground wire jumper to be installed, providing convenient ground contact for standard rack equipment. The jumper then bridges to individual rack components, with grounding straps, allowing a direct path to ground, rather than going through surrounding equipment.

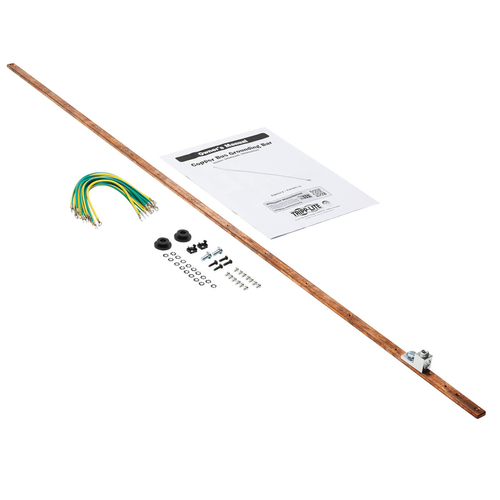

Easy to Install with All Hardware Included
You can mount the SRGROUND25 in any EIA-standard 24U or 25U rack enclosure or open frame rack. Either screw it into a rack enclosure using the included mounting hardware, or install it in an open frame rack with the included toolless mounting buttons. This copper grounding bar is ideal for large data centers that contain ground-sensitive equipment.

ON ORDER

SKU: SRGROUND25

Manufacturer: Eaton Eaton

RRP Price €123.56

Specifications

Features

Type
Grounding bar
Product colour
Copper
Housing material
Copper
Rack capacity
25U
Country of origin
China

Weight & dimensions

Width
15.9 mm
Depth
6.4 mm
Height
1148.1 mm
Weight
1.36 kg

Packaging data

Quantity per pack
1 pc(s)
Package width
85.1 mm
Package depth
59.9 mm
Package height
1240 mm
Package weight
1.36 kg

Packaging content

Mounting kit
Yes

Technical details

Master (outer) case GTIN (EAN/UPC)
10037332241471

Logistics data

Master (outer) case width
460 mm
Master (outer) case length
1260.1 mm
Master (outer) case height
140 mm
Master (outer) case gross weight
15.9 kg
Products per master (outer) case
10 pc(s)
Harmonized System (HS) code
7409.19.1000
