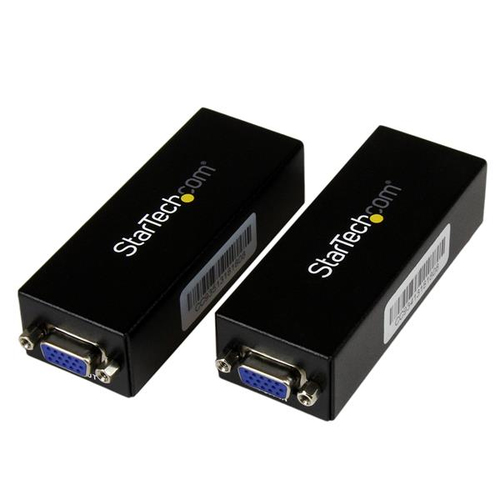

StarTech.com VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender

StarTech.com VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender

Name: StarTech.com VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender
Brand: StarTech.com
SKU: ST121UTPEP
Price: 187.05 EUR
Availability: InStock

Extend a VGA signal to a remote display using Cat5 cabling

The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5 or better UTP cable, terminated with RJ45 connectors).

Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.

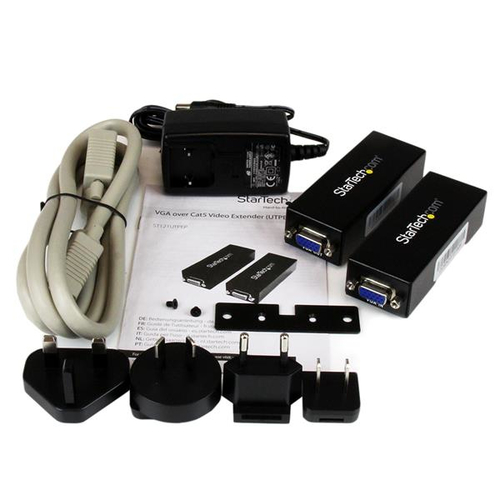

To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

7 IN STOCK

SKU: ST121UTPEP

Manufacturer: StarTech.com

RRP Price €187.05

Specifications

Features

Type

AV transmitter & receiver

Maximum resolution

1920 x 1200 pixels

Cable types supported

Cat5

Maximum transfer distance

80 m

Supported graphics resolutions

1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)

Material

Aluminium

Plug and Play

Yes

Daisy chain

Product colour

Black

Certification

CE, FCC, REACH, TAA

Ports & interfaces

RJ-45 input ports

RJ-45 output ports

VGA (D-Sub) input ports

VGA (D-Sub) output ports

DC-in jack

Yes

Power

Operating voltage

12 V

Output current

0.6 A

Power consumption (typical)

7.2 W

External power adapter

Yes

Power plug type

Type M

Weight & dimensions

Width

138 mm

Depth

100 mm

Height

25 mm

Weight

263 g

Packaging data

Package width

140 mm

Package depth

315 mm

Package height

60 mm

Package weight

795 g

Packaging content

AC adapter included

Yes

Cables included

VGA

Included power plug types

AU, EU, NA, UK

Manual

Yes

Mounting brackets included

Yes

Technical details

Compliance certificates

RoHS

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.263 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
