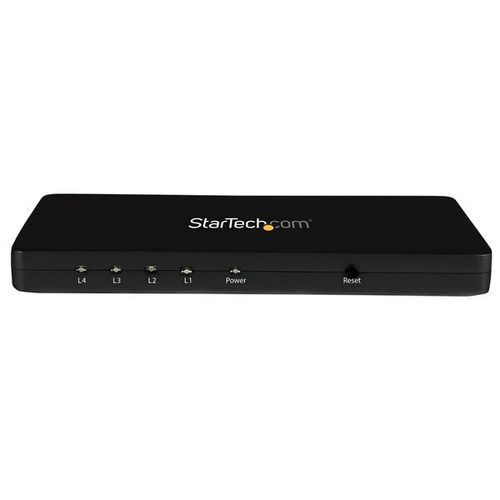

StarTech.com 4K HDMI 4-Port Video Splitter – 1x4 HDMI Splitter w/ Solid Aluminum Housing – 4K 30Hz

Split an HDMI audio/video source on four separate HDMI displays simultaneously, with support for resolutions up to 4K

The ST124HD4K 4-port 4K HDMI splitter lets you share four HDMI displays or projectors with an HDMI-enabled audio / video source devices, such as a computer, Blu-ray player or cable TV set-top box.

With support for Ultra HD (4K) the HDMI splitter ensures astonishing picture quality, four times the resolution of high-definition 1080p at 30 Hz. The 4K splitter is also backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices. Even if you don't require 4K video today, the ST124HD4K ensures you'll be ready to take advantage of tomorrow's display technology.

Save time while setting up your splitter with EDID emulation ensuring all of your native settings such as resolution and refresh rate are communicated between your video source and displays. EDID emulation maximizes compatibility with your 4K display, ensuring a convenient plug-and-play installation.

Constructed of solid aluminum, the HDMI splitter casing is heavy enough to prevent the unit from shifting or sliding around when you move the attached HDMI cables. Plus, the small footprint allows for seamless integration into any digital signage application.

The ST124HD4K is backed by a StarTech.com 2-year warranty, and free lifetime technical support.

The StarTech.com Advantage

ON ORDER

SKU: ST124HD4K

Manufacturer: StarTech.com StarTech.com

RRP Price €101.45

Specifications

Ports & interfaces

Video port type
HDMI
Video out
4x HDMI
HDMI version
1.4
Video ports quantity
4

Features

Product colour
Black
Housing material
Aluminium
Maximum resolution
3840 x 2160 pixels
Maximum operating distance
5 m
Maximum refresh rate
30 Hz
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Supported video modes
720p, 1080p, 2160p
LED indicators
Activity, Power
Certification
CE, FCC, REACH

Power

AC input voltage
100 - 240 V
Input current
0.35 A
Output voltage
5 V
Output current
1 A
Power consumption (typical)
5 W

Weight & dimensions

Width
85 mm
Depth
140 mm
Height
12 mm
Weight
280 g

Packaging data

Package width
300 mm
Package depth
360 mm
Package height
95 mm
Package weight
530 g

Packaging content

Manual
Yes
AC adapter included
Yes
Included power plug types
AU, EU, NA, UK

Operational conditions

Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
5 - 90%

Technical details

Audio support
Yes
Supported audio channels
7.1
Compliance certificates
RoHS

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
