APC Smart-UPS RT 3000VA 230V - Marine

High density, double-conversion on-line power protection with scalable runtime.

ON ORDER

SKU: SURTD3000XLIM

Manufacturer: APC APC

RRP Price €4,662.62

Specifications

Features

UPS topology
Double-conversion (Online)
Output power capacity
3 kVA
Output power
2100 W
Input operation voltage (min)
100 V
Input operation voltage (max)
280 V
Input frequency
50/60 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Surge energy rating
480 J
Efficiency
92%
Crest factor
3:1
Emergency Power Off (EPO)
Yes
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
55 dB

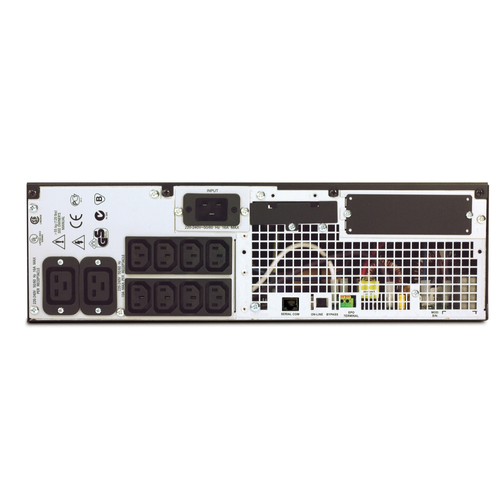

Ports & interfaces

AC outlet types
C13 coupler, C19 coupler
AC outlets quantity
10 AC outlet(s)
Number of output IEC jumpers
2
Ethernet LAN (RJ-45) ports
1

Battery

Battery technology
Sealed Lead Acid (VRLA)
Battery recharge time
2.5 h

Design

Form factor
Rackmount
Rack capacity
3U
Cable length
2.44 m
Product colour
Black
LED indicators
Yes

Operational conditions

Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m

Certificates

Compliance certificates
RoHS

Weight & dimensions

Width
130 mm
Depth
660 mm
Height
432 mm
Weight
54.5 kg

Packaging data

Package weight
63.6 kg

Logistics data

Harmonized System (HS) code
85078000

Other features

Dimensions (WxDxH)
130 x 660 x 432 mm
Nominal output voltage
230 V
Nominal input voltage
230 V
Package dimensions (WxDxH)
603 x 980 x 347 mm
