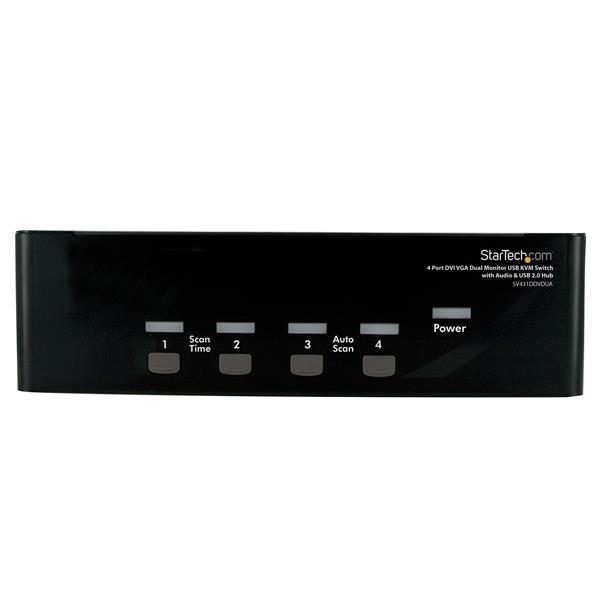

StarTech.com 4 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub

Name: StarTech.com 4 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub
Brand: StarTech.com
SKU: SV431DDVDUA
Price: 429.91 EUR
Availability: InStock

The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.

This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.

The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.

NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage
- High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- Absolutely no software or drivers required providing a completely OS independent KVM solution

2 IN STOCK

SKU: SV431DDVDUA

Manufacturer: StarTech.com

RRP Price €429.91

Specifications

Ports & interfaces

Number of computers controlled

Keyboard port type

USB

Mouse port type

USB

Video port type

VGA/DVI-I

DVI-I ports quantity

VGA (D-Sub) ports quantity

Console ports

3.5mm headphone, 3.5mm mic, DVI-I, USB A, VGA (D-Sub)

Console USB ports quantity

USB connector type

USB Type-A

Audio connections

Yes

Headphone outputs

Number of microphone inputs

DC-in jack

Yes

Performance

Maximum resolution

1920 x 1200 pixels

Daisy chain

Number of users

1 user(s)

Design

Product colour

Black

Housing material

Steel

LED indicators

Yes

Hot keys

Yes

Mean time between failures (MTBF)

140000 h

Certification

CE, FCC, UL, REACH

Display

Built-in display

On Screen Display (OSD)

Power

Input voltage

100 - 240 V

Input current

0.8 A

Output voltage

12 V

Output current

1.5 A

Power consumption (typical)

18 W

External power adapter

Yes

Power plug type

Type M

Compatible power plug types

AU, EU, UK, US

Sustainability

Compliance certificates

RoHS

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Weight & dimensions

Width

220 mm

Depth

163 mm

Height

60 mm

Weight

1.3 kg

Packaging data

Package width

295 mm

Package depth

249 mm

Package height

86 mm

Package weight

1.8 kg

Packaging content

Manual

Yes

AC adapter included

Yes

Rubber feet

Yes

Other features

IP control

Logistics data

Harmonized System (HS) code

85176200

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

1.3 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

Digitus CAT 5e, Class D, RJ45 Modular Coupler - 5 pieces Cables & Adaptors

- Quick and easy extention of patch cables- The RJ45 sockets are shielded which provides optimized safety- The coupler offers a long life time (mating cycles)The modular CAT5e Class D coupler from DIGITUS® consists of two shielded RJ45 female ports. The assignment is "1:1".

€6.57

Digitus Junction Box CAT 7 - 5 pieces Cables & Adaptors

The DIGITUS® Junction Box CAT 7 serves as a tool for connecting of shielded data cables. Use the Junction Box for an extension of your cabling or to replace broken cables by re-connecting without installing a whole new segment. For an easy and fast installation, the cable connector uses the established LSA technique with 45° tilt of the contacts.

€19.40

7FT (2.1M) CAT7 SNAGLESS SHIELDED (SFTP) PVC CM ETHERNET NETWORK PATCH CABLE, BLUE Cables & Adaptors

7FT (2.1M) CAT7 SNAGLESS SHIELDED (SFTP) PVC CM ETHERNET NETWORK PATCH CABLE, BLUE

€4.92

Eaton CBLMBP10BS power cable Black BS 1363 Cables & Adaptors

€91.26

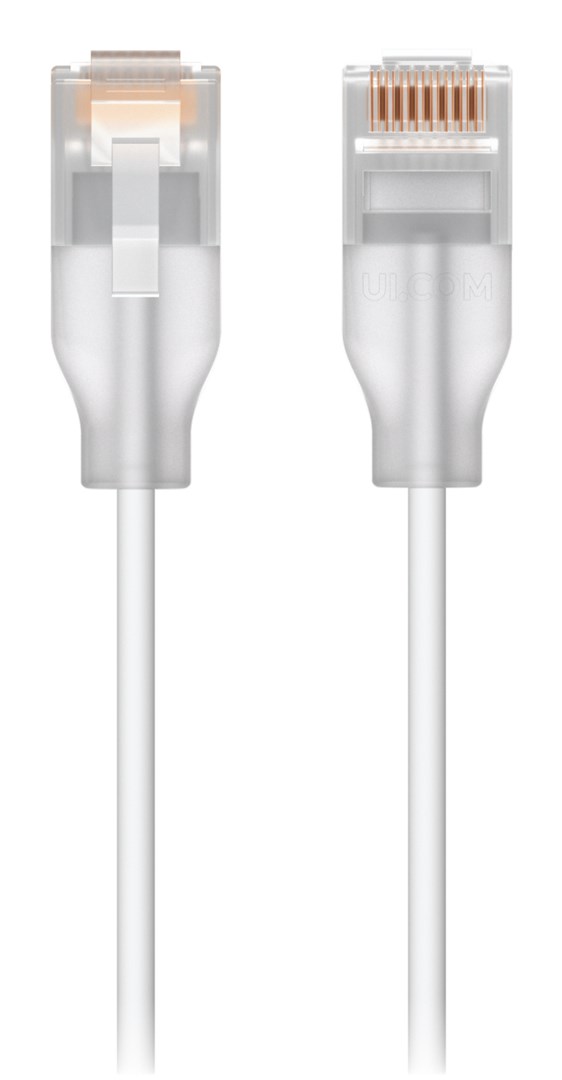

Ubiquiti UACC-Cable-Patch-EL-0.15M-W-24 networking cable Translucent, White Cat6 Cables & Adaptors

Nano-thin patch cable with a translucent boot designed to show Etherlighting™ effects when connected to Pro Max switching.

€79.13

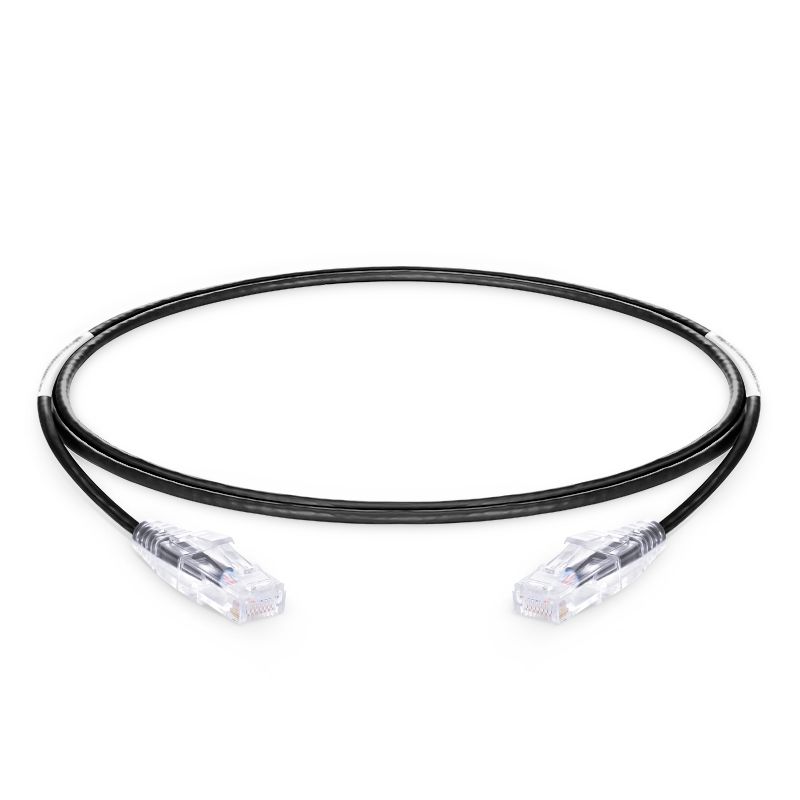

CAT6A 28AWG UTP CM PATCH CORD, SNAGLESS RJ45, BLACK, 10FT (3M) Cables & Adaptors
