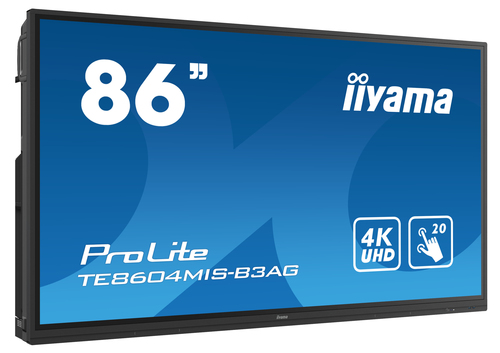

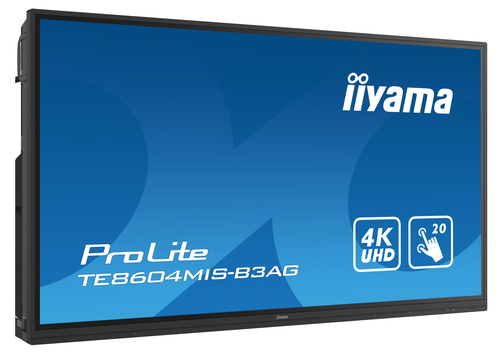

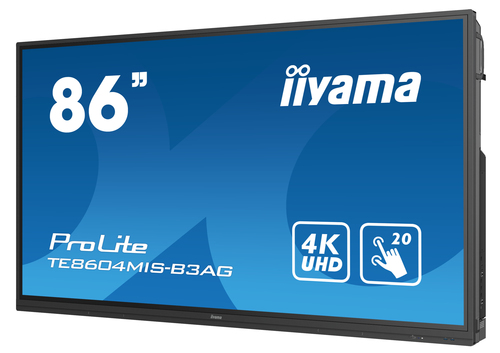

iiyama TE8604MIS-B3AG-REF Signage Display Interactive flat panel 2.17 m (85.6") LED Wi-Fi 400 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 9 24/7

ON ORDER

SKU: TE8604MIS-B3AG-REF

Manufacturer: iiyama iiyama

RRP Price €1,564.66

Specifications

Display

Panel type
IPS
LED backlight
Yes
LED backlighting type
Direct-LED
Display diagonal
2.17 m (85.6")
Display technology
LED
Display resolution
3840 x 2160 pixels
Display brightness
400 cd/m²
HD type
4K Ultra HD
Touchscreen
Yes
Touchscreen technology
PureTouch-IR
Number of simultaneous touchpoints
20
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
1200:1
Contrast ratio (dynamic)
3500:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.4935 x 0.4935 mm
Active display area (W x H)
1895 x 1066 mm
Display diagonal (metric)
217.4 cm
Horizontal scan range
30 - 135 kHz
Haze rate
28%
Surface hardness
7H

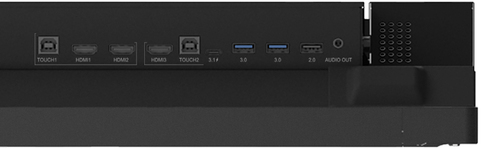

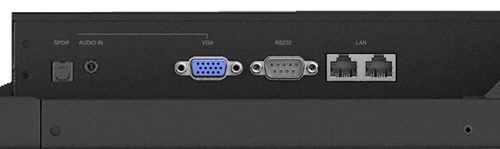

Ports & interfaces

HDMI ports quantity
3
HDMI version
2.0
HDMI input ports quantity
3
DVI port
No
VGA (D-Sub) input ports
1
USB port
Yes
USB ports quantity
6
USB version
2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Ethernet LAN data rates
1000 Mbit/s
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
PC Audio in
Yes
RS-232 interface
Yes
RS-232C
Yes
Infrared data port
Yes
Remote (IR) input
1

Audio

Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
32 W

Design

Product design
Interactive flat panel
Placement supported
Indoor
Orientation
Horizontal
Product colour
Black
Screen shape
Flat

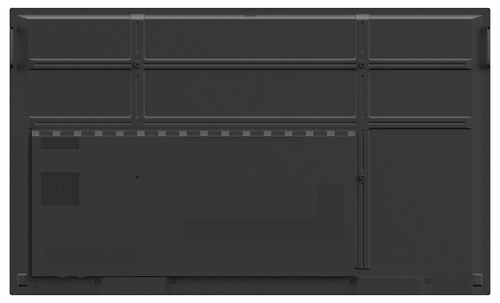

VESA mounting
Yes
Panel mounting interface
800 x 600 mm
Bezel width (bottom)
4.3 cm
Bezel width (side)
1.4 cm
Bezel width (top)
1.4 cm

Performance

Purpose
Universal
On Screen Display (OSD)
Yes
Number of OSD languages
9
On Screen Display (OSD) languages
Czech, German, Dutch, English, Spanish, French, Italian, Polish, Russian
Operating hours (hours/days)
24/7
HDCP
Yes
HDCP version
2.2
Mean time between failures (MTBF)
50000 h

Power

Power consumption (typical)
390 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
AC input voltage
100-240 V
AC input frequency
50 - 60 Hz

Computer system

Computer system
Yes
Computer system type
System on Chip (SoC)
Built-in processor
Yes
Processor manufacturer
ARM
Processor family
ARM Cortex
Processor model
A73
Processor architecture
ARM Cortex-A73
Processor cores
4
Internal memory
4 GB
On-board graphics card model
ARM Mali-G52
Internal storage capacity
32 GB
Operating system installed
Android 9
Windows operating systems supported
Yes

Weight & dimensions

Display width
1957 mm
Display depth
86 mm
Display height
1159 mm
Display weight
64.7 kg

Packaging data

Package width
2110 mm
Package depth
1283 mm
Package height
225 mm
Package weight
81.2 kg

Packaging content

Remote control included
Yes
Batteries included
Yes
Cables included
AC, HDMI, USB

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C

Logistics data

Quantity per pack
1 pc(s)
Harmonized System (HS) code
85285210

Technical details

Sustainability certificates
ErP
Compliance certificates
CE, REACH, RoHS, WEEE

Other features

User memory
32 GB
Maximum refresh rate
60 Hz
Audio output
1
Bluetooth
Yes
Bluetooth version
5.0
Mobile operating systems supported
Android, iOS
USB 2.0 ports quantity
4

Accessories

License
