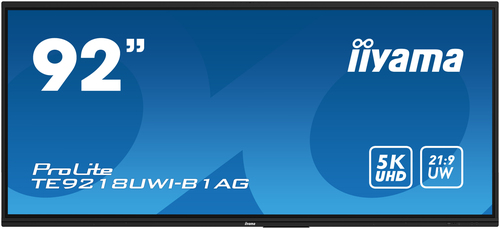

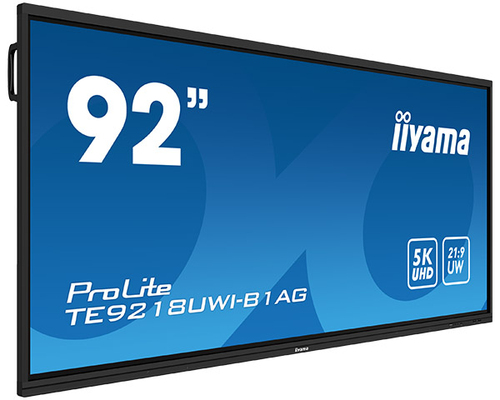

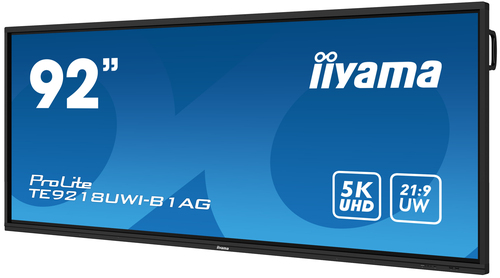

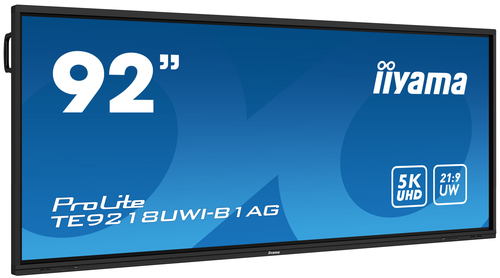

iiyama 92” Ultra-wide Interactive 5K UHD display with 21:9 panoramic view

The TE9218UWI-B1AG is a revolutionary 92" 5K UHD Interactive Touchscreen that brings a new level of collaboration and engagement to your workspace. Boasting cutting-edge technology and a host of impressive features and functionalities, this interactive display is designed to transform the way you work, communicate, and share ideas. Whether it's for boardrooms, classrooms, or collaborative meeting spaces, this 92" 21:9 Ultra-Wide interactive touchscreen is the ultimate tool to foster creativity, productivity, and seamless communication.

ON ORDER

SKU: TE9218UWI-B1AG

Manufacturer: iiyama iiyama

RRP Price €4,960.74

Specifications

Display

Panel type
VA
Display diagonal
2.32 m (91.5")
Display technology
LED
Display resolution
5120 x 2160 pixels
Display brightness
500 cd/m²
HD type
5K Ultra HD
Touchscreen
Yes
Touchscreen technology
PureTouch-IR
Number of simultaneous touchpoints
50
Native aspect ratio
21:9
Response time
6.5 ms
Contrast ratio (typical)
4000:1
Contrast ratio (dynamic)
5000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.418 x 0.418 mm
Active display area (W x H)
2142 x 903.6 mm
Display diagonal (metric)
232.5 cm
Horizontal scan range
30 - 135 kHz
Native refresh rate
60 Hz
Surface hardness
7H
Glass thickness
3 mm

Ports & interfaces

HDMI ports quantity
5
HDMI version
2.0/2.1
HDMI input ports quantity
1
HDMI output ports quantity
1
DVI port
No
DisplayPorts quantity
1
DisplayPorts in
1
USB port
Yes
USB ports quantity
8
USB version
3.2 Gen 1 (3.1 Gen 1)
USB connector type
USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
100 W
USB Type-C DisplayPort Alternate Mode
Yes
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
2
Ethernet LAN data rates
1000 Mbit/s
Wi-Fi
Yes
Audio (L/R) in
1
Audio (L/R) out
4
Microphone in
Yes
RS-232C
Yes
OPS module slot
Yes

Audio

Built-in speaker(s)
Yes
Number of built-in speakers
2
RMS rated power
60 W

Design

Product design
Interactive flat panel
Placement supported
Indoor
Orientation
Horizontal
Product colour
Black

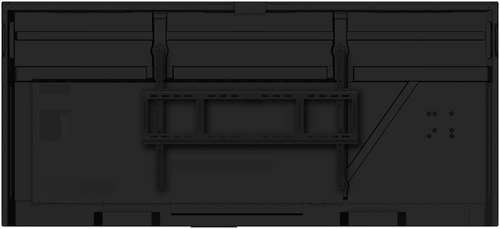

VESA mounting
Yes
Panel mounting interface
800 x 600 mm
Bezel colour
Black
Anti-glare screen
Yes

Performance

Purpose
Universal
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Czech, German, English, Spanish, French, Italian, Polish, Russian
Operating hours (hours/days)
16/7
HDCP
Yes
HDCP version
2.3
Mean time between failures (MTBF)
50000 h

Power

Power consumption (typical)
227 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
Energy consumption (SDR) per 1000 hours
227 kWh
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G

Computer system

Computer system
No
Built-in processor
Yes
Processor manufacturer
ARM
Processor architecture
ARM Cortex-A76+Cortex-A55
Internal memory
8 GB
On-board graphics card model
ARM Mali-G610 MP4
Internal storage capacity
64 GB
Operating system installed
Android
Operating system version
13

Weight & dimensions

Display width
2203 mm
Display depth
92 mm
Display height
1000 mm
Display weight
67.6 kg

Packaging data

Package width
2360 mm
Package depth
2360 mm
Package height
225 mm
Package weight
88.5 kg

Packaging content

Remote control included
Yes
Batteries included
Yes
Stylus pen
Yes
Number of stylus pens
4

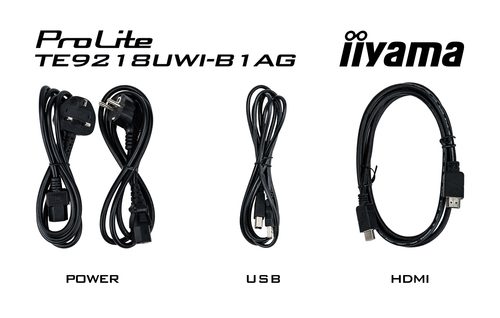

Cables included
HDMI, Power, USB
Mounting kit
Yes
Wi-Fi module included
Yes

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C

Certificates

Certification
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS)
