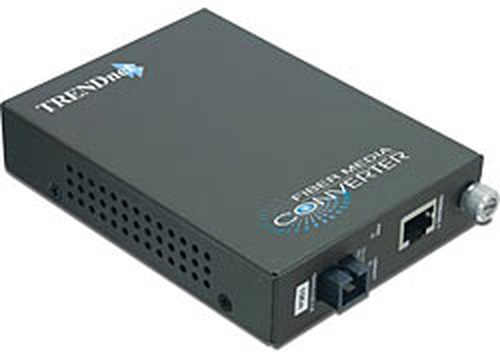

Trendnet TFC-1000S40D5 network media converter 2000 Mbit/s 1310 nm Single-mode Grey

The TFC-1000S40D5 Bi-Directional Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Dual Wavelength Single Mode SC-Type fiber converter that supports port-based SNMP reporting and spans distances up to 40 km (24.85 miles). This module must be used with the TFC-1000S40D3 module. Ports include 1 x 1000Base-T (RJ-45) port and 1 x 1000Base-LX (SC Simplex Type) port.

ON ORDER

SKU: TFC-1000S40D5

Manufacturer: Trendnet Trendnet

RRP Price €813.49

Specifications

Network

Maximum data transfer rate
2000 Mbit/s
Converter input interface
1000Base-T
Converter output interface
1000Base-LX
Networking standards
IEEE 802.3ab, IEEE 802.3z
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
1000 Mbit/s
Duplex system
Full

Performance

Maximum transfer distance
40000 m
Wavelength
1310 nm
Fiber mode structure
Single-mode

Features

Internal
No
LED indicators
Yes
Product colour
Grey

Ports & interfaces

Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber optic connector
SC

Power

Input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
2.7 W
External power adapter
Yes

Weight & dimensions

Weight
354 g

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-25 - 70 °C

Certificates

Certification
FCC,CE

Logistics data

Harmonized System (HS) code
85176990

Other features

Dimensions (WxDxH)
120 x 88 x 25 mm

Accessories
