Trendnet TI-PG50F network switch Unmanaged Power over Ethernet (PoE) Black

TRENDnet’s Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series are well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

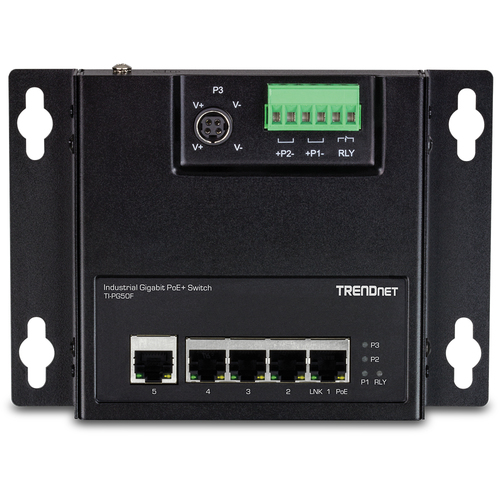

Wall-Mounted Front Access Switch
The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It’s flat and compact size make it ideal for cabinet installations where space is limited.

PoE+ Power
A 120W PoE power budget supplies PoE power from the hardened industrial front access switch to up to five Power over Ethernet devices.

Hardened Industrial Design
Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

Network Ports
4 x Gigabit PoE+ ports and 1 x Gigabit port

PoE Power
Supplies up to 30W of PoE+ power per port with a 120W power budget

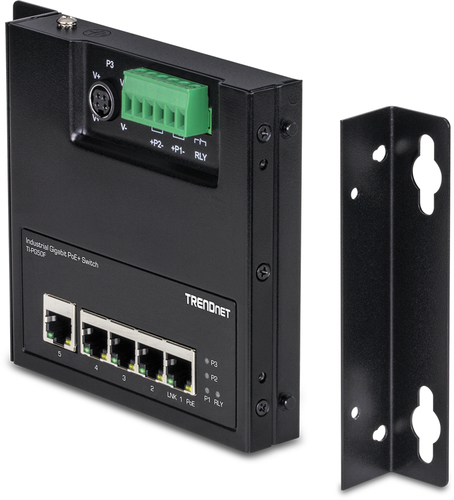

Hardware Design
Wall mountable hardware design provides front access to ports and power interfaces for easier installation

Compact
The flat and compact size makes the front access switch ideal for cabinet installations where space is limited

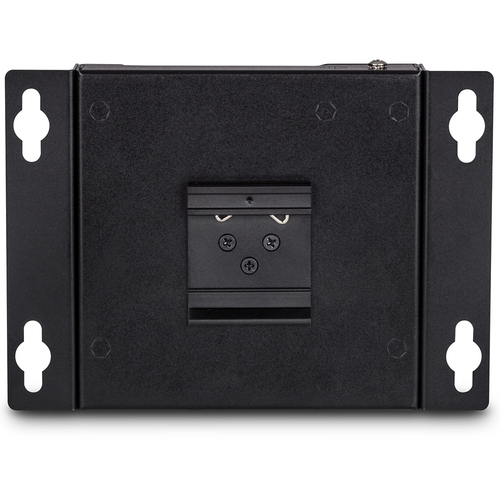

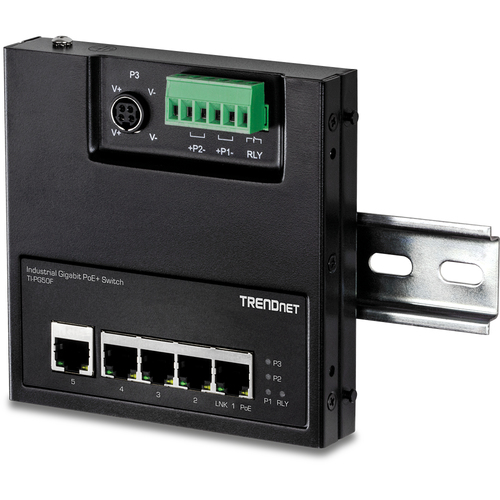

DIN-Rail Mount
Includes DIN-Rail mounting bracket

Switching Capacity
16Gbps switching capacity

Redundant Power
Dual redundant power inputs with overload current protection (power supply sold separately: TI-S12048, TI-S24048, and 48VDC3000)

Alarm Relay
Alarm relay output triggered by power failure of primary or secondary power inputs

Jumbo Frames
Sends larger packets, or jumbo frames (up to 9KB), for increased performance

Wide Temperature Range
Hardened industrial housing offers a wide operating temperature range of -40° – 75° C (-40° – 167° F), allowing for installations in extreme hot and cold environments

Shock and Vibration Resistant
Hardened design rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6) for industrial settings

Grounding Point
Grounding point protects equipment from external electrical surges

LED Indicators
Front access switch with LED indicators that convey power and port status

ON ORDER

SKU: TI-PG50F

Manufacturer: Trendnet Trendnet

RRP Price €184.50

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Port mirroring
Yes

Data transmission

Switching capacity
10 Gbit/s
Forwarding rate
7.44 Mpps
MAC address table
2000 entries
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
64 MB

Security

MAC address filtering
Yes

Design

Rack mounting
No
Stackable
No
Product colour
Black

Performance

Mean time between failures (MTBF)
454556 h

Power

AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
2 A

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Total Power over Ethernet (PoE) budget
200 W

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Storage relative humidity (H-H)
0 - 95%

Weight & dimensions

Width
118 mm
Depth
23.5 mm
Height
118 mm
Weight
425 g

Packaging content

Quick start guide
No
Rack mount kit
Yes

Certificates

Certification
CE FCC UL Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6)

Logistics data

Harmonized System (HS) code
85176990
