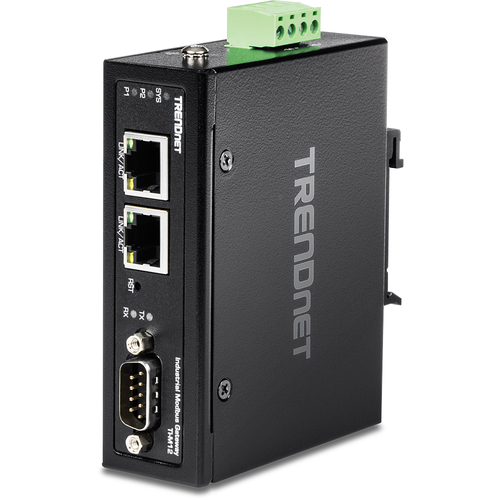

Trendnet TI-M12 gateway/controller 10, 100 Mbit/s

TRENDnet’s Industrial Modbus Gateway, model TI-M12, provides one port serial connection and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling. This industrial modbus gateway allows users to connect a modbus serial device to a network.

ON ORDER

SKU: TI-M12

Manufacturer: Trendnet Trendnet

RRP Price €183.17

Specifications

Design

Product colour
Black
Enclosure material
Metal
Mounting type
DIN-rail
LED indicators
Yes
International Protection (IP) code
IP30

Features

Mean time between failures (MTBF)
521243 h

Protocols

DHCP server
Yes

Network

Ethernet LAN data rates
10,100 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Wi-Fi
No
Flow control support
Yes
Full duplex
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
2
Serial interface type
RS-232

Power

Power consumption (max)
3.84 W
Input voltage
12 - 56 V

Weight & dimensions

Width
31 mm
Depth
80 mm
Height
103 mm
Weight
154 g

Packaging content

Quick installation guide
Yes

Operational conditions

Operating temperature (T-T)
-40 - 75 °C

Sustainability

Sustainability compliance
Yes

Certificates

Compliance certificates
CE
Certification
FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
