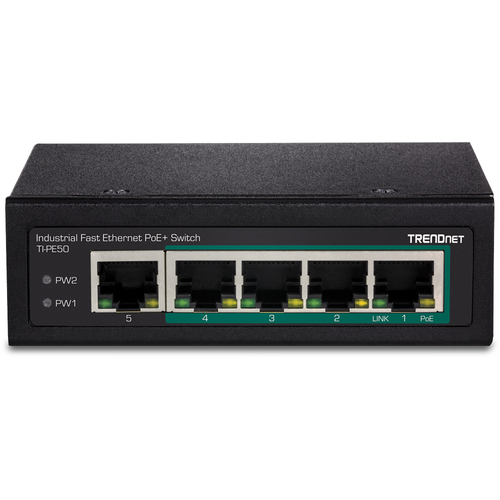

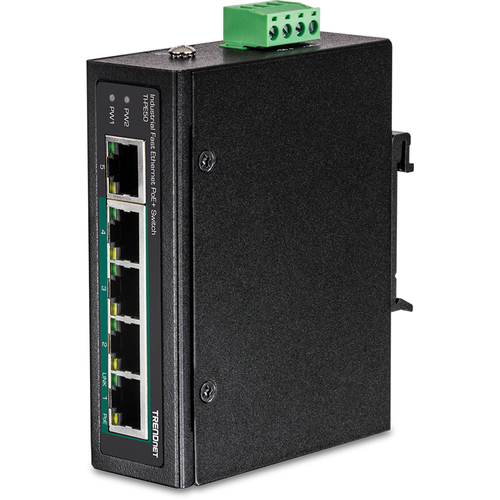

Trendnet TI-PE50 network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

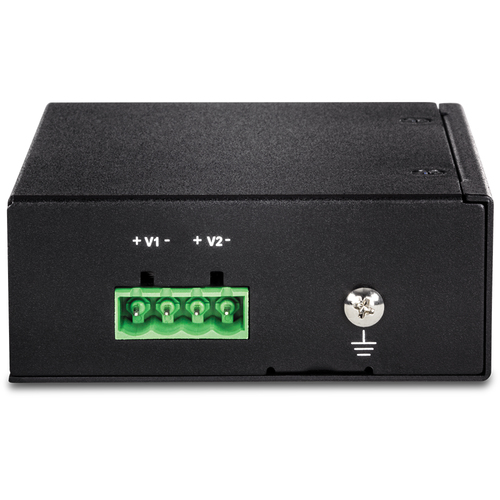

TRENDnet’s Industrial Fast Ethernet PoE+ DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial unmanaged PoE+ switches are designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection on each industrial unmanaged PoE+ switch minimizes network downtime.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Fast Ethernet Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

ON ORDER

SKU: TI-PE50

Manufacturer: Trendnet Trendnet

RRP Price €97.69

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity
5

Network

Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX
Full duplex
Yes
Auto-negotiation
Yes
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes

Data transmission

Switching capacity
1 Gbit/s
Forwarding rate
0.1488 Mpps
MAC address table
1024 entries
Store-and-forward
Yes

Design

Rack mounting
No
Product colour
Black
Housing material
Metal
LED indicators
Yes
International Protection (IP) code
IP30
Wall mountable
Yes
DIN rail mounting
Yes

Performance

Mean time between failures (MTBF)
708903 h

Power

Redundant power supply (RPS) support
Yes
DC input voltage
48 - 56 V
Power consumption (max)
2.24 W
Power protection features
Overload

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Total Power over Ethernet (PoE) budget
90 W

Operational conditions

Operating temperature (T-T)
-40 - 75 °C

Weight & dimensions

Width
103 mm
Depth
82 mm
Height
31 mm
Weight
160 g

Packaging content

Quick start guide
Yes

Certificates

Certification
CE, FCC

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
