StarTech.com 2x1 HDMI + VGA to HDMI Converter Switch w/ Automatic and Priority Switching – 1080p

StarTech.com 2x1 HDMI + VGA to HDMI Converter Switch w/ Automatic and Priority Switching – 1080p

Name: StarTech.com 2x1 HDMI + VGA to HDMI Converter Switch w/ Automatic and Priority Switching – 1080p
Brand: StarTech.com
SKU: VS221VGA2HD
Price: 124.80 EUR
Availability: InStock

Share an HDMI display/projector between a VGA and HDMI audio/video source, with automatic and priority switching

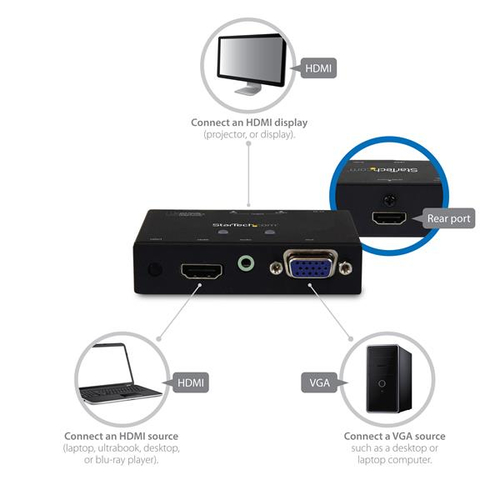

The VS221VGA2HD HDMI & VGA Auto Switch lets you connect an HDMI and a VGA audio/video source to the same HDMI display or projector, and automatically or manually switch between which video source is displayed. The multi-input A/V switch supports video resolution up to 1920x1200 (1080p) and includes mounting hardware for a tidy professional installation.

One Switch for VGA and HDMI

The A/V switch features built-in VGA conversion, enabling you to connect an HDMI and a VGA video source to the same HDMI display without the use of additional adapters or scalers.

Effortless Control

The VS221VGA2HD ensures hassle-free operation with two different auto switching modes: automatic switching that detects and selects a newly connected device, as well as priority selection which lets you choose which port should be activated by default for automatic switching.

Focus on the Presentation, Not Boardroom Connections

This A/V switch has been designed with the boardroom and classroom in mind: the VS221VGA2HD features VGA and HDMI inputs to support a wide range of devices, and the built-in converter makes it easy to connect to the room’s display without the use of additional adapters. Plus, automatic switching encourages on-the-fly collaboration among students or co-workers, by making it easy to share your projector between multiple source devices.

If you are looking for a similar device with VS221HD2VGA" text="VGA output, please see our VS221HD2VGA" text="VS221HD2VGA.

The VS221VGA2HD is backed by a StarTech.com 2-year warranty, and free lifetime technical support.

The StarTech.com Advantage

- Effortless switching with automatic and priority switching
- Allow your presenters / guest to focus on the presentation or lesson without the worry of connecting to an available display or projector

1 IN STOCK

SKU: VS221VGA2HD

Manufacturer: StarTech.com

RRP Price €124.80

Specifications

Ports & interfaces

Video port type

HDMI/VGA

HDMI in

Number of HDMI outputs

VGA (D-Sub) ports quantity

DC-in jack

Yes

Features

Product colour

Black

Rack mounting

Yes

Supported graphics resolutions

1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)

Supported video modes

1080p

LED indicators

Yes

Maximum resolution

1290 x 1200 pixels

External power adapter

Yes

Audio output channels

7.1 channels

Power

AC adapter input voltage

100 - 240 V

AC adapter input current

0.4 A

AC adapter output voltage

5 V

AC adapter output current

1 A

Power requirements

100 - 240 VAC, 0.4 A / 5 VDC, 2 A

Certificates

Certification

CE, FCC

Weight & dimensions

Weight

225 g

Dimensions (WxDxH)

54 x 102 x 29 mm

Packaging data

Package width

236 mm

Package depth

157 mm

Package height

64 mm

Package weight

657 g

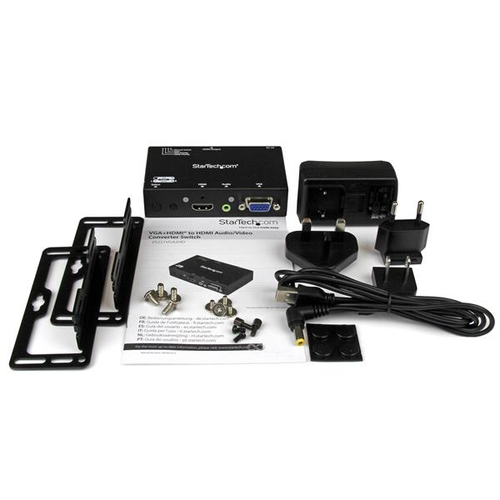

Packaging content

Manual

Yes

AC adapter included

Yes

Mounting brackets included

Yes

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Technical details

Audio support

Yes

Compliance certificates

RoHS

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.225 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
