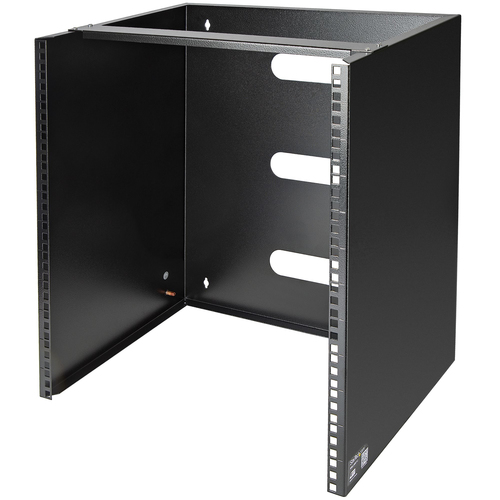

StarTech.com 12U Wall Mount Network Rack - 14 Inch Deep (Low Profile) - 19" Patch Panel Bracket for Shallow Server and IT Equipment, Network Switches - 125lbs/57kg Weight Capacity, Black

Mount equipment that is up to 13.75 inches deep, such as patch panels or network switches, to your wall

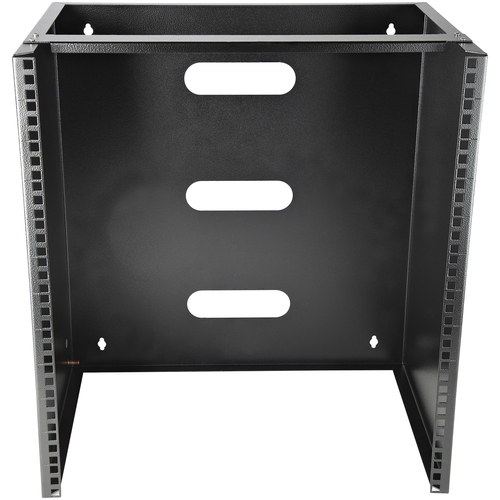

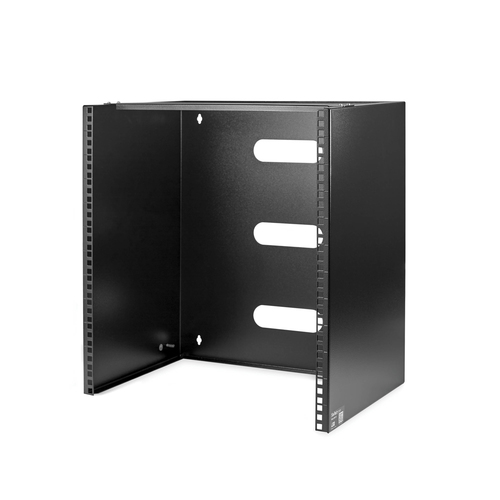

This wall-mount bracket provides 12U of space for mounting shallow rack-mount equipment that's 13.75 in. (34.93 cm) deep or less to the wall, such as patch panels or network switches.

Improve efficiency and accessibility in your workspace

The 12U rack optimizes your working space by efficiently mounting your shallow equipment on your wall instead of taking up desk space or other usable surface areas. It's the perfect solution for your space-limited SoHo (small office, home office) environment or server room because it doesn't take up any floor space.

Ensure a secure and hassle-free installation

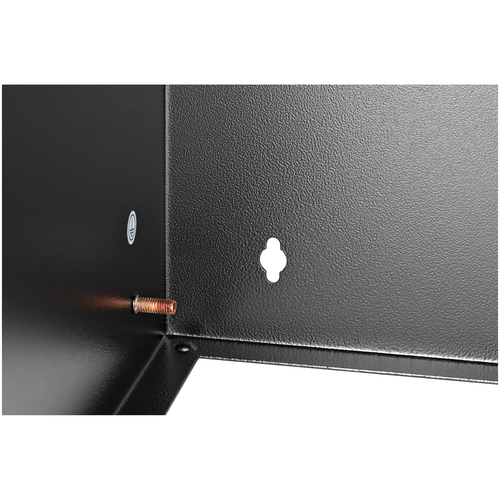

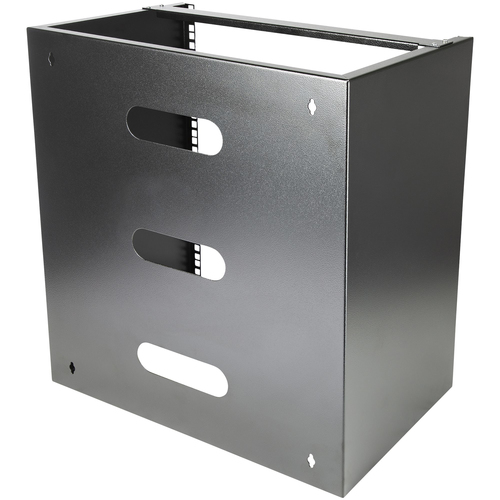

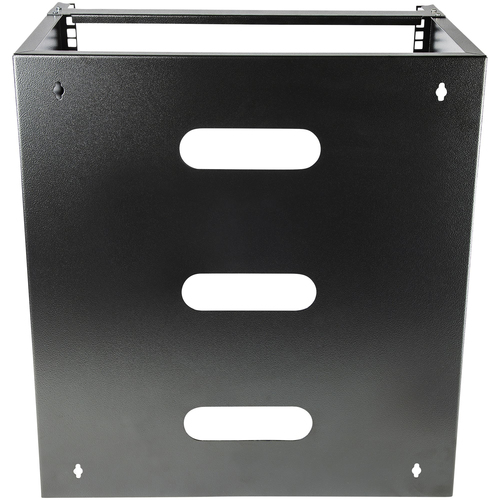

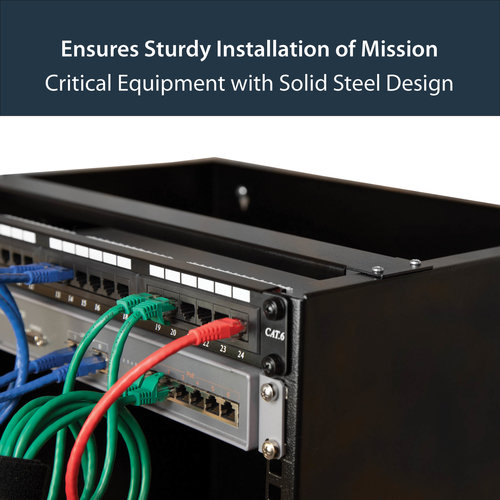

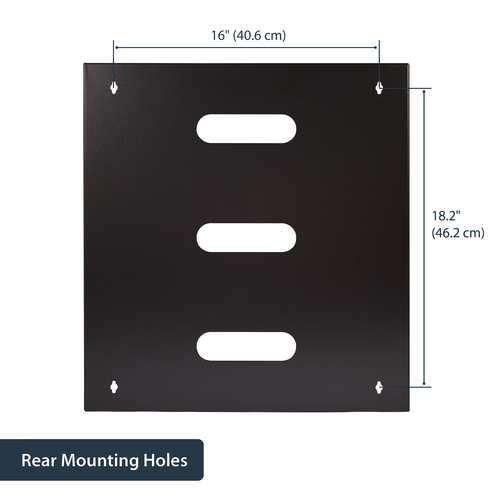

The wall rack is constructed of solid steel to ensure a sturdy and safe mounting solution for your mission-critical equipment. Also, because the wall-mount rack's mounting holes are positioned 16 in. apart, it exactly matches standard drywall construction framework to ensure simple and secure wall-stud anchoring. The rack also features a rear access panel that can be used to easily run cabling into the rack.

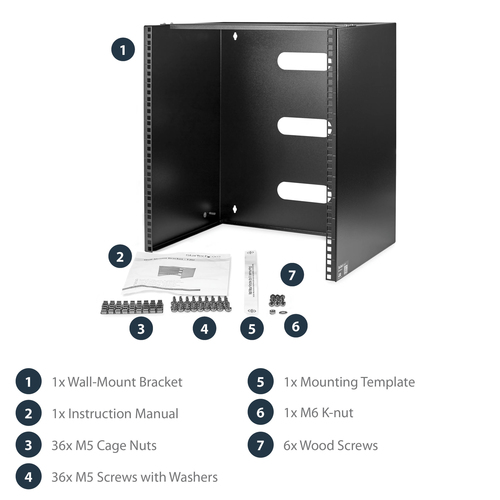

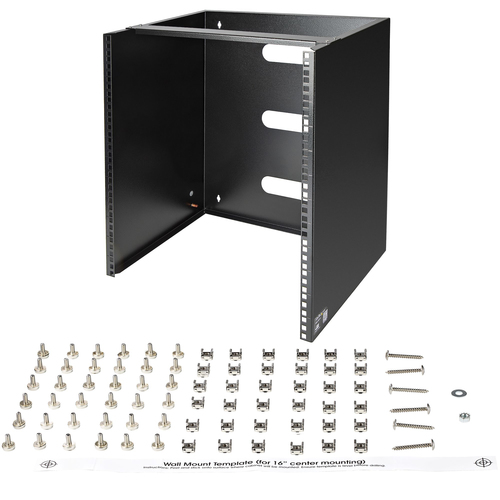

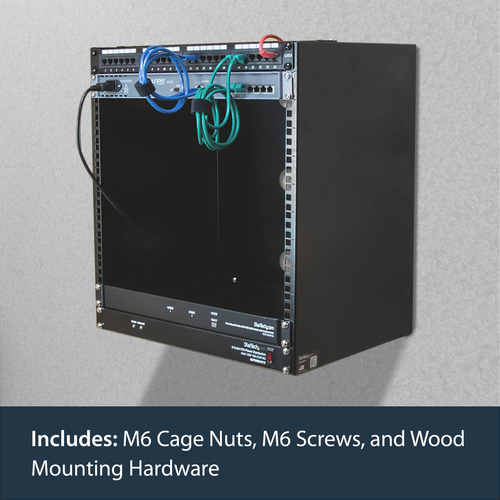

Cage nuts and screws are included with the wall-mount bracket, to save you the hassle of sourcing separate mounting hardware.

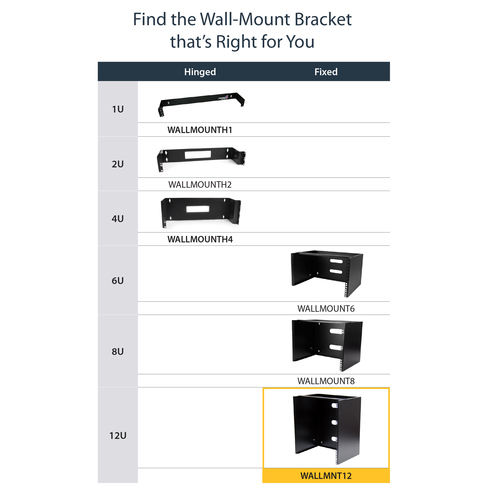

If you're looking for a shallow mounting solution with fewer rack units, StarTech.com also offers a 6U wall-mount bracket, and an 8U wall-mount bracket.

The WALLMNT12 is backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

ON ORDER

SKU: WALLMNT12

Manufacturer: StarTech.com StarTech.com

RRP Price €196.10

Specifications

Features

Rack capacity
12U
Type
Wall mounted rack
Maximum weight capacity
56.7 kg
Product colour
Black
Material
Steel
Frame type
Open
Product design
2-post
Adjustable mounting rails
No
Number of fans
0 fan(s)
Cable management
No

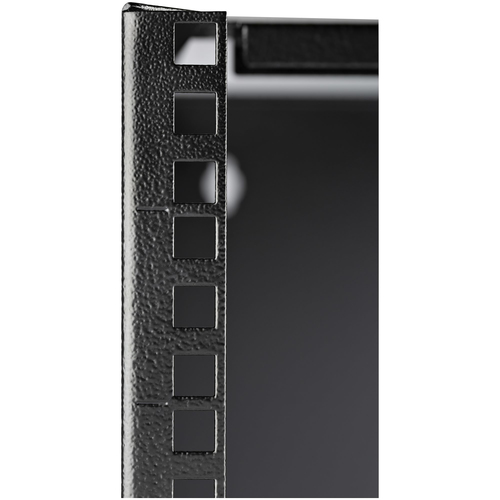

Mounting hole shape
Square
Castor wheels
No
Certification
CE, REACH

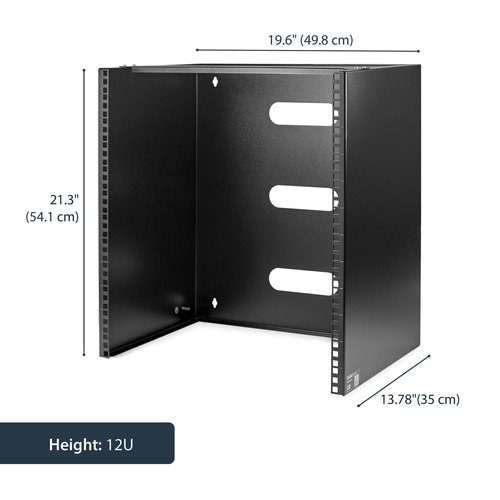

Weight & dimensions

Width
499 mm
Depth
350 mm
Height
541 mm
Weight
8.7 kg
Mounting depth (max)
34.9 cm

Packaging data

Nuts included
Yes
Number of nuts
37
Screws included
Yes
Number of screws
42
Mounting kit
Yes
Manual
Yes
Package width
383 mm
Package depth
530 mm
Package height
567 mm
Package weight
11 kg

Technical details

Compliance certificates
RoHS

Logistics data

Harmonized System (HS) code
85381000
Master (outer) case width
383 mm
Master (outer) case length
530 mm
Master (outer) case height
567 mm
Products per master (outer) case
1 pc(s)

Other features

Compliance industry standards
EIA/ECA-310-E
