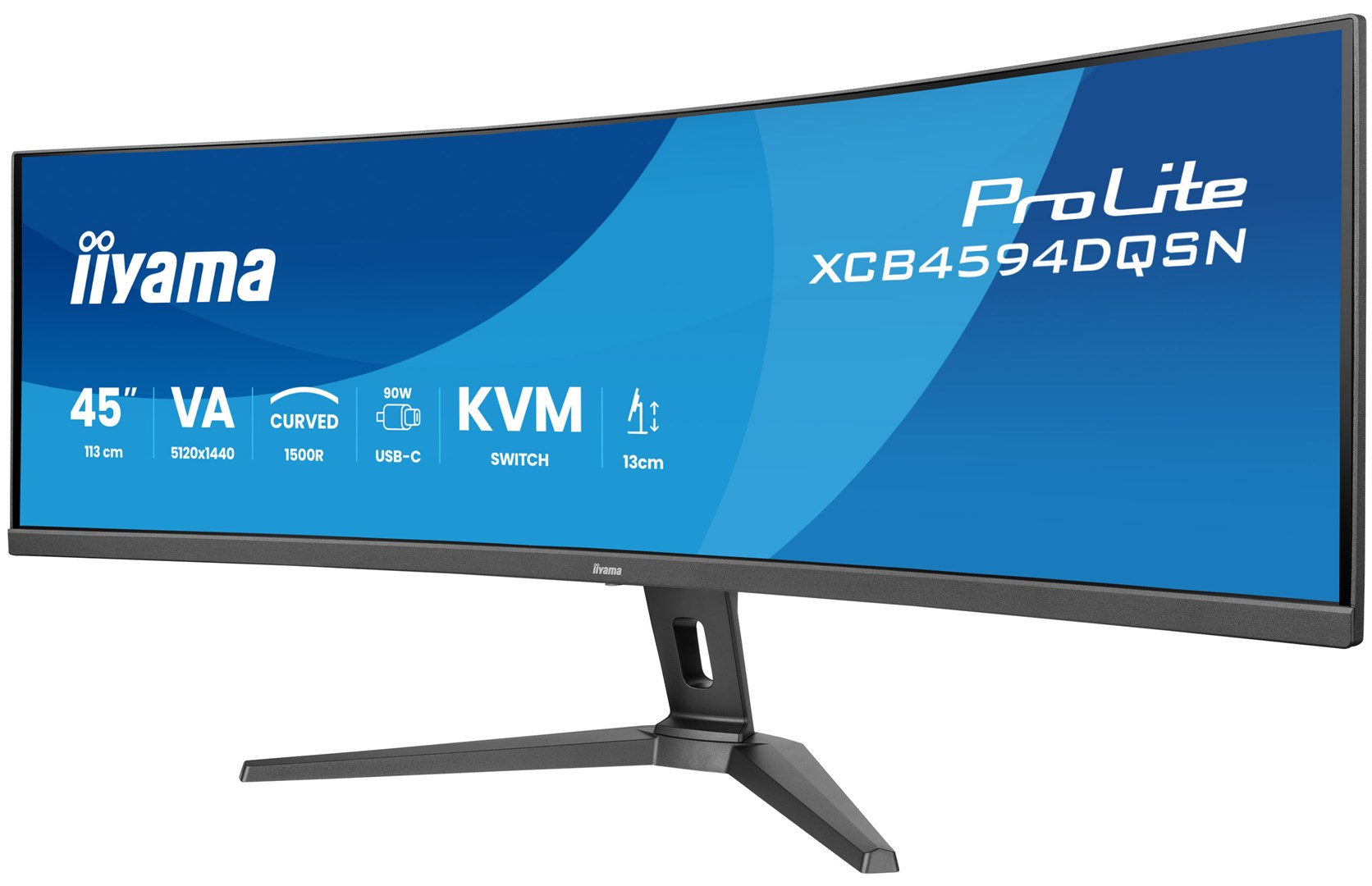

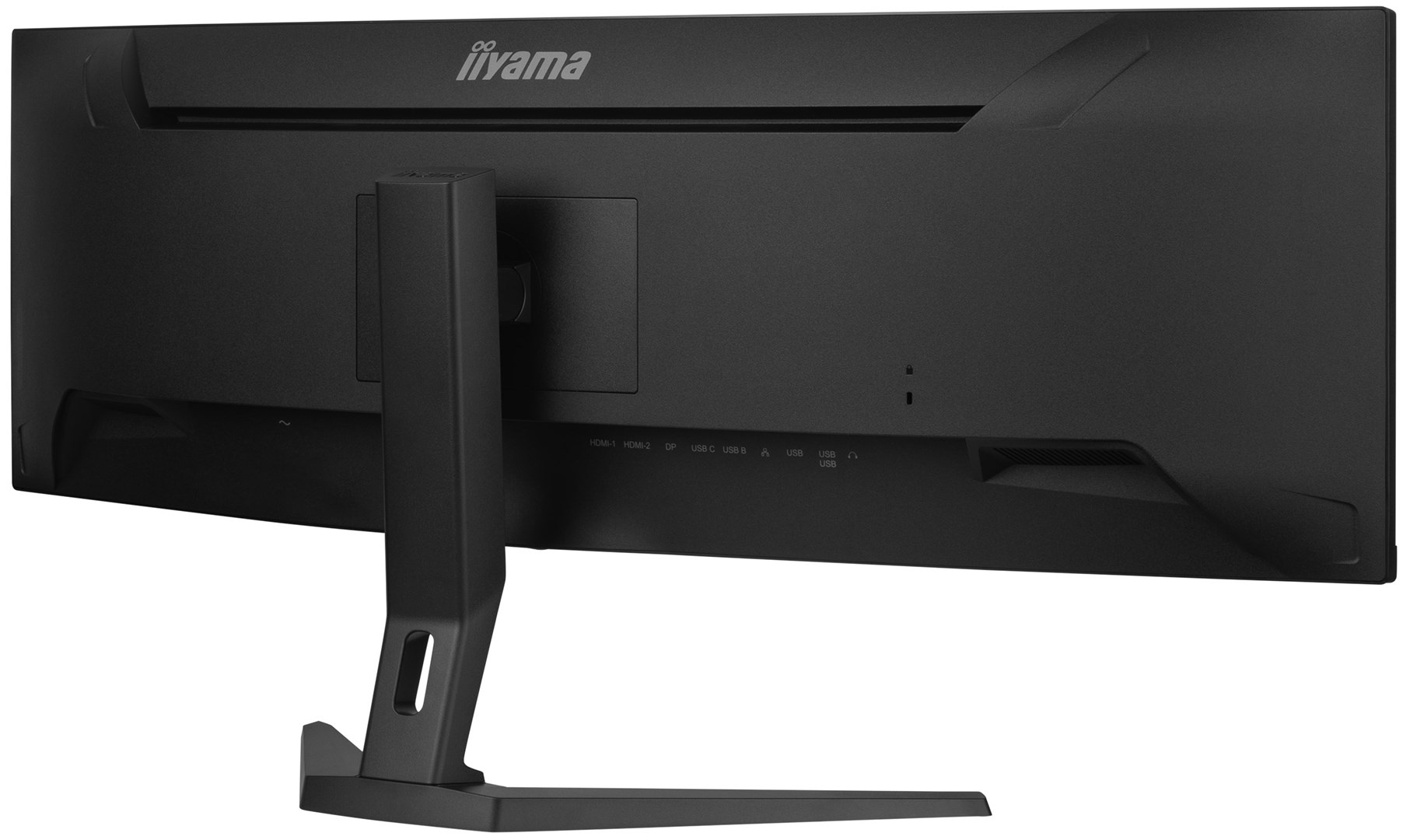

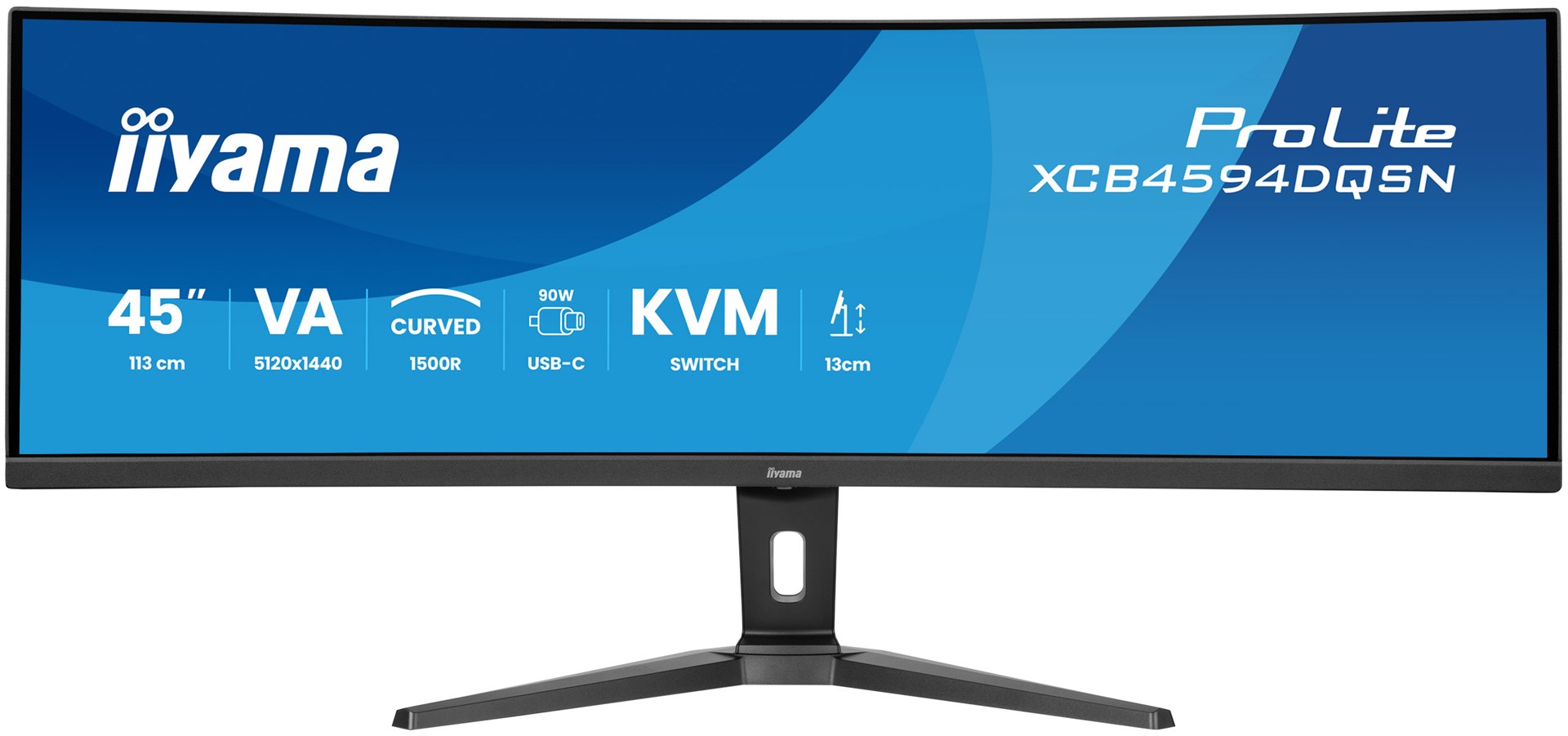

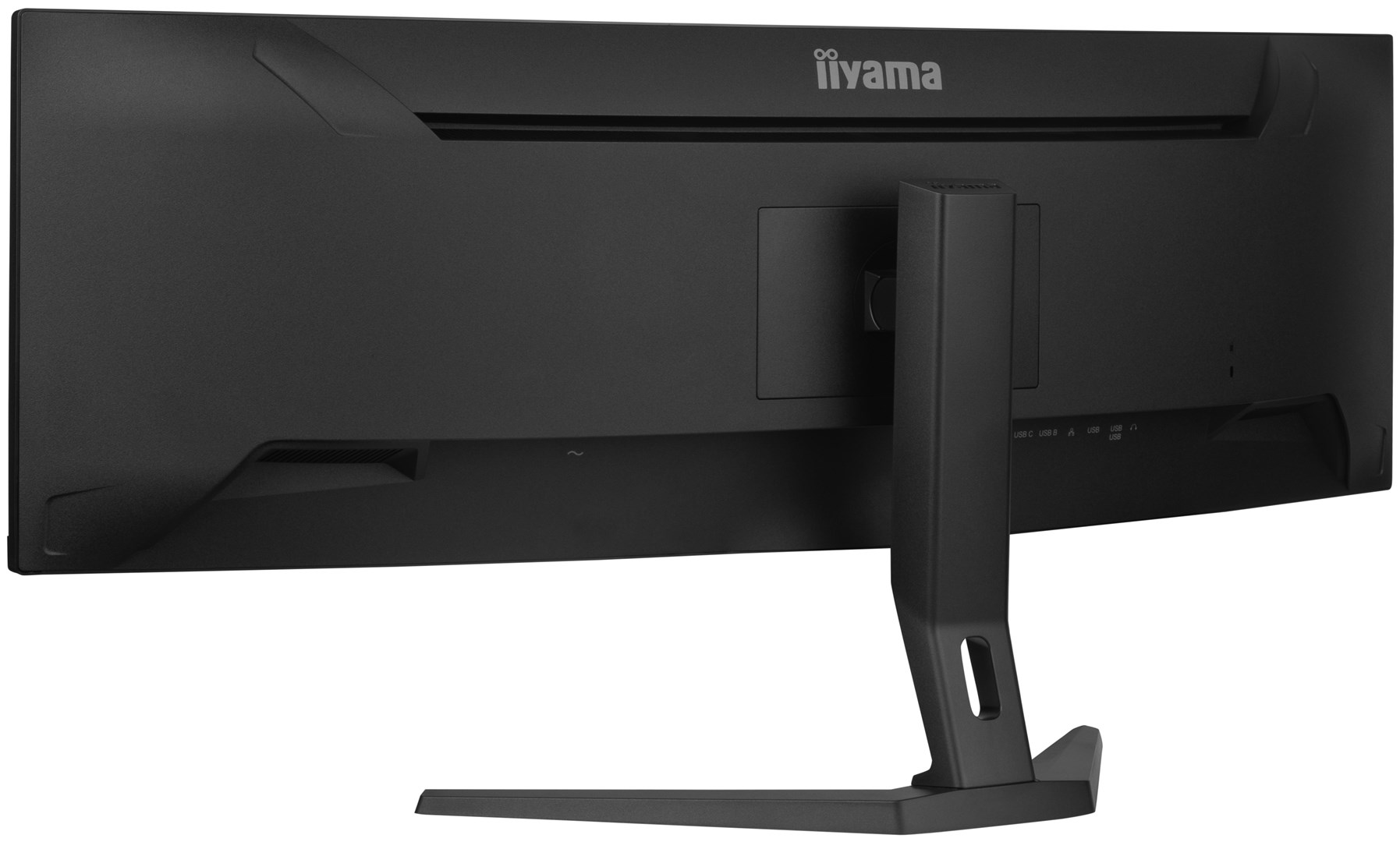

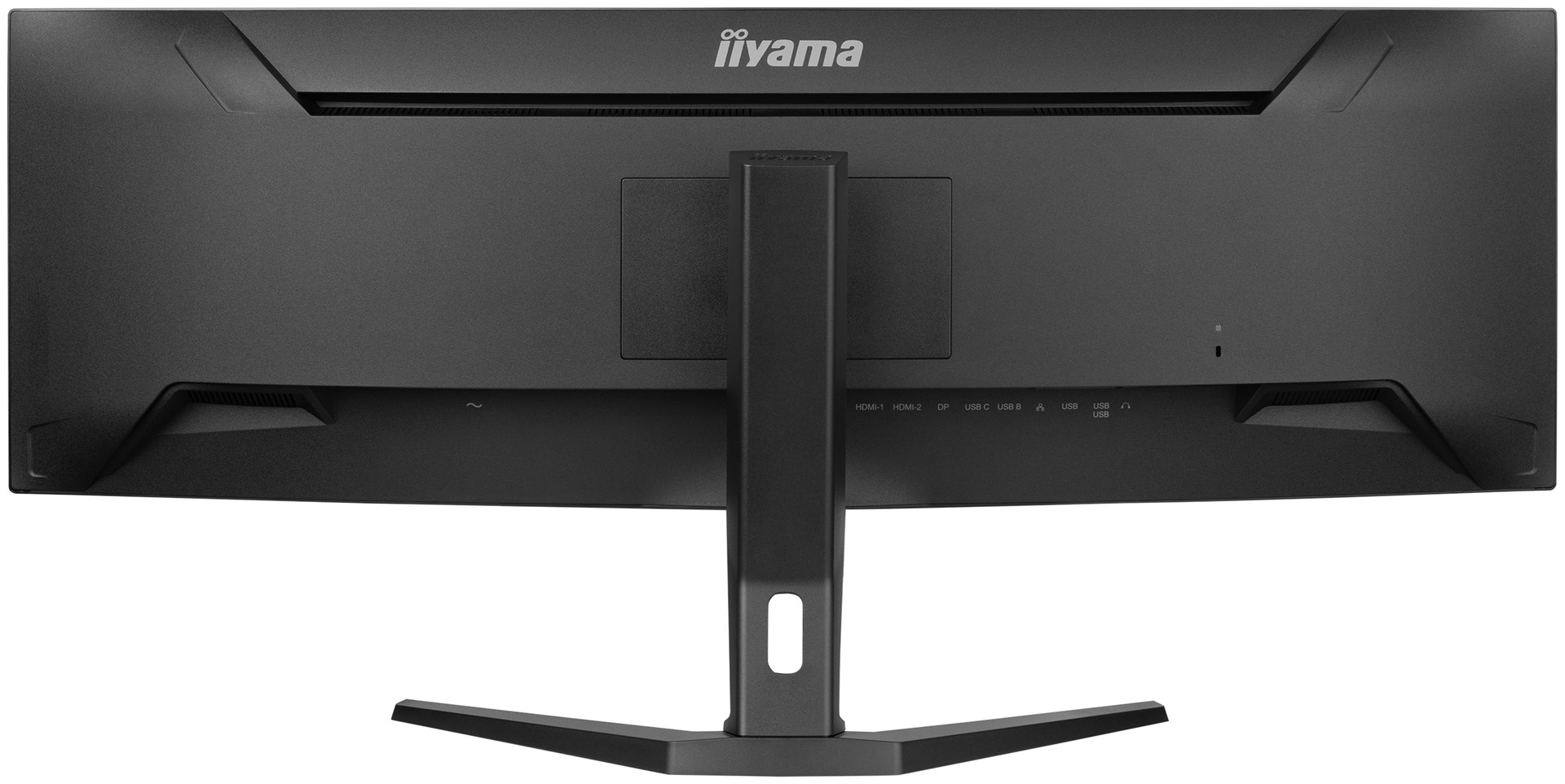

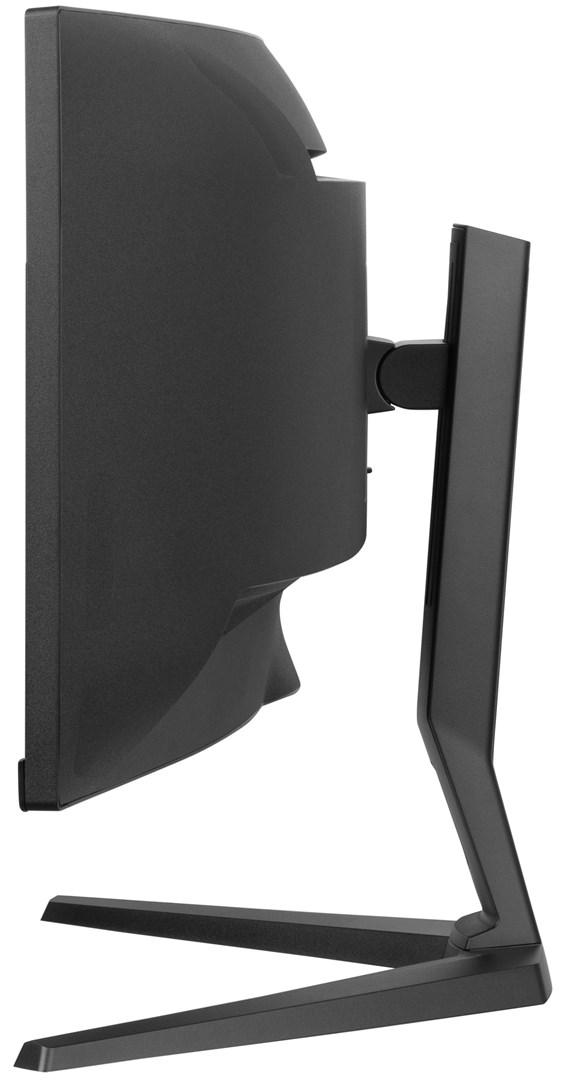

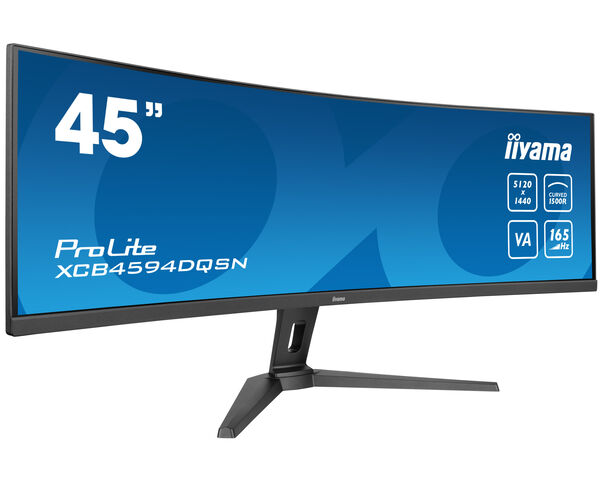

iiyama G-MASTER 45’’ Dual QHD VA panel with KVM switch, USB-C dock and RJ45 (LAN) and height adjustable stand

The XCB4594DQSN features a 1500R curved VA panel with a 165Hz refresh rate, 0.8ms MPRT, and a 5120x1440 (DQHD) resolution for superb image quality. The KVM switch allows you to connect multiple computers that can be operated over one console (monitor, keyboard, mouse). The USB-C dock simplifies setup with one cable for laptop signal transmission, power, and charging. Connecting to the Internet via LAN automatically links your notebook to the network. The VA panel ensures expansive viewing angles and vivid colours, and the 1500R curvature minimizes eye strain for a lifelike and fully immersive gaming experience. The dual QHD resolution provides sharp visuals, and the height-adjustable stand adds a comfortable and highly ergonomic experience.

15 IN STOCK

SKU: XCB4594DQSN-B1

Manufacturer: iiyama iiyama

RRP Price €887.40

Specifications

Display

Display diagonal
113 cm (44.5")
Display resolution
5120 x 1440 pixels
HD type
Dual QHD
Native aspect ratio
32:9
Display technology
LED
Panel type
VA
Backlight type
LED
Touchscreen
No
Display brightness (typical)
450 cd/m²
Response time
0.8 ms
Response time (MPRT)
0.8 ms
Display surface
Matt
Screen shape
Curved
Screen curvature rating
1500R
Contrast ratio (typical)
3000:1
Contrast ratio (dynamic)
80000000:1
Maximum refresh rate
165 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.212 x 0.212 mm
Horizontal scan range
30 - 260 kHz
Viewable size, horizontal
108.8 cm
Viewable size, vertical
30.6 cm
Digital horizontal frequency
30 - 260 kHz
Display diagonal (metric)
113 cm
High Dynamic Range (HDR) supported
Yes
High Dynamic Range (HDR) technology
High Dynamic Range (HDR) 400
DDC/CI
Yes
Colour depth
8 bit
sRGB coverage (typical)
100%
NTSC coverage (typical)
80%

Performance

AMD FreeSync
Yes
ConnectShare (USB)
Yes
Flicker-free technology
Yes
Low Blue Light technology
Yes

Multimedia

Number of speakers
2
RMS rated power
6 W
Built-in speaker(s)
Yes
Built-in camera
No

Design

Market positioning
Gaming
Product colour
Black
Detachable stand
Yes
Feet colour
Black

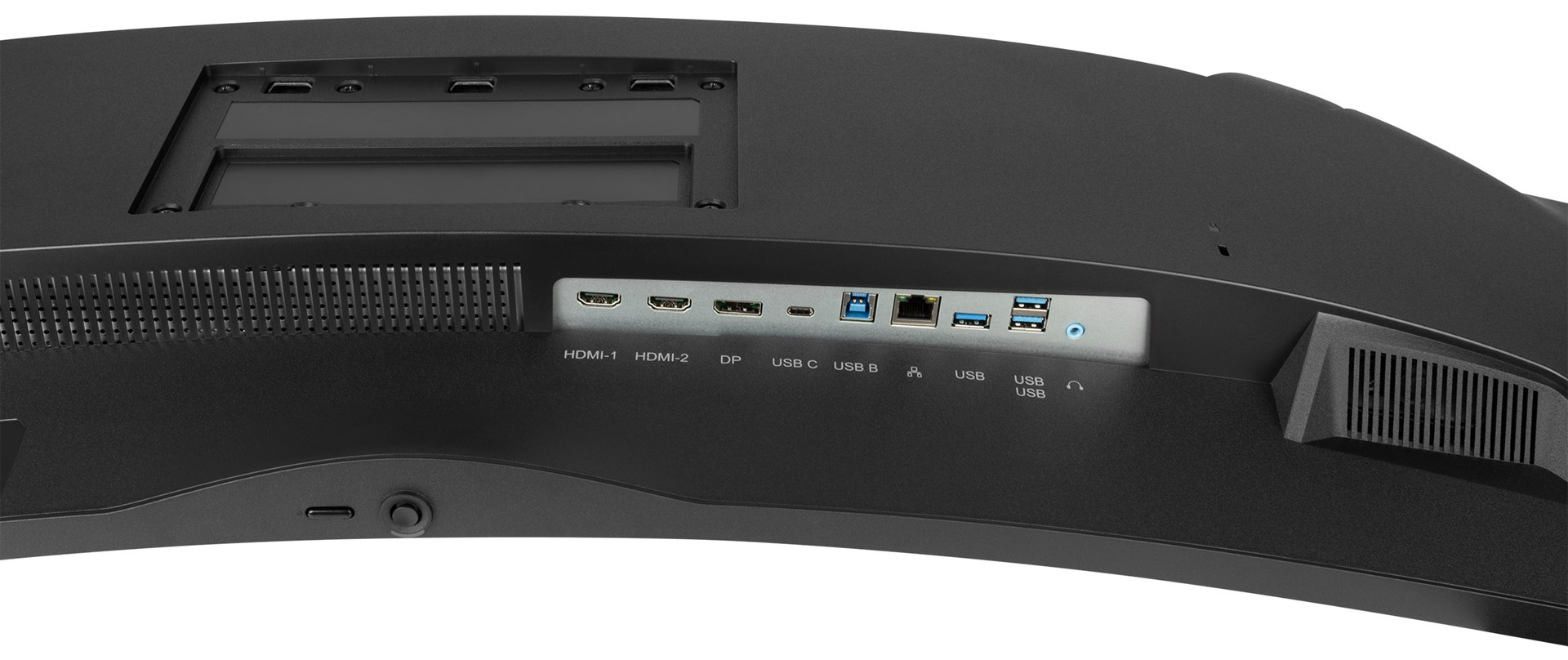

Ports & interfaces

Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
USB upstream port type
USB Type-C
Number of USB Type-C upstream ports quantity
1
USB Type-A downstream ports quantity
3
USB Type-C downstream ports quantity
1
USB Power Delivery (USB PD)
Yes
USB Power Delivery up to
90 W
HDMI
Yes
HDMI ports quantity
2
DisplayPorts quantity
1
Headphone out
Yes
Headphone outputs
1
Built-in KVM switch
Yes
KVM switch ports quantity
1
HDCP
Yes
DC-in jack
Yes

Network

Ethernet LAN
Yes

Ergonomics

VESA mounting
Yes
Panel mounting interface
200 x 100 mm
Wall mountable
Yes
Cable management
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Height adjustment
Yes
Adjustable height (max)
13 cm
Tilt adjustment
Yes
Tilt angle range
3 - 20°
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Czech, German, English, French, Hungarian, Italian, Japanese, Polish, Russian
Number of OSD languages
9

Power

Energy efficiency class (SDR)
F
Energy efficiency class (HDR)
G
Energy consumption (SDR) per 1000 hours
37 kWh
Energy consumption (HDR) per 1000 hours
67 kWh
Power consumption (typical)
60 W
Power consumption (standby)
0.5 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Energy efficiency scale
A to G
European Product Registry for Energy Labelling (EPREL) code
1774068

Operational conditions

Operating temperature (T-T)
5 - 35 °C

Weight & dimensions

Width (with stand)
1090 mm
Depth (with stand)
275 mm
Height (with stand)
539 mm
Weight (with stand)
11.2 kg
Height (without stand)
409 mm

Packaging data

Package width
1260 mm
Package depth
1260 mm
Package height
470 mm
Package weight
16.4 kg

Packaging content

Stand included
Yes
Cables included
DisplayPort, HDMI, Power, USB
Power adapter included
Yes
Quick start guide
Yes
Manual
Yes

Sustainability

Sustainability compliance
Yes
Sustainability certificates
ErP

Other features

Brand specific technologies
Black Equalizer, Eye Saver
Volume control
Buttons
Compliance certificates
CE, PSE, REACH, RoHS, cTUVus, UKCA, VCCI, WEEE
