Fibre optic patch panels

45 products listed

A fibre patch panel is where an incoming fibre cable stops being a fragile trunk and becomes something you can patch. The trunk is terminated or spliced inside the enclosure, and the front presents standard LC or SC adapters that patch leads plug into.

Getting this right protects the expensive part of the installation: the fibre in the wall or the duct, which nobody wants to re-pull because a connector was stressed.

Fibre optic patch panels in stock and on order

Browse the full Cables & Accessories category

How to choose fibre patch panels

Connector type and count

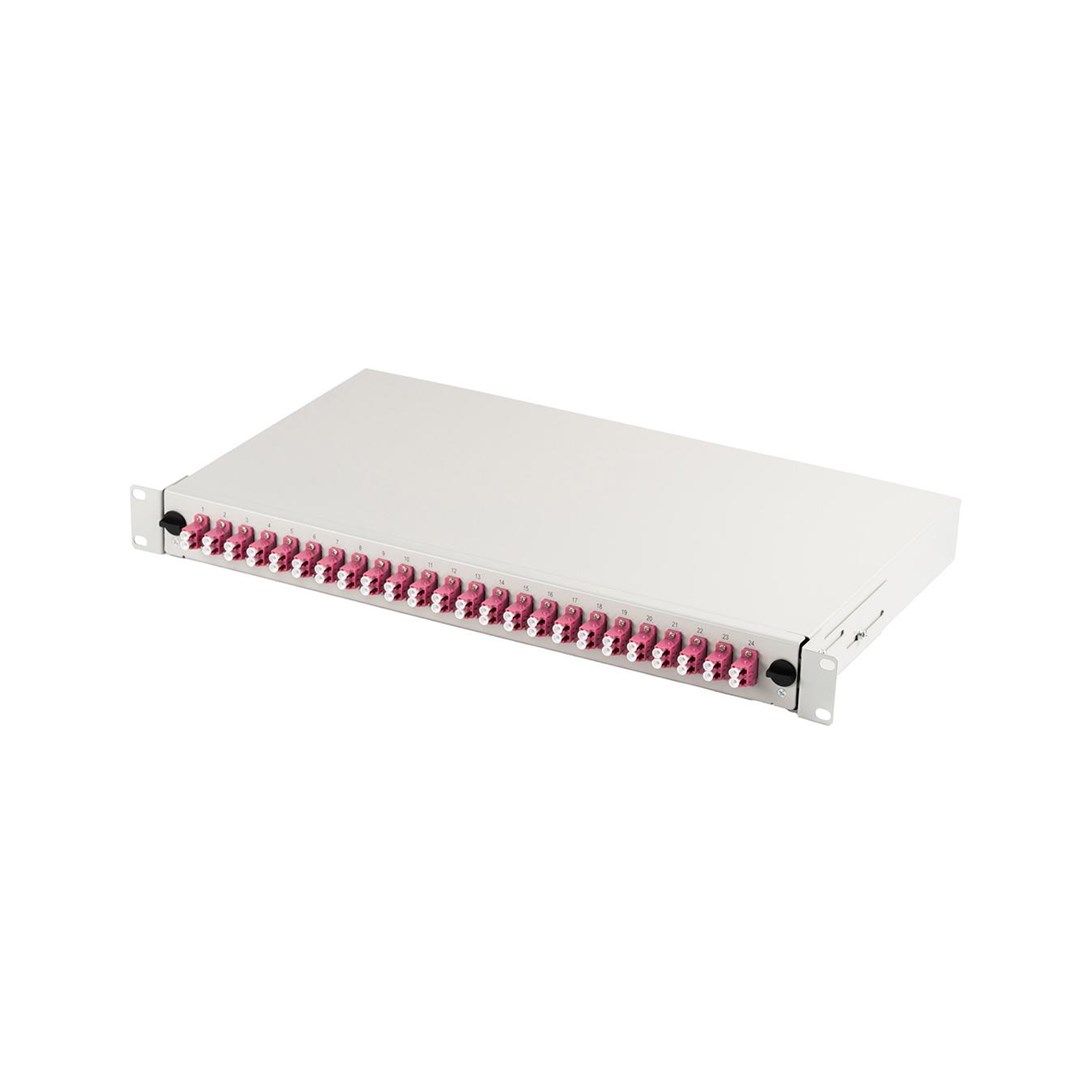

LC duplex is the modern default and doubles the density of SC in the same panel width; SC duplex is still common on older plant and some GPON equipment. Count the fibre strands in the incoming cable, not the number of links you plan to use today — terminate everything while the enclosure is open.

Single-mode or multi-mode

Adapters and transceivers must match the fibre. Single-mode (OS2, yellow) is used for long campus and inter-building runs; multi-mode (OM3/OM4, aqua) for short in-building links. Mixing them silently degrades or breaks the link.

Enclosure format

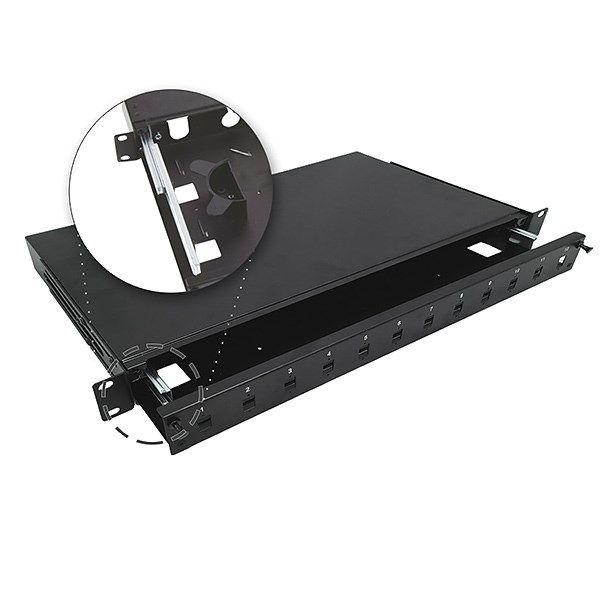

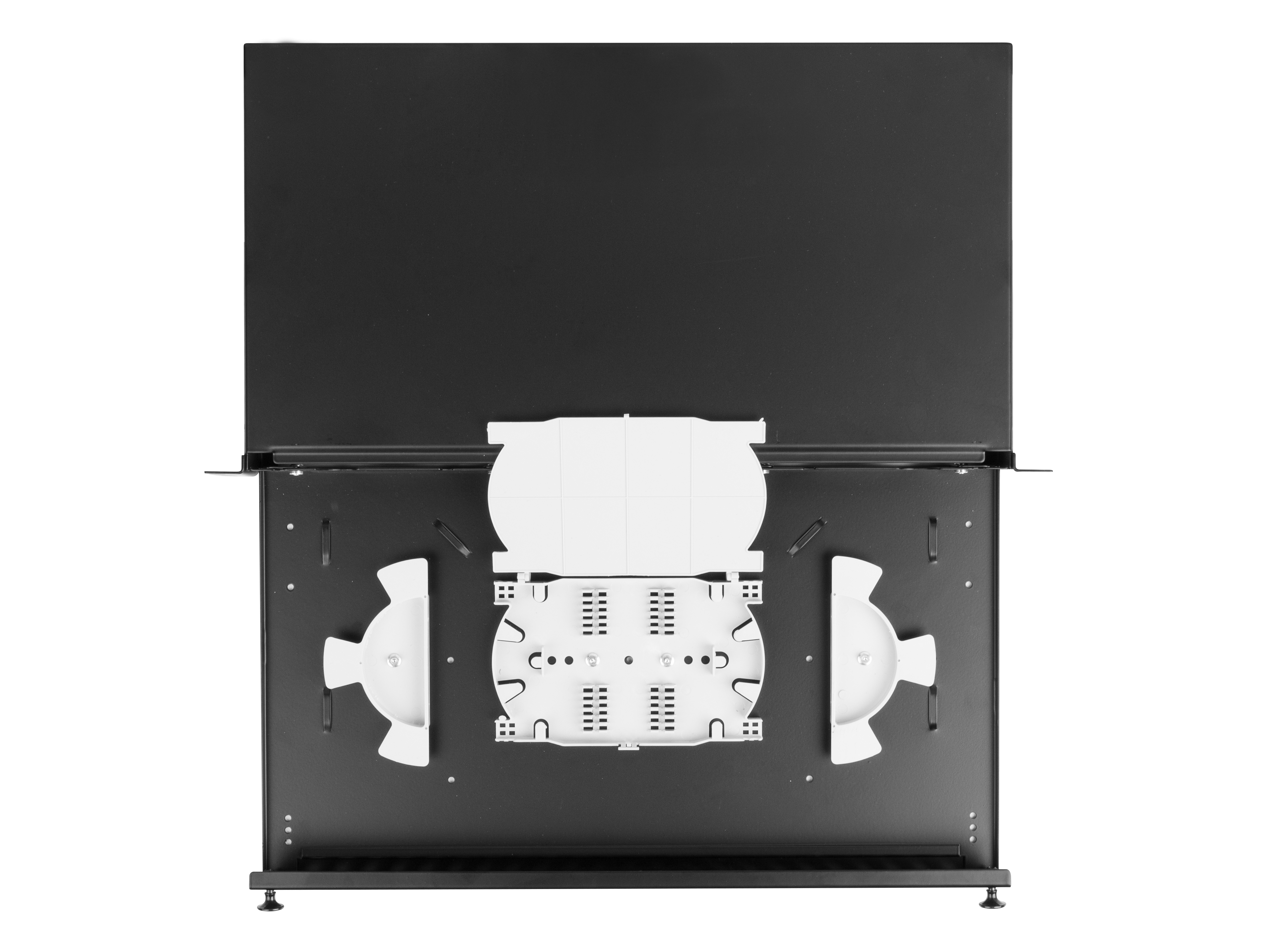

1U sliding or telescopic enclosures make splicing and re-patching possible without unracking the panel, and include a splice tray plus fibre-management spool. In 10-inch wall cabinets, look for the matching 10-inch panel rather than adapting a 19-inch one.

Fibre patch panels — frequently asked questions

What is the difference between LC and SC fibre panels?
SC uses a larger square push-pull connector; LC is roughly half the size, so an LC panel fits about twice as many ports in the same 1U. Both are available in single-mode and multi-mode versions and must match your patch leads and transceivers.
Do I need a splice tray?
If the incoming fibre is a bare trunk cable, yes — the strands are fusion-spliced to pigtails inside the enclosure. Pre-terminated trunks with connectors on the end plug straight into the adapters instead.
