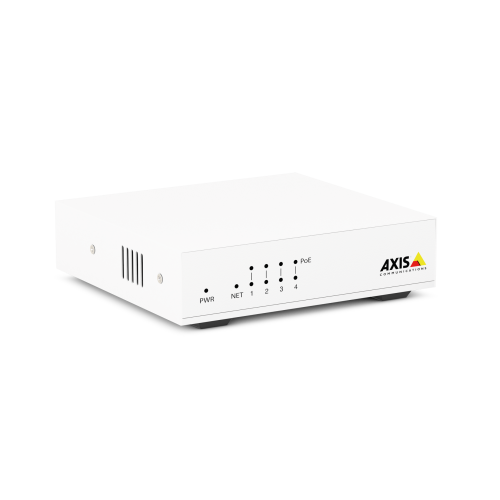

Axis 02101-002 network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) White

The palm-sized AXIS D8004 Unmanaged PoE Switch delivers network and power for up to 4 network devices with plug and play installation. Using AXIS D8004 Unmanaged PoE Switch as a central power source simplifies both installation and maintenance. The switch, together with AXIS surveillance cards, is perfect for small systems with few devices and basic video storage requirements. AXIS D8004 Unmanaged PoE Switch is also ideal when it’s not possible to pull multiple cables. If there’s local power available, simply pull one cable with data connection from the core switch or router, and AXIS D8004 Unmanaged PoE Switch can provide Power over Ethernet (PoE) for all 4 products.

ON ORDER

SKU: 02101-002

Manufacturer: Axis Axis

RRP Price €147.68

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Power connector
DC-in jack

Network

Networking standards
IEEE 802.3af, IEEE 802.3at
10G support
No
Ethernet LAN data rates
10,100 Mbit/s

Design

Product colour
White
Housing material
Metal
LED indicators
Activity, Network, PoE, Power

Power

Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
62 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
60 W

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 50 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
90 mm
Depth
80 mm
Height
21 mm
Weight
172 g

Packaging content

Cables included
AC
User guide
Yes

Certificates

Certification
EN 55022:2010/55032:2012 + AC : 2013 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 50581, FCC Part 15 Subpart B Class B, ICES-003 Class B, IEC/EN/UL 60950-1, CE, WEEE, C-Tick/RCM

Logistics data

Harmonized System (HS) code
85176990
