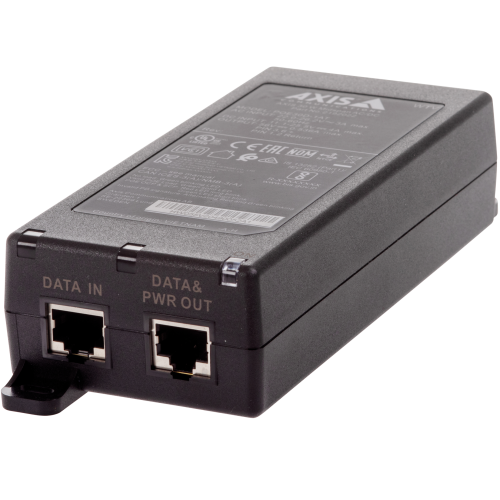

Axis 02208-001 PoE adapter Fast Ethernet, Gigabit Ethernet 56 V

AXIS 30 W Midspan AC/DC is for installations where mains power is not an option. With a power input of either 10-28 V DC or 24 V AC, it can deliver up to IEEE 802.3at (30 W) to your network device. 24 V AC can be needed in harsh environments where new cabling or installations are not possible and you need to retrofit box, dome or PTZ cameras. 10-28 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it.

ON ORDER

SKU: 02208-001

Manufacturer: Axis Axis

RRP Price €147.49

Specifications

Network

Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.3af, IEEE 802.3at

Features

Product colour
Black
Wall mountable
Yes
LED indicators
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
2
RJ-45 input ports
1
RJ-45 output ports
1

Power

Power over Ethernet (PoE) voltage
56 V
Output power
30 W
Input voltage
10-18 V

Certificates

Certification
IS 13252, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-6, IEC 60068-2-27, 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, EAC

Sustainability

Doesn't contain
PVC

Operational conditions

Operating temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-40 - 75 °C

Weight & dimensions

Width
65 mm
Depth
164 mm
Height
37 mm
Weight
233 g

Logistics data

Harmonized System (HS) code
85044095

Accessories

License
