StarTech.com Extreme Networks 10056 Compatible SFP Module - 1000BASE-BX-D - 1 GbE Gigabit Ethernet BiDi Fiber (SMF)

StarTech.com Extreme Networks 10056 Compatible SFP Module - 1000BASE-BX-D - 1 GbE Gigabit Ethernet BiDi Fiber (SMF)

Name: StarTech.com Extreme Networks 10056 Compatible SFP Module - 1000BASE-BX-D - 1 GbE Gigabit Ethernet BiDi Fiber (SMF)
Brand: StarTech.com
SKU: 10056-ST
Price: 61.67 EUR
Availability: OutOfStock

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

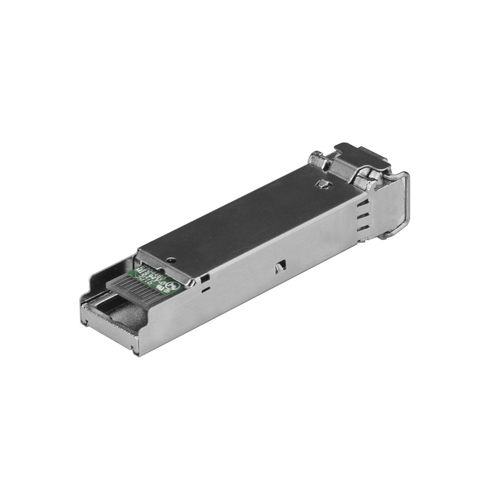

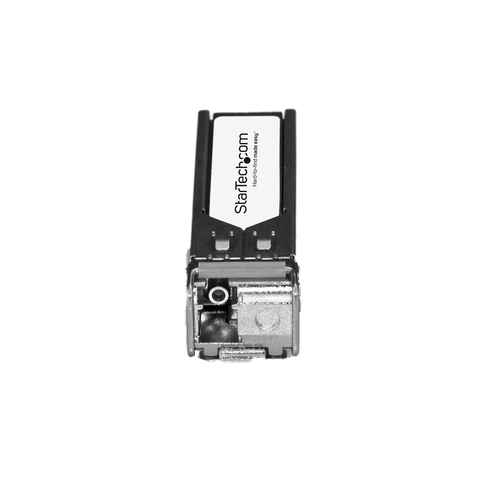

The 10056-ST is an Extreme Networks 10056 compatible downstream fiber SFP transceiver which pairs with StarTech.com's 10057-ST. They are designed, programmed and tested to work with 1000BASE-BX-D compatible Extreme Networks switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1490nmTx/1310nmRx
• Maximum Data Transfer Rate: 1Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption:
• DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

SKU: 10056-ST

Manufacturer: StarTech.com

RRP Price €61.67

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

1250 Mbit/s

Interface type

SFP

Single-mode fiber (SMF) supported

Yes

Multi-mode fiber (MMF) supported

Fiber optic connector

SFP transceiver standard

Maximum transfer distance

10000 m

Tx wavelength (max)

1490 nm

Rx wavelength (max)

1310 nm

Networking standards

IEEE 802.3z

Fiber ethernet cabling technology

1000BASE

Duplex system

Full

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Silver

Hot-swap

Yes

Mean time between failures (MTBF)

286217327 h

Brand compatibility

Extreme Networks

Compatible products

10056

Power

Power consumption (typical)

1.3 W

Certificates

Certification

CE, FCC, UR, REACH

Weight & dimensions

Width

56.6 mm

Depth

13.7 mm

Height

12.5 mm

Weight

20 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

90 mm

Package depth

115 mm

Package height

31 mm

Package weight

50 g

Logistics data

Master (outer) case width

90 mm

Master (outer) case length

115 mm

Harmonized System (HS) code

85369010

Master (outer) case height

31 mm

Products per master (outer) case

1 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.02 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
