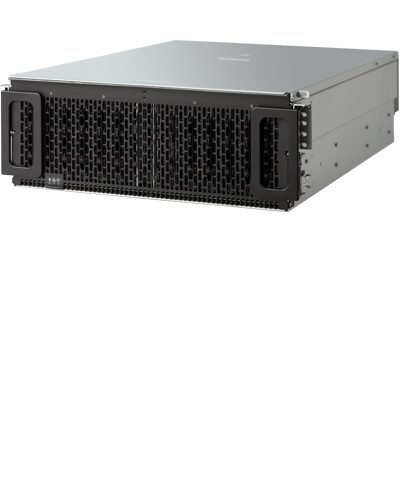

Western Digital Ultrastar Data60 disk array 432 TB Rack (4U) Black

Western Digital Ultrastar Data60 disk array 432 TB Rack (4U) Black

Name: Western Digital Ultrastar Data60 disk array 432 TB Rack (4U) Black
Brand: Western Digital
SKU: 1ES1868
Price: 28132.35 EUR
Availability: OutOfStock

The Ultrastar Data60 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The compact, efficient form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost.

A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. The Ultrastar Data60 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD or hybrid storage.

ON ORDER

SKU: 1ES1868

Manufacturer: Western Digital

RRP Price €28,132.35

Specifications

Storage

Storage drives installed

Yes

Installed storage drive type

HDD

Number of storage drives installed

Total installed storage capacity

432 TB

Supported storage drive types

HDD & SSD

Number of storage drives supported

Storage drive capacity

18 TB

Storage drive interface

Serial Attached SCSI (SAS) III

Storage drive size

3.5"

Supported storage drive interfaces

SAS-3, Serial ATA III

Data transfer rate

12 Gbit/s

Hot-swap drive bays

Yes

Ports & interfaces

USB connectivity

Mini-SAS host port

Yes

Number of mini-SAS host ports

Design

Device class

Small & Medium Business

Chassis type

Rack (4U)

Product colour

Black

LED indicators

Yes

Number of fans

6 fan(s)

Noise level

72 dB

Redundant fans support

Yes

Power

Power supply unit (PSU) capacity

1600 W

Number of power supply units

Redundant power supply (RPS) support

Yes

AC input frequency

50 - 60 Hz

Weight & dimensions

Width

447 mm

Depth

712 mm

Height

175 mm

Disk enclosure weight

23.7 kg

Operational conditions

Operating temperature (T-T)

5 - 35 °C

Operating relative humidity (H-H)

5 - 85%

Storage temperature (T-T)

-40 - 70 °C

Logistics data

Harmonized System (HS) code

84717020

Description

Manufacturer

Western Digital

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

N/A

Country of Origin

N/A

Datasheet

Data Sheet

Download
