Tripp Lite 4POSTRAILKITWM SmartRack 4-Post 1U Universal Adjustable Shelf Kit for Wall-Mount Racks

Tripp Lite 4POSTRAILKITWM SmartRack 4-Post 1U Universal Adjustable Shelf Kit for Wall-Mount Racks

Name: Tripp Lite 4POSTRAILKITWM SmartRack 4-Post 1U Universal Adjustable Shelf Kit for Wall-Mount Racks
Brand: Eaton
SKU: 4POSTRAILKITWM
Price: 69.23 EUR
Availability: OutOfStock

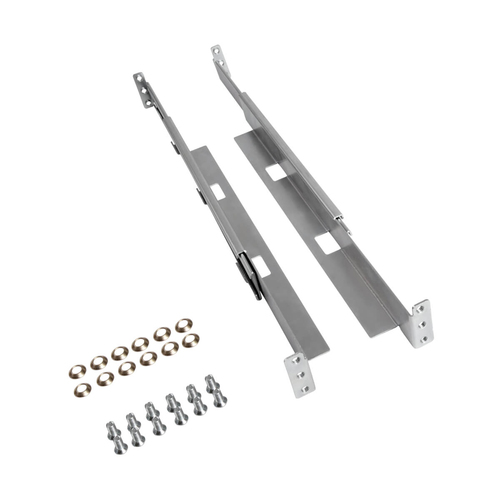

The 4POSTRAILKITWM wall-mount rack shelf kit provides extra support for heavy UPS systems, PDUs or other rack-mount components that weigh 150 lbs (68 kgs) or less. It includes two adjustable mounting rails that attach to the mounting rails of your EIA-standard 19-inch wall-mount enclosure. Constructed using cold-rolled steel with a durable powder-coated finish, this heavy-duty rack rail kit comes with mounting hardware compatible with square-hole racks.

The rails offer front-to-rear support for equipment with 17.5-inch-wide rectangular chassis. They also adjust to any setting between 14.5 and 23.5 inches and leave the rack's front and rear mounting holes free to attach equipment. Setup is hassle-free and saves money and time on installation. Threaded-hole rack installation is also supported with user-supplied mounting hardware.

ON ORDER

SKU: 4POSTRAILKITWM

Manufacturer: Eaton Eaton

RRP Price €69.23

Specifications

Features

Type

Mounting kit

Product colour

Silver

Housing material

Steel

Rack capacity

Compatible rack width

19"

Country of origin

China

Weight & dimensions

Width

37.8 mm

Depth

381 mm

Depth (max)

59.7 cm

Height

43.7 mm

Weight

1.18 kg

Packaging data

Package width

54.9 mm

Package depth

385.1 mm

Package height

50 mm

Package weight

1.36 kg

Packaging content

Screws included

Yes

Technical details

Master (outer) case GTIN (EAN/UPC)

10037332206371

Logistics data

Master (outer) case width

270 mm

Master (outer) case length

405.1 mm

Master (outer) case height

130 mm

Master (outer) case gross weight

14 kg

Products per master (outer) case

10 pc(s)

Harmonized System (HS) code

7326.90.8688

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

1.18 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
