Tripp Lite B040-016-19 NetController 16-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD

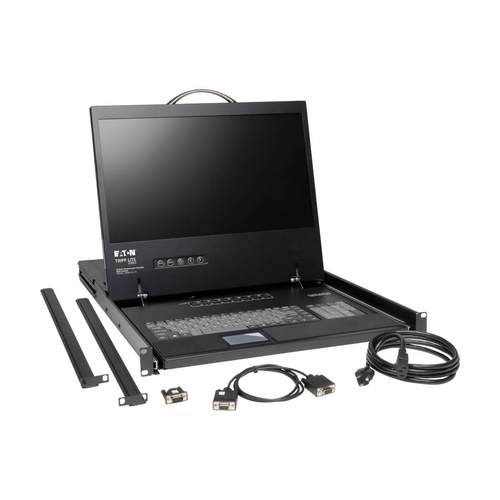

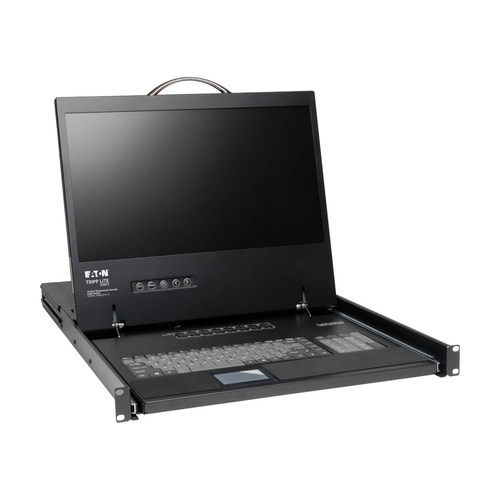

The B040-016-19 KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the cost-effective solution for controlling up to 16 directly connected computers/servers.

The B040-016-19 has a built-in 19-inch LCD screen supports video resolutions up to 1366 x 768. You can switch easily between the 16 ports using on-console push buttons, an on-screen display (OSD) or keyboard hotkey commands. Password protection prohibits unauthorized users from accessing the connected computers.

With this KVM switch, you can increase the number of connected computers up to 256 by daisy-chaining up to 15 B042-Series KVM switches. Uses P780-Series combo cable kits that support both PS/2 and USB connections without the need to purchase additional cables or adapters. An extra HD15 port allows an additional VGA monitor or an external console to be connected. Add a B051-000 IP Remote Access Unit to connect from anywhere in the world. An additional USB port lets you connect an external mouse or keyboard. When not in use, the B040-016-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Rugged steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

ON ORDER

SKU: B040-016-19

Manufacturer: Eaton Eaton

RRP Price €1,414.83

Specifications

Display

Display diagonal
48.3 cm (19")
Display resolution
1366 x 768 pixels
Display
LCD
On Screen Display (OSD)
Yes

Technical details

Material
Galvanized steel
Form factor
1U
Built-in KVM switch
Yes
KVM switch ports quantity
16
Compliance certificates
RoHS
Country of origin
Taiwan

Ports & interfaces

I/O ports
16 x HD15F USB
Interface
PS/2; USB; VGA
Video port type
VGA

Certificates

Certification
UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1, TUV (UL), CTUV, CE, FCC, NOM

Power

Power consumption (typical)
30 W
Power consumption (standby)
5 W
AC adapter input voltage
120/230 V
AC adapter frequency
50/60 Hz
Input current
1.4/0.8 A

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C

Weight & dimensions

Width
449.3 mm
Height
43.4 mm
Depth
722.4 mm
Weight
14.5 kg

Packaging data

Package weight
18.5 kg
Package width
591.8 mm
Package depth
825 mm
Package height
154.9 mm

Logistics data

Master (outer) case width
591.8 mm
Master (outer) case length
825 mm
Master (outer) case height
154.9 mm
Master (outer) case gross weight
18.5 kg
Products per master (outer) case
1 pc(s)

Accessories

License
