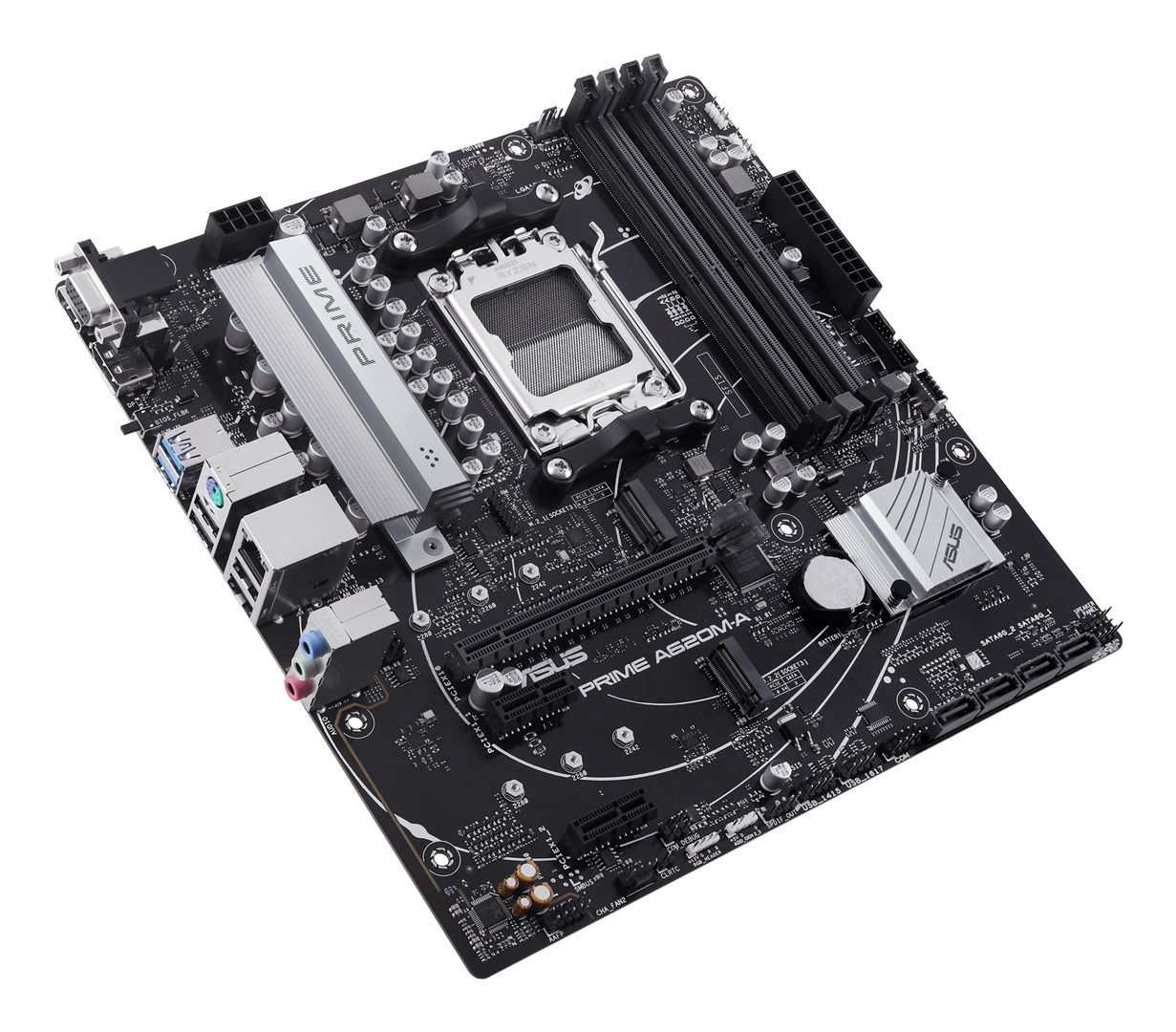

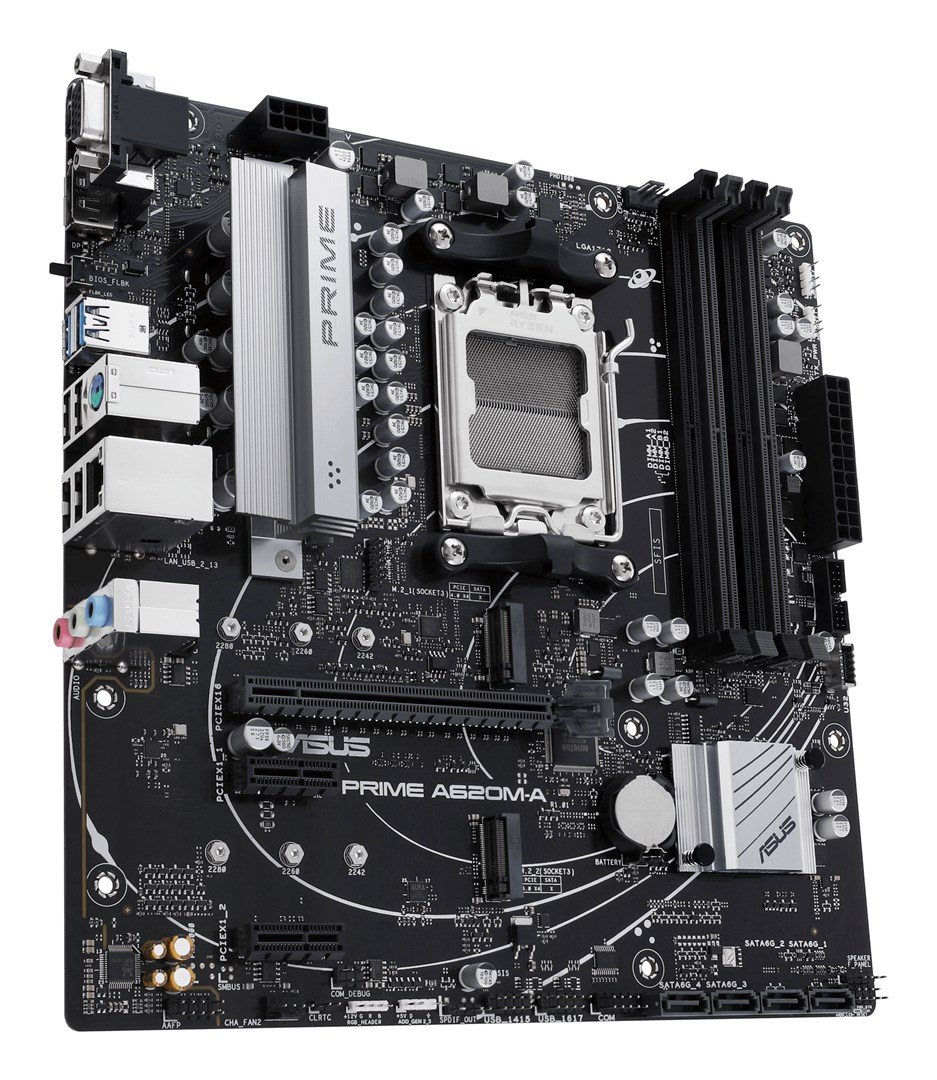

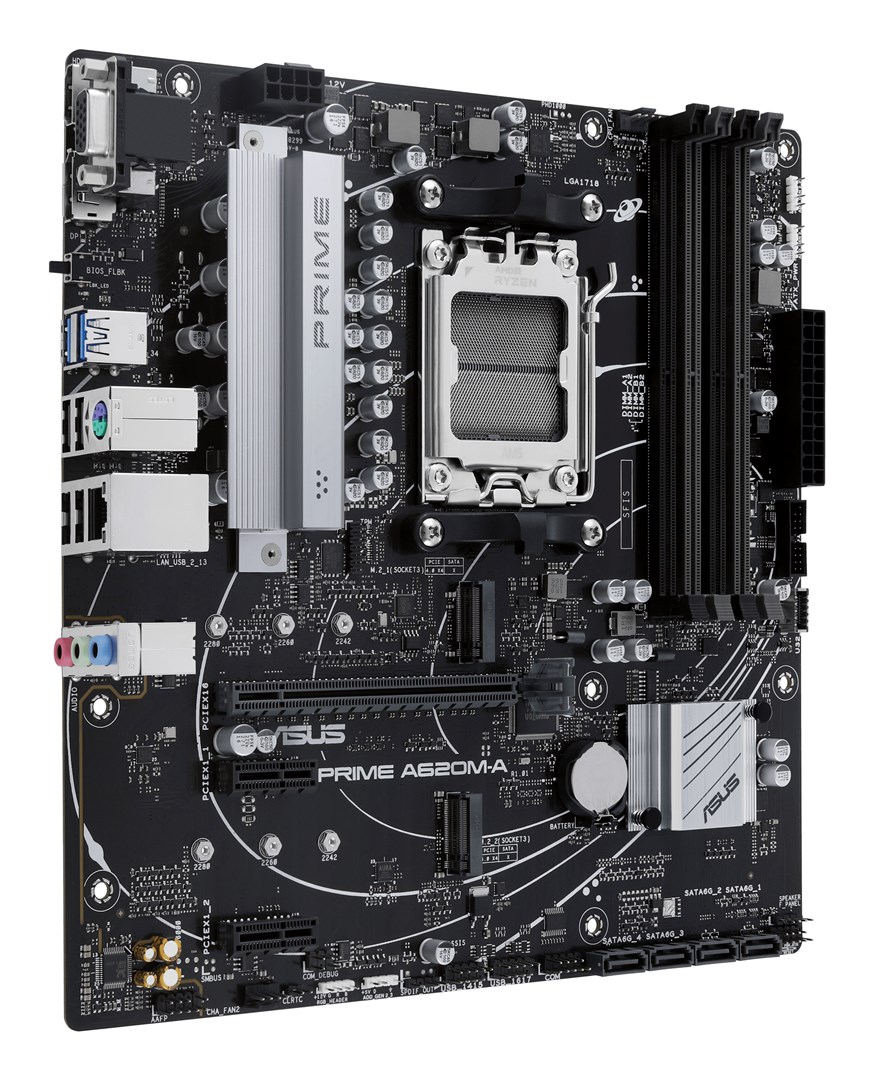

ASUS PRIME A620M-A-CSM AMD A620 Socket AM5 micro ATX

A620M-A-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME A620M-A-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.

ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME A620 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

7 IN STOCK

SKU: 90MB1F10-M0EAYC

Manufacturer: ASUS ASUS

RRP Price €157.05

Specifications

Processor

Processor manufacturer
AMD
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series
Supported processor sockets
Socket AM5

Memory

Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Supported memory clock speed (max)
6400 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes

Storage controllers

Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 10

Graphics

Parallel processing technology support
Not supported

Internal I/O

USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of SATA III connectors
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
Number of COM connectors
1
TPM connector
Yes
12V power connector
Yes
RGB LED pin header
Yes

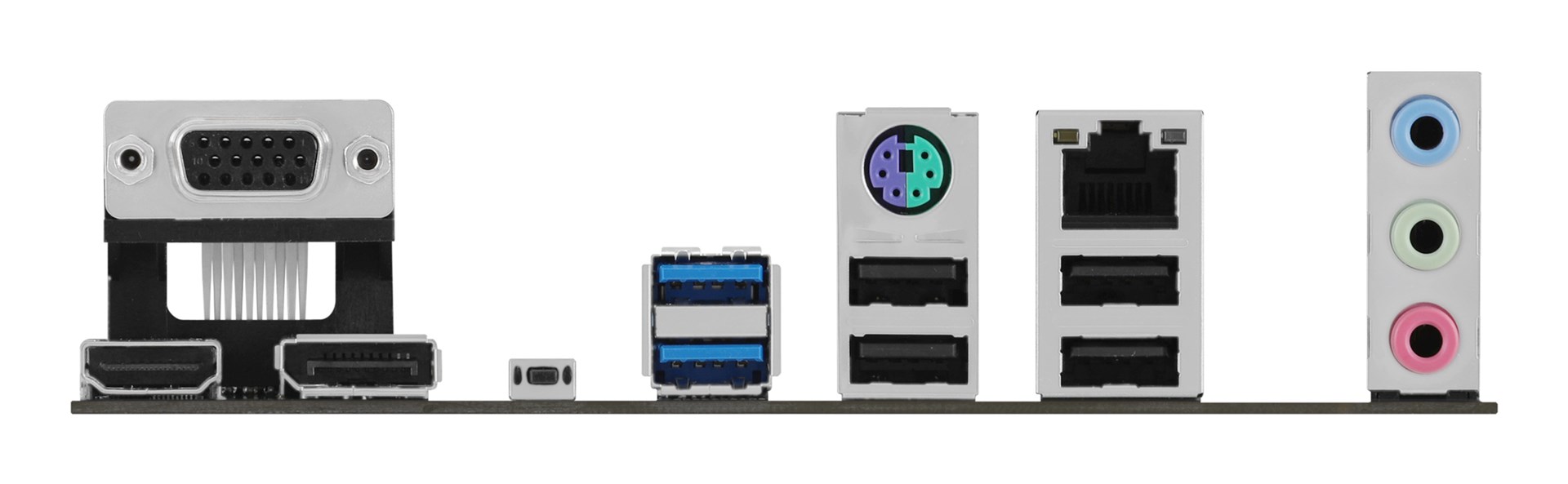

Rear panel I/O ports

USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
1
PS/2 ports quantity
1
VGA (D-Sub) ports quantity
1
HDMI ports quantity
1
DisplayPorts quantity
1
Headphone outputs
1
Line-in
Yes
Microphone in
Yes

Network

Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Wi-Fi
No

Features

Motherboard chipset
AMD A620
Audio output channels
7.1 channels
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11

Expansion slots

PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2

BIOS

BIOS type
UEFI AMI
BIOS memory size
256 Mbit

Packaging data

Package width
275 mm
Package depth
275 mm
Package height
67.5 mm
Package weight
1.36 kg

Weight & dimensions

Width
244 mm
Depth
244 mm
Height
43 mm

Packaging content

Cables included
SATA

Accessories

License
