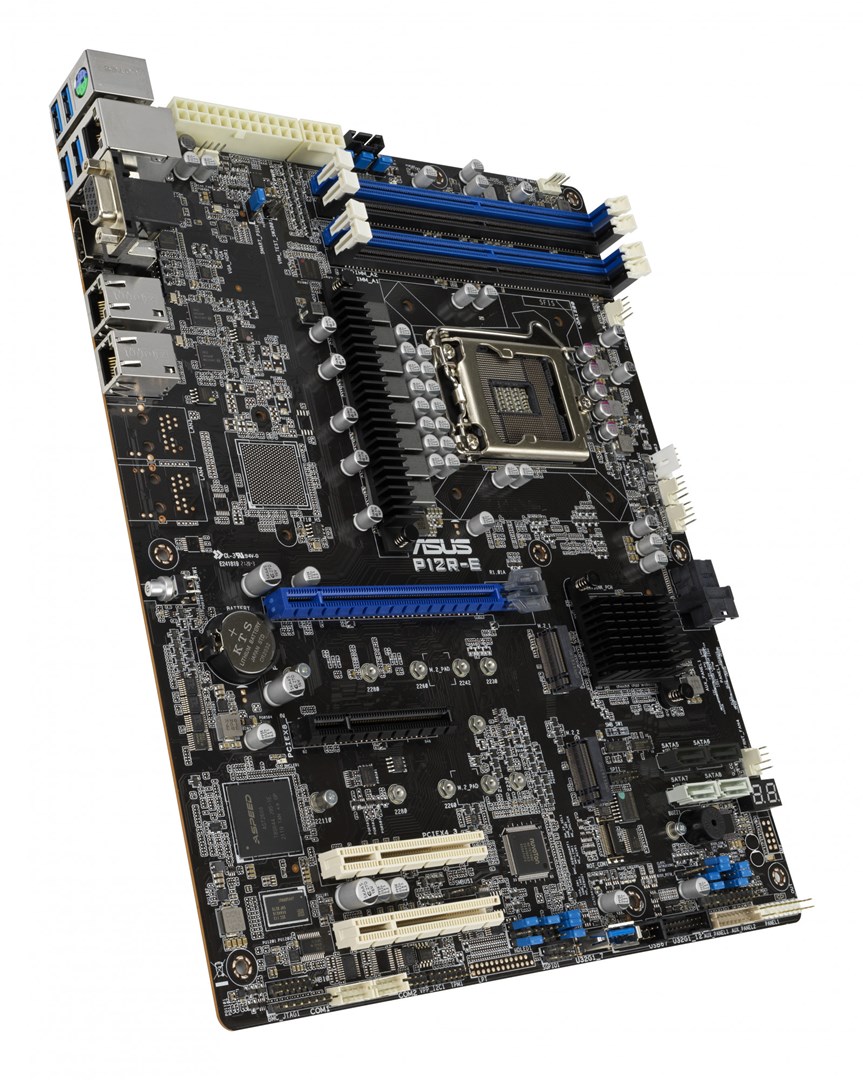

ASUS P12R-E Intel C256 LGA 1200 (Socket H5) ATX

PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.

Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.

45 IN STOCK

SKU: 90SB0A90-M0UAY0

Manufacturer: ASUS ASUS

RRP Price €428.41

Specifications

Processor

Processor manufacturer
Intel
Processor socket
LGA 1200 (Socket H5)
Compatible processor series
Intel® Pentium®, Intel Xeon E

Memory

Supported memory types
DDR4-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Supported memory clock speeds
2666,2933,3200 MHz
Supported memory clock speed (max)
3200 MHz
Maximum internal memory
128 GB
Supported memory module capacities
8GB, 16GB, 32GB

Storage controllers

Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
8
Number of storage drives supported
10
RAID support
Yes

Graphics

On-board graphics card
Yes
Graphics card family
ASPEED
On-board graphics card model
Aspeed AST2600
On-board graphics card memory
64 MB

Internal I/O

USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
8
ATX Power connector (24-pin)
Yes
Power fan connector
Yes
Chassis intrusion connector
Yes
Number of COM connectors
1
TPM connector
Yes

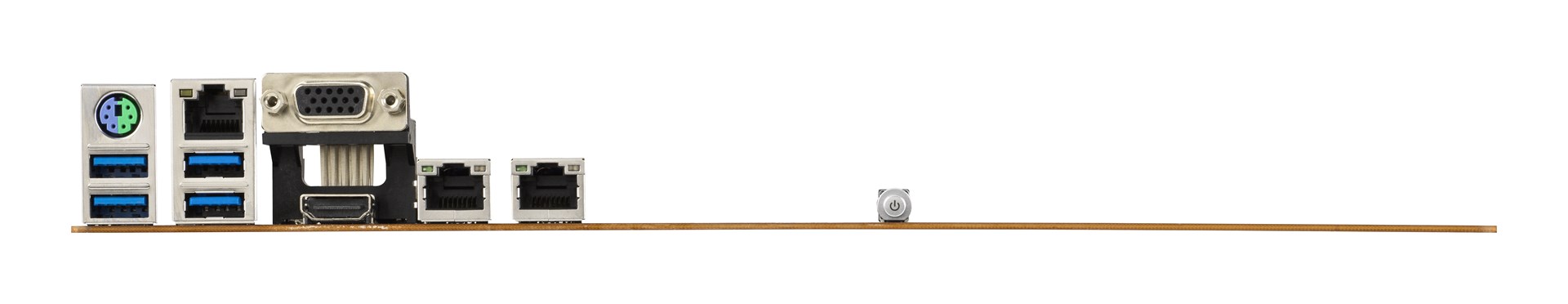

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
2
PS/2 ports quantity
1
VGA (D-Sub) ports quantity
1
HDMI ports quantity
1

Network

Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Wi-Fi
No

Features

Motherboard chipset
Intel C256
PC health monitoring
CPU, Fan
Component for
Server
Motherboard form factor
ATX
Motherboard chipset family
Intel

Expansion slots

PCI Express x8 (Gen 3.x) slots
2
PCI Express x8 (Gen 4.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2

Operational conditions

Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 50 °C
Storage relative humidity (H-H)
20 - 90%

Logistics data

Harmonized System (HS) code
84733020

Packaging data

Package width
341 mm
Package depth
281 mm
Package height
78 mm
Package weight
1.5 kg

Weight & dimensions

Width
305 mm
Depth
244 mm
Height
68 mm

Other features

Weight
800 g

Accessories

License
