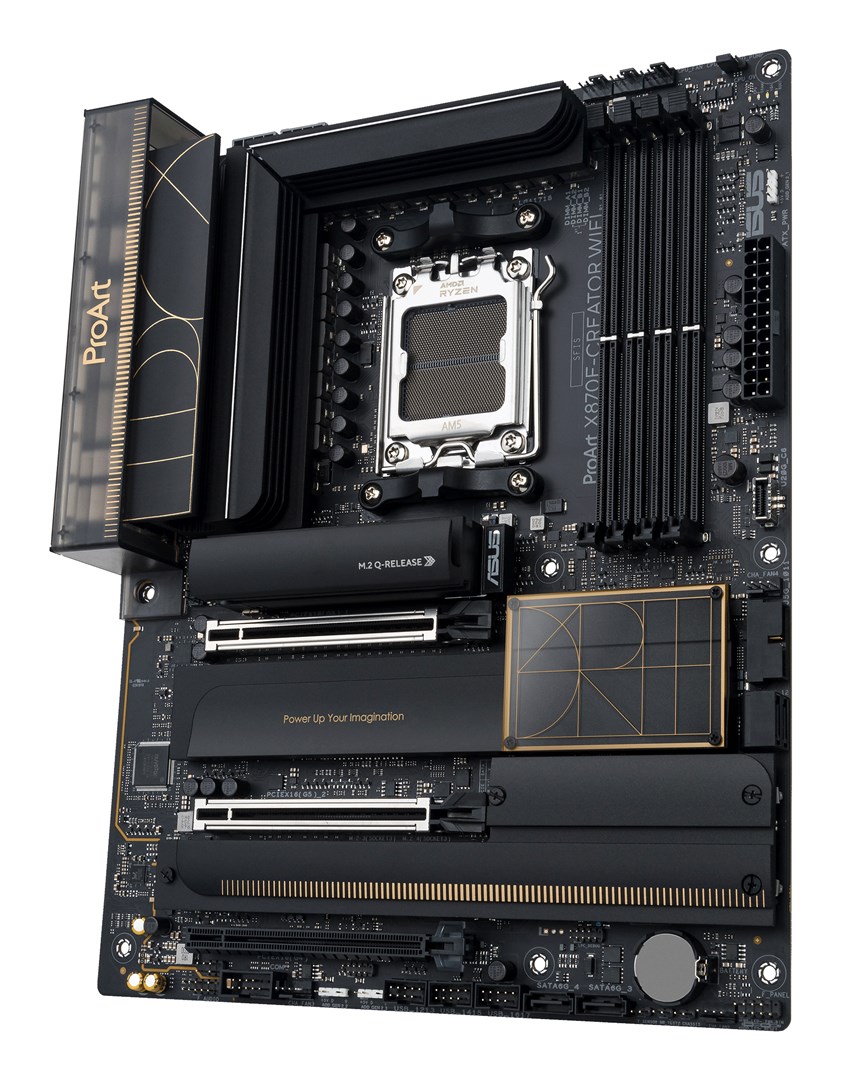

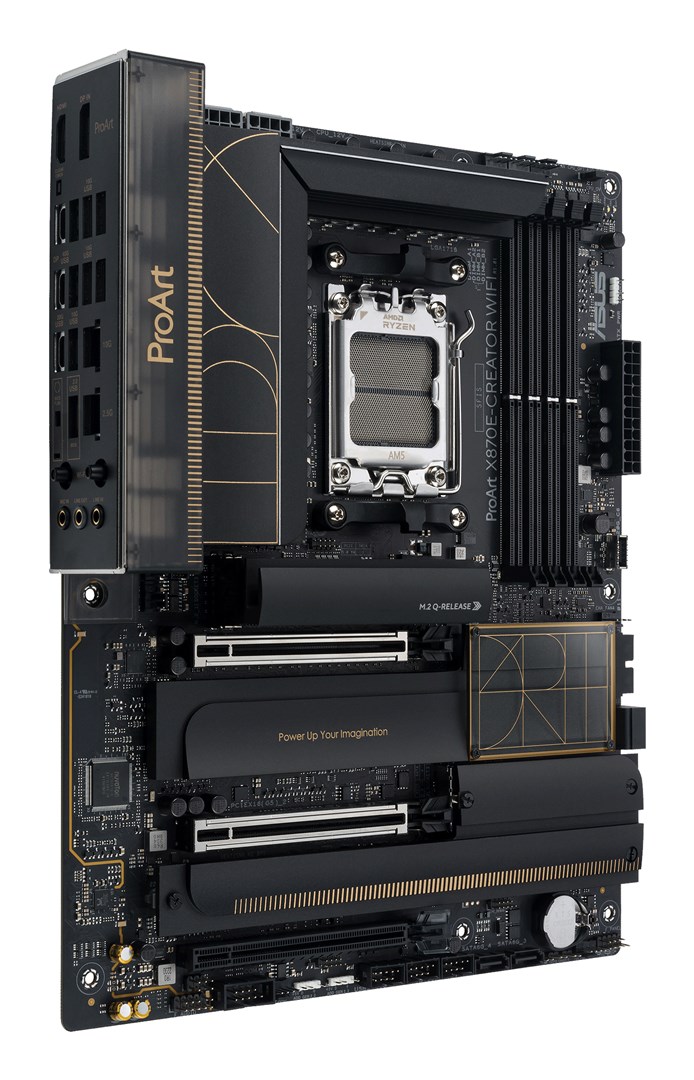

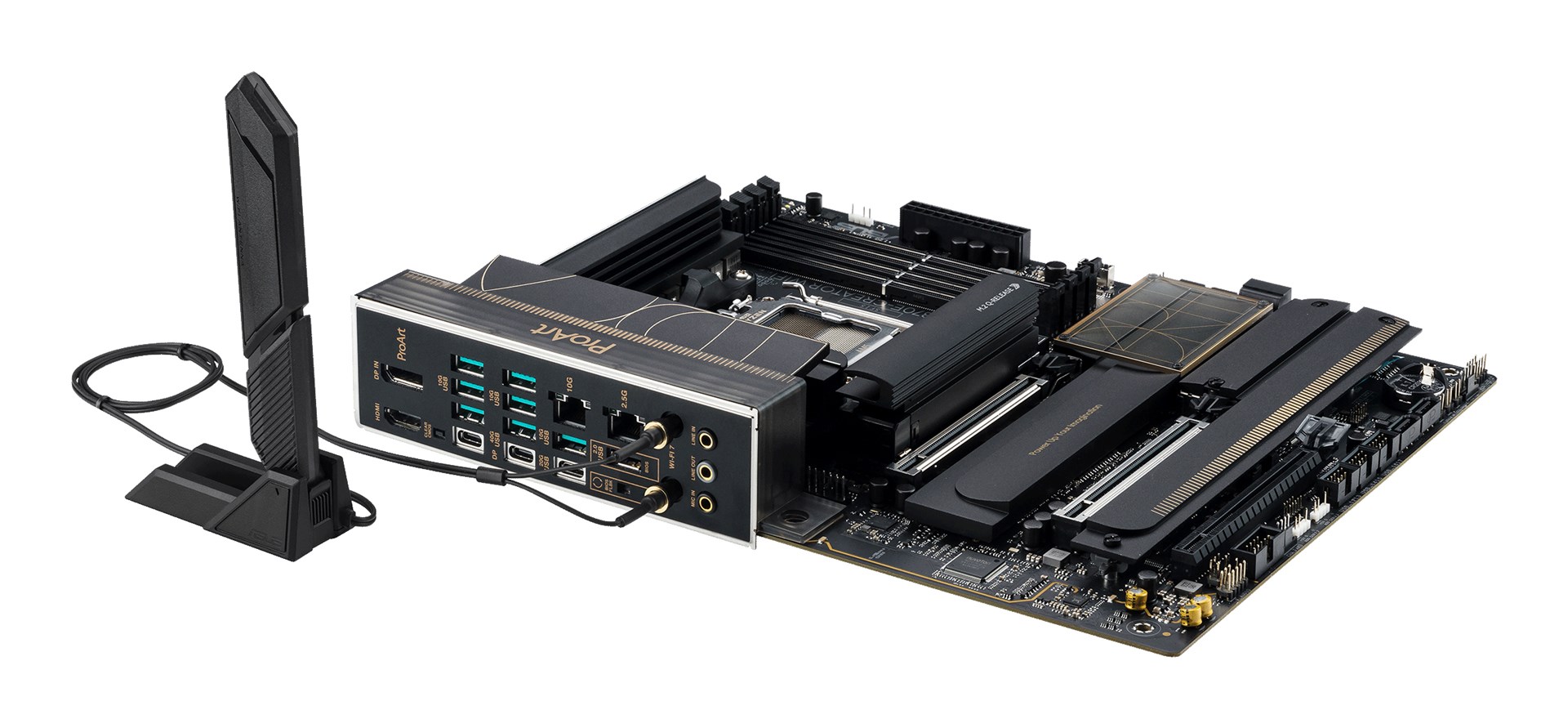

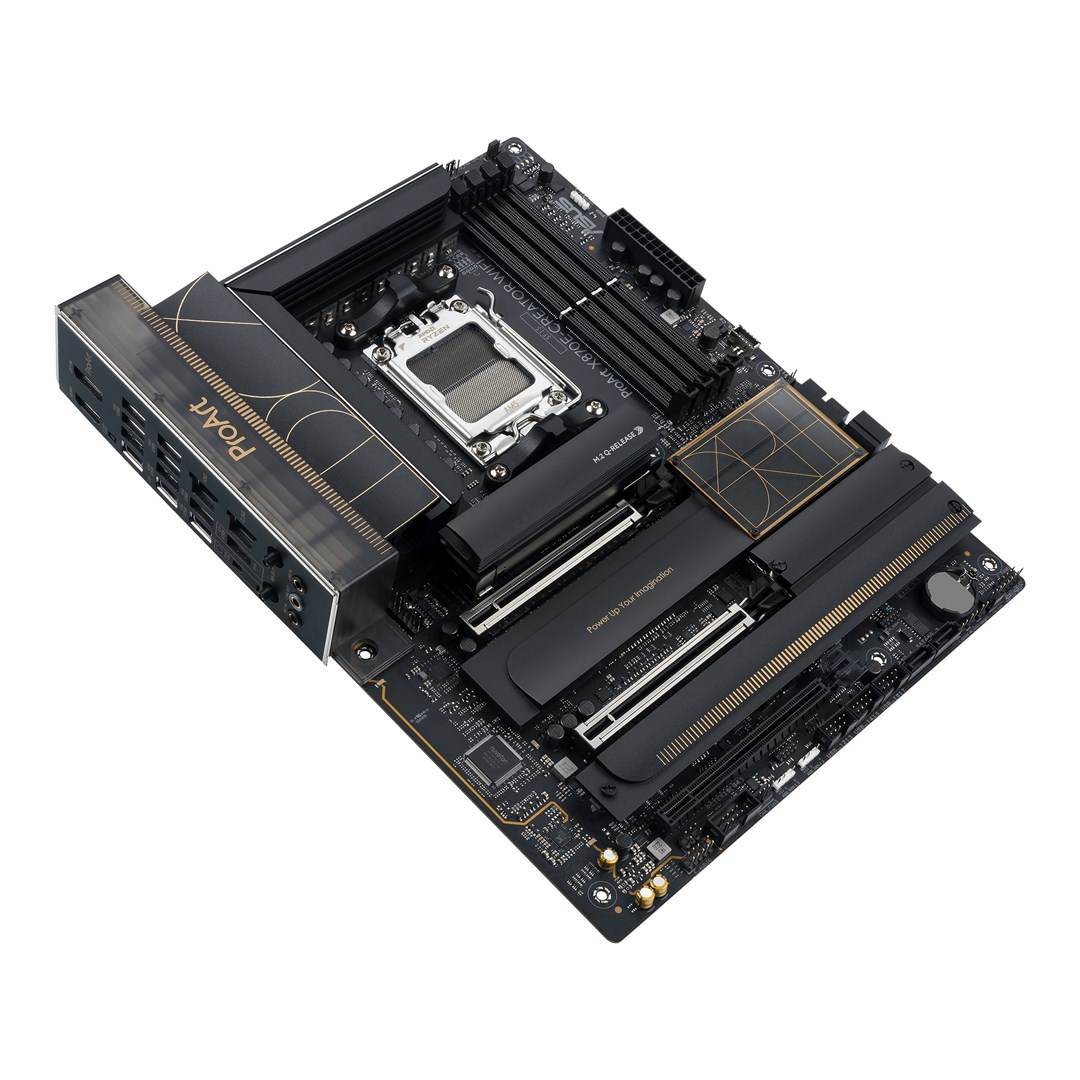

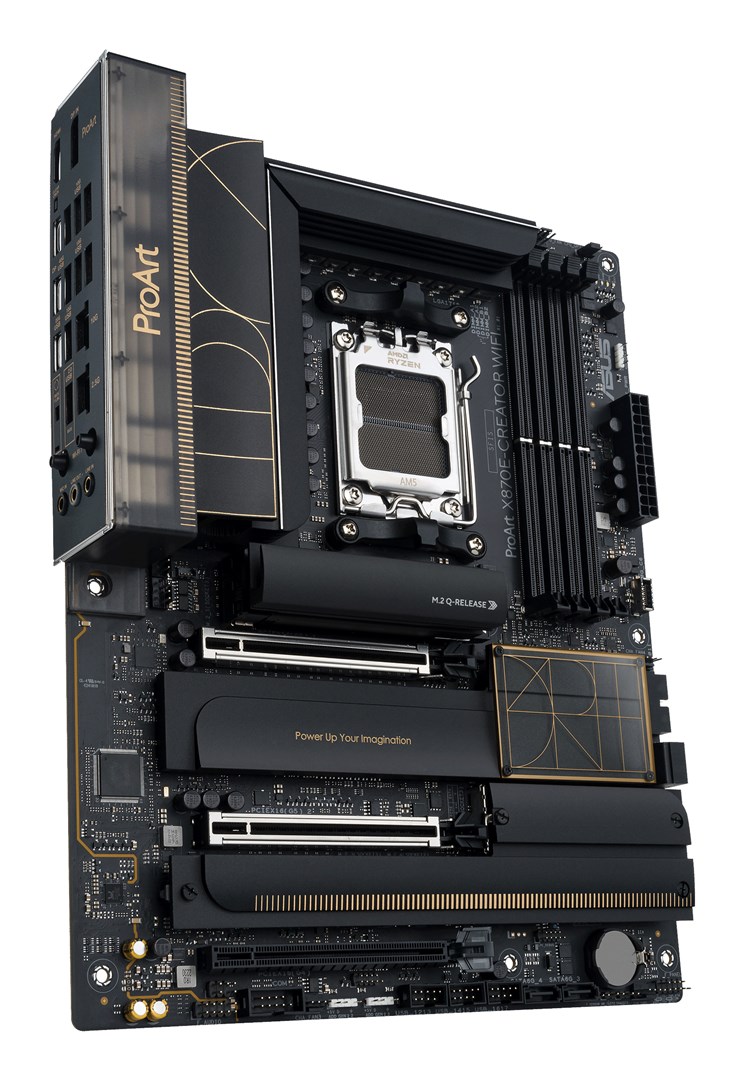

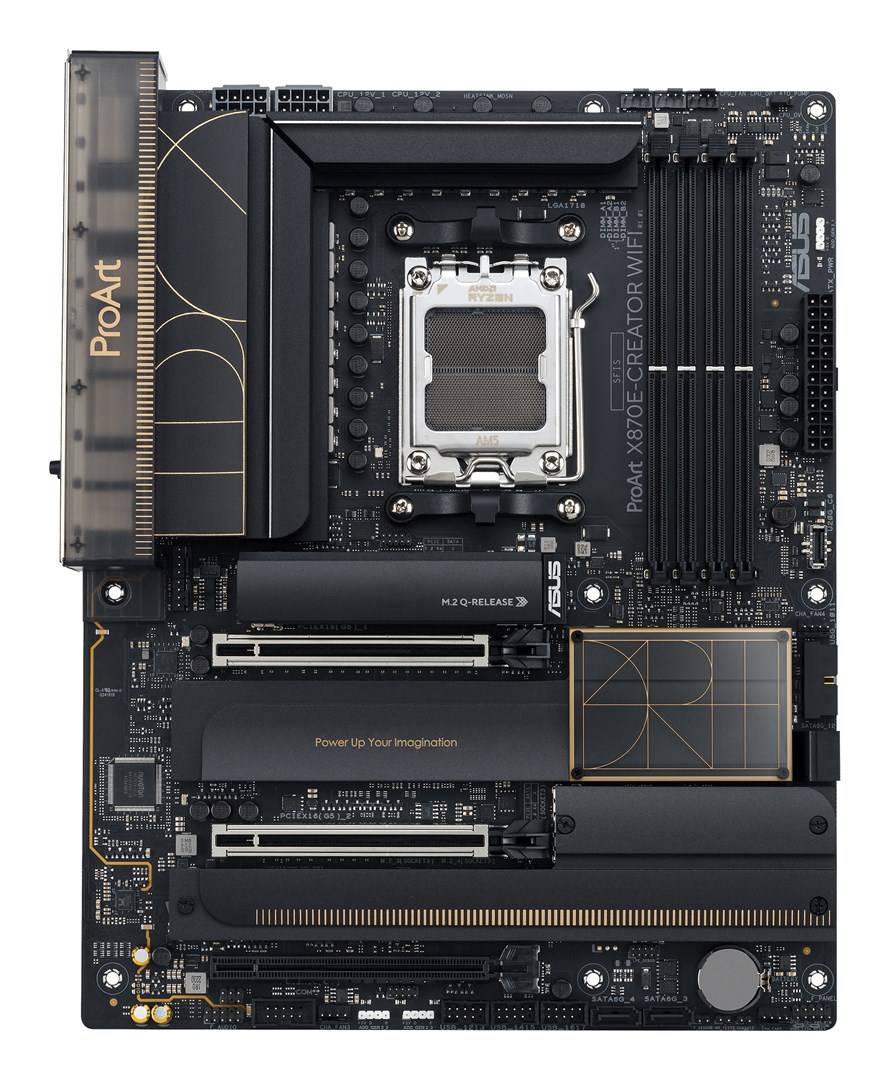

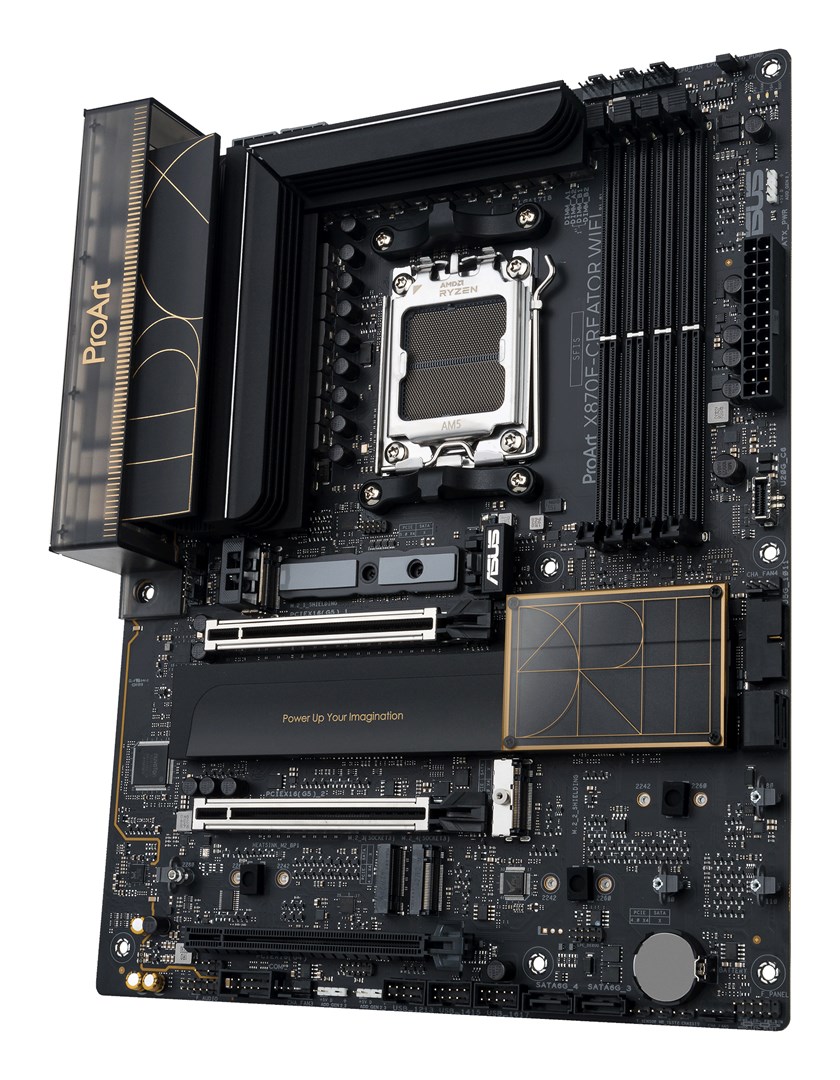

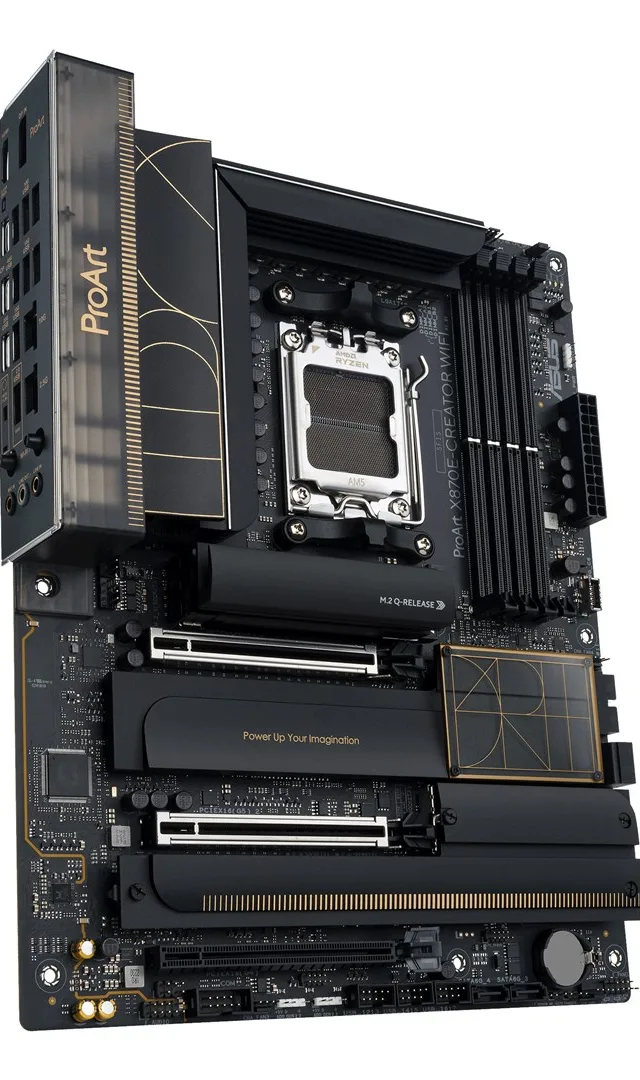

ASUS ProArt X870E-CREATOR WIFI AMD X870E Socket AM5 ATX

The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.​

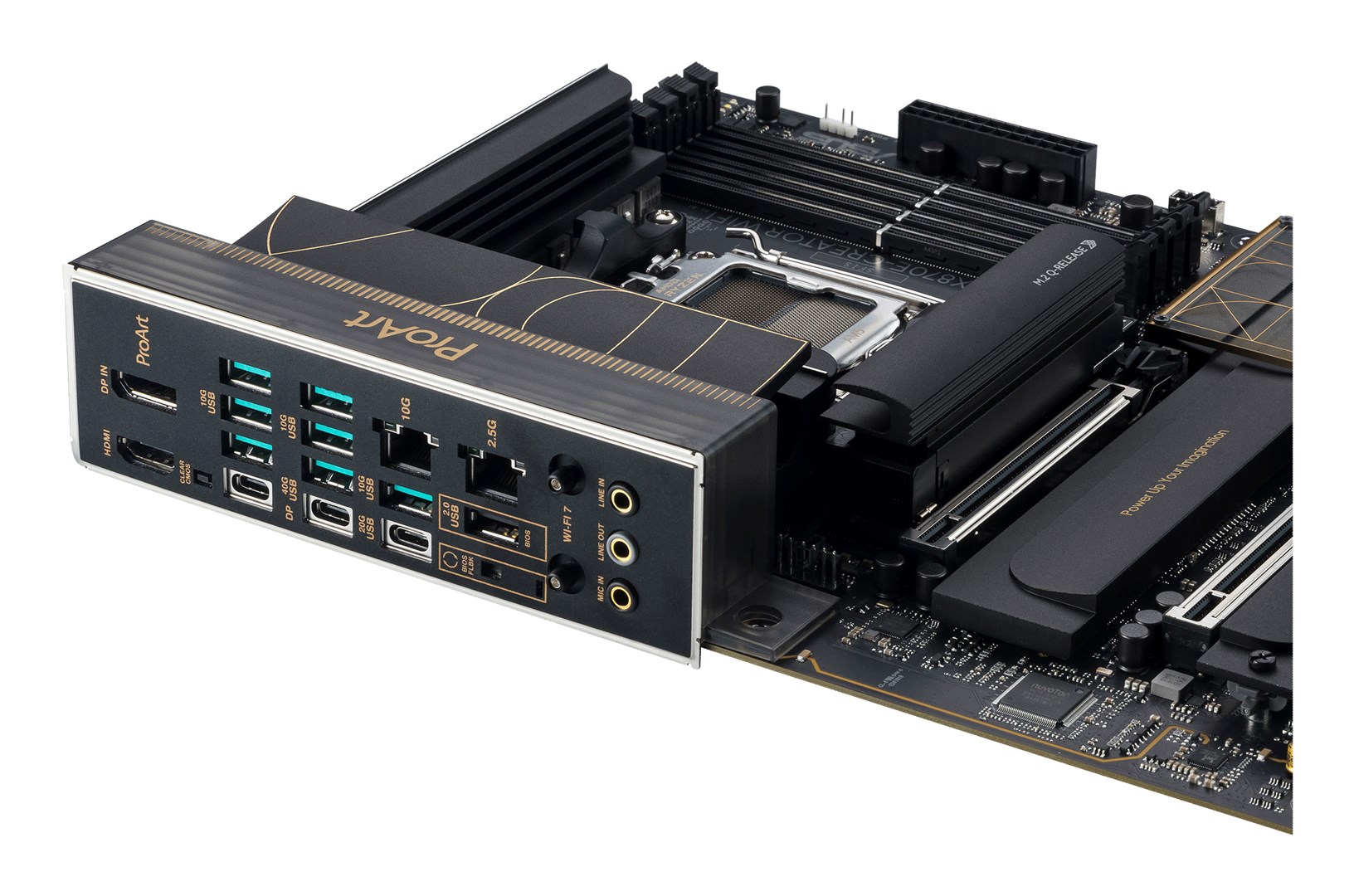

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.​

All You Need for Maximum Productivity
Dual USB4® Connectivity
Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4 port.​

50 IN STOCK

SKU: 90MB1IG0-M0EAY0

Manufacturer: ASUS ASUS

RRP Price €598.34

Specifications

Processor

Processor manufacturer
AMD
Processor socket
Socket AM5
Supported processor sockets
Socket AM5

Memory

Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Maximum internal memory
192 GB
Unbuffered memory
Yes

Storage controllers

Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
8
RAID support
Yes
RAID levels
0, 1, 10, 5

Graphics

Parallel processing technology support
Not supported

Internal I/O

USB 2.0 connectors
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2x2 connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
5
Chassis intrusion connector
Yes
Number of COM connectors
1
12V power connector
Yes

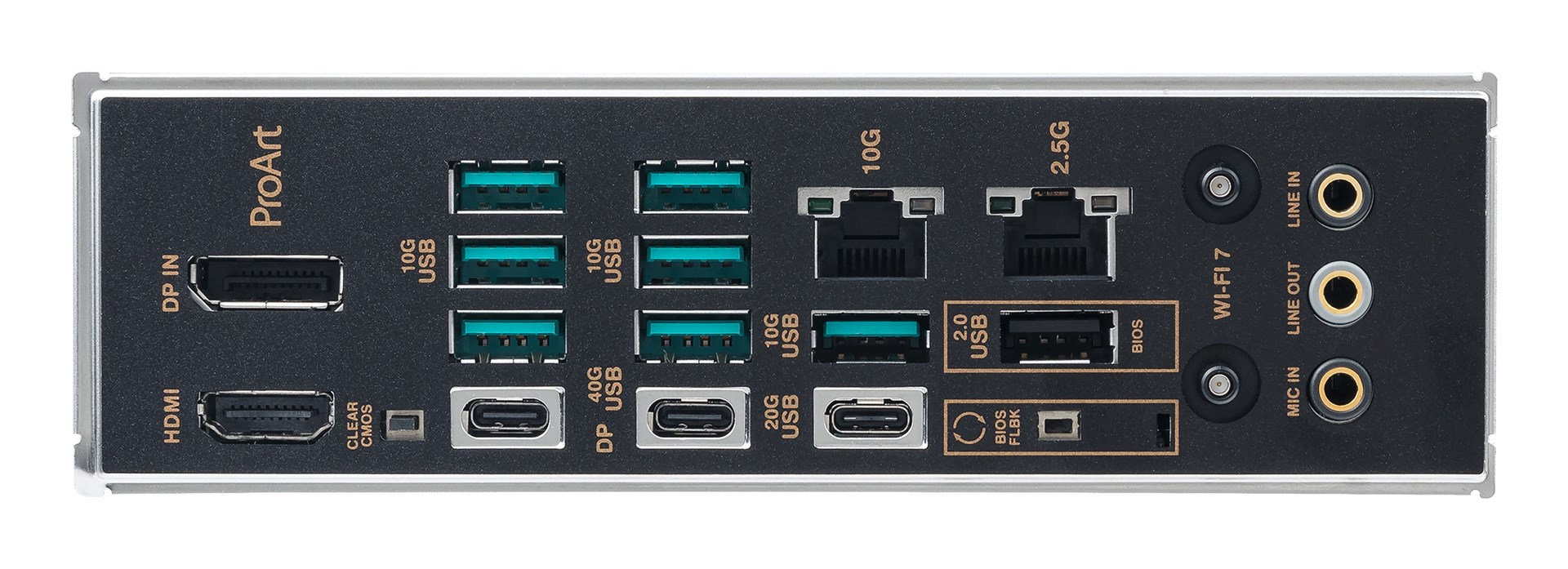

Rear panel I/O ports

USB 2.0 ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
7
USB 3.2 Gen 2x2 Type-C ports quantity
1
USB4 Gen 2x2 ports quantity
2
Ethernet LAN (RJ-45) ports
2
HDMI ports quantity
1
DisplayPorts quantity
1
Microphone in
Yes
WiFi-AP antenna jack
1

Network

Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.4

Features

Motherboard chipset
AMD X870E
Audio chip
Realtek S1220A
Audio output channels
7.1 channels
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 11

Expansion slots

PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
2
Number of M.2 (M) slots
4

BIOS

BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS button
Yes

Weight & dimensions

Width
305 mm
Depth
244 mm

Packaging content

Cables included
DisplayPort, SATA
