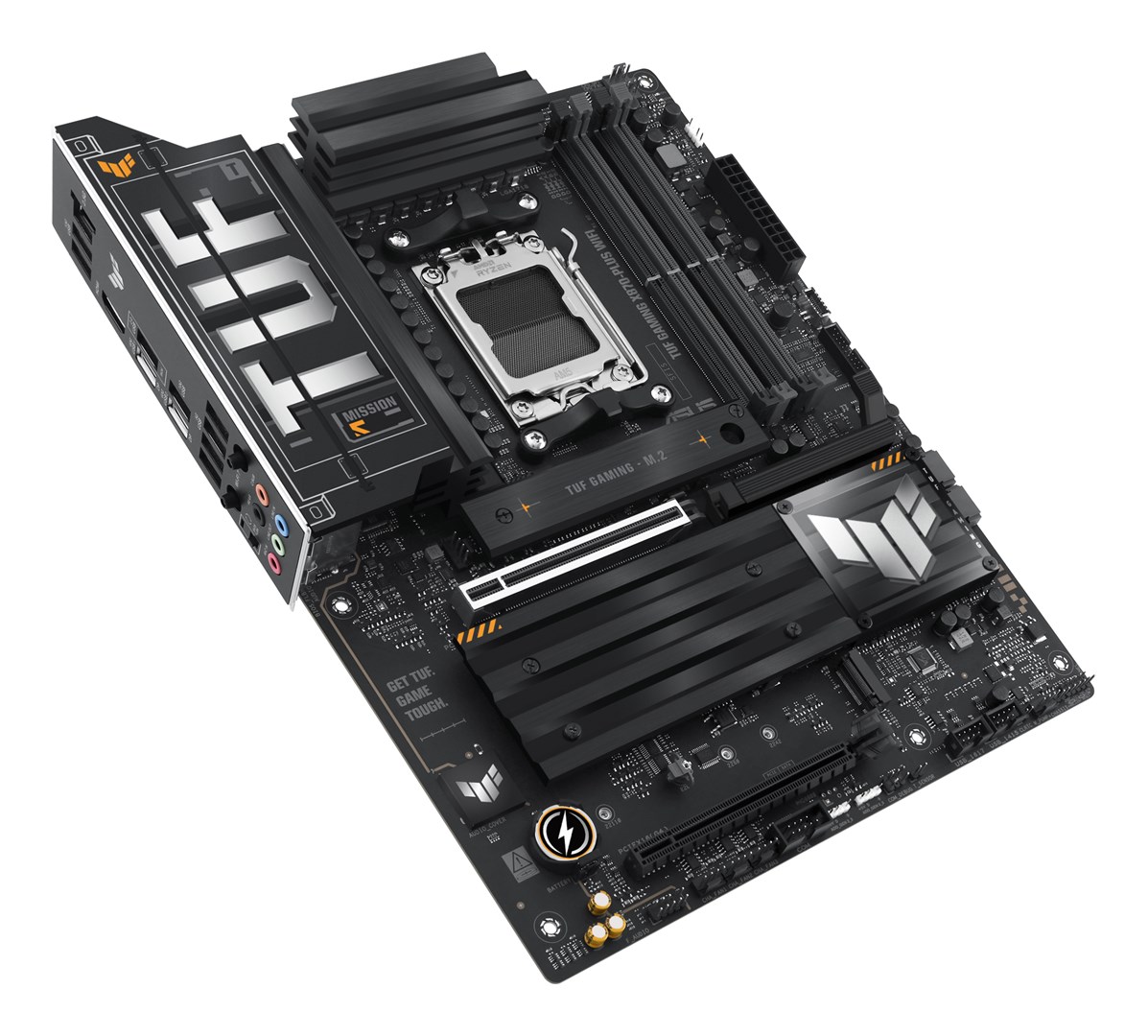

ASUS TUF GAMING X870-PLUS WIFI AMD X870 Socket AM5 ATX

TUF GAMING X870-PLUS WIFI
ASUS TUF GAMING X870-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

33 IN STOCK

SKU: 90MB1IU0-M0EAY0

Manufacturer: ASUS ASUS

RRP Price €352.03

Specifications

Processor

Processor manufacturer
AMD
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Memory

Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speed (max)
8000 MHz
Maximum internal memory
192 GB
Unbuffered memory
Yes

Storage controllers

Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
2
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 5, 10

Graphics

Parallel processing technology support
Not supported
On-board graphics card
No

Internal I/O

USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2x2 connectors
1
Number of SATA III connectors
2
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
4
EPS power connector (8-pin)
Yes
Number of COM connectors
1
12V power connector
Yes

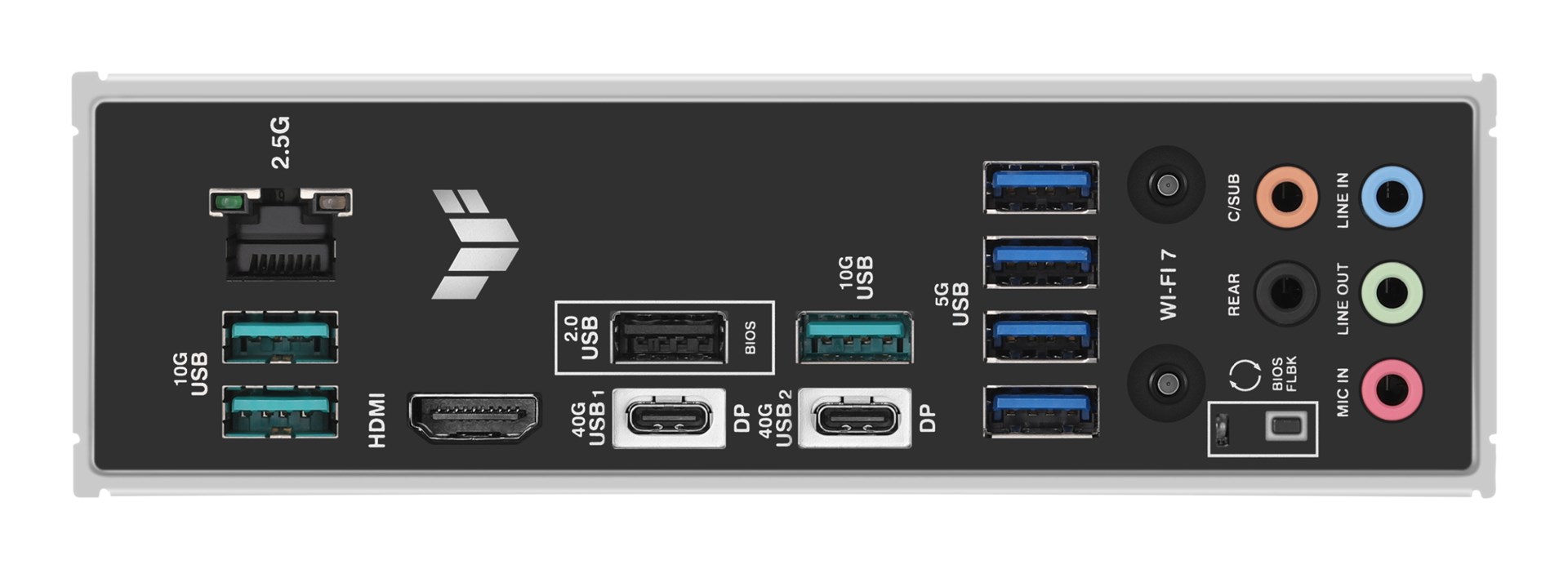

Rear panel I/O ports

USB 2.0 ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB4 Gen 3x2 ports quantity
2
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
Microphone in
Yes
USB connector type
USB Type-A, USB Type-C

Network

Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.4

Features

Motherboard chipset
AMD X870
Audio chip
Realtek ALC1220P
Audio output channels
7.1 channels
Product colour
Black
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 11

Expansion slots

PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
4

BIOS

BIOS type
UEFI AMI
BIOS memory size
256 Mbit

Weight & dimensions

Width
305 mm
Depth
244 mm

Accessories

License
