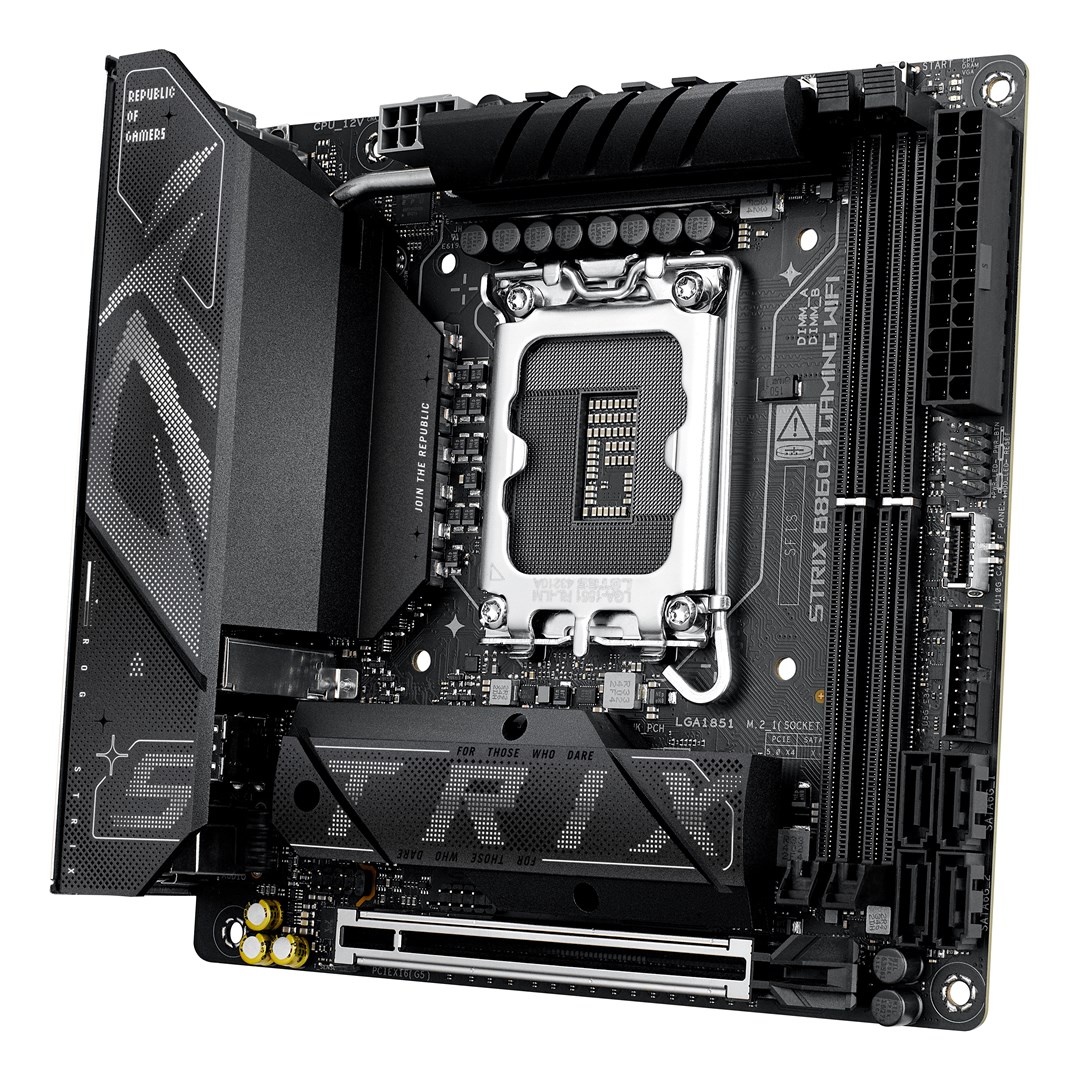

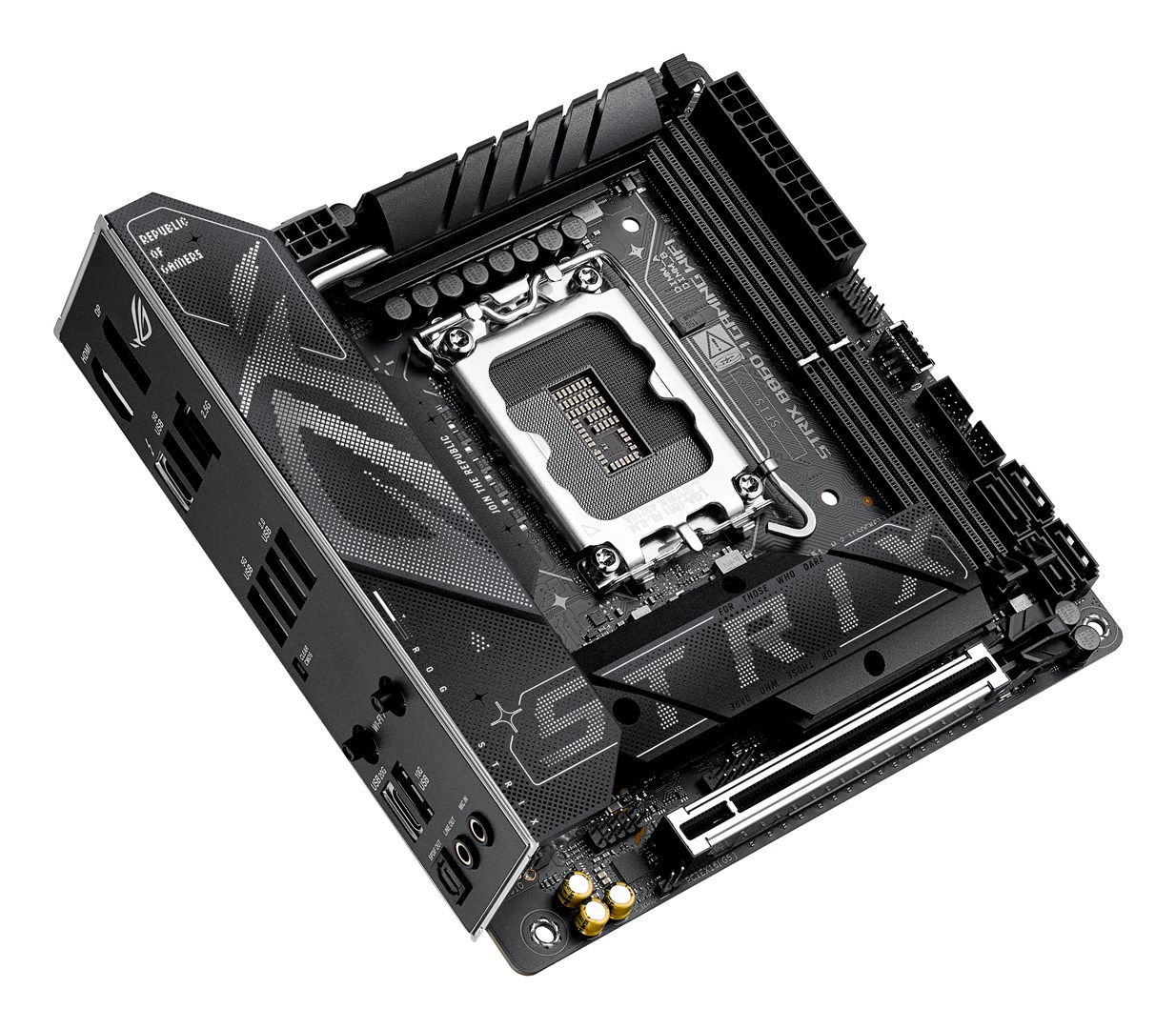

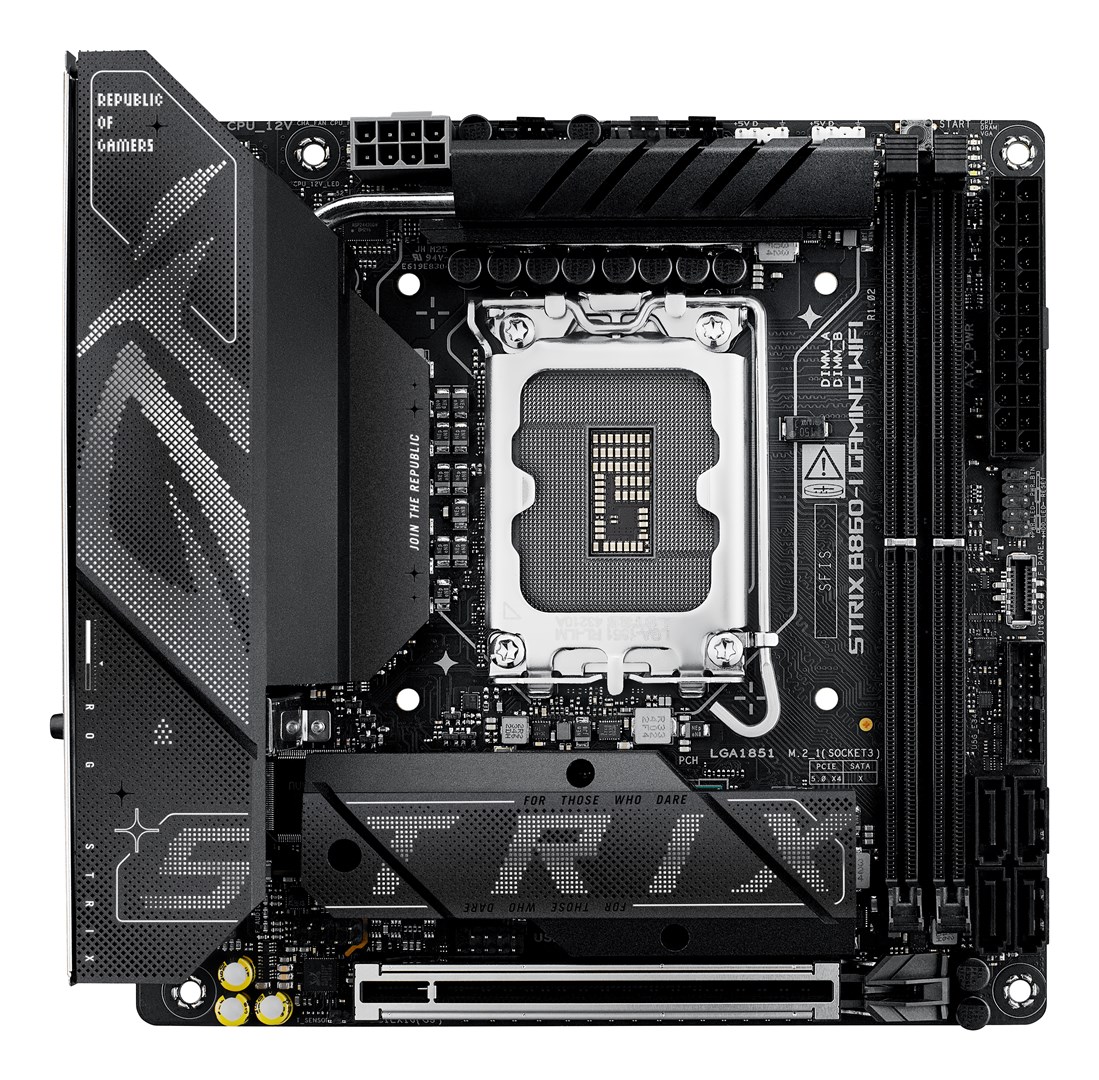

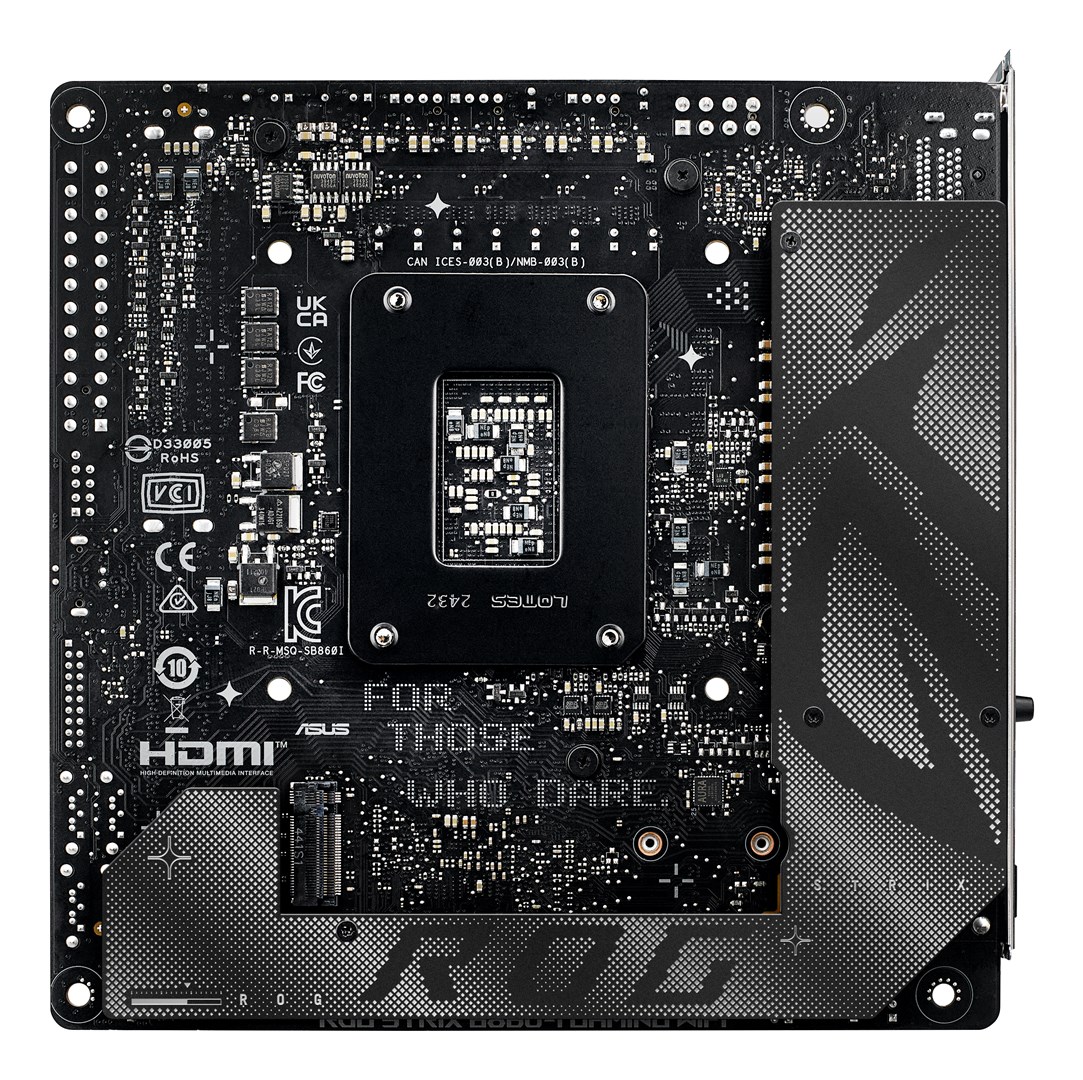

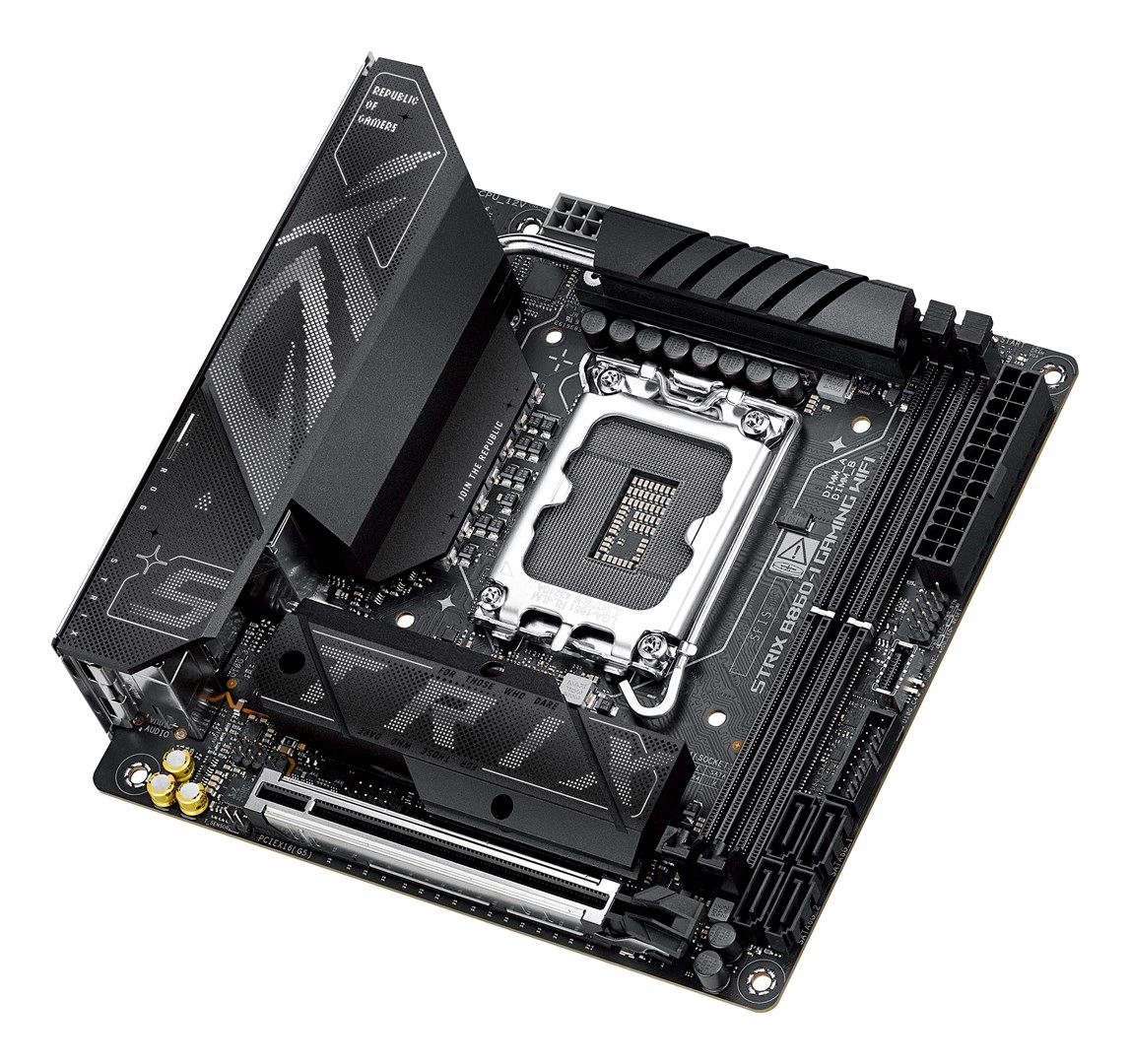

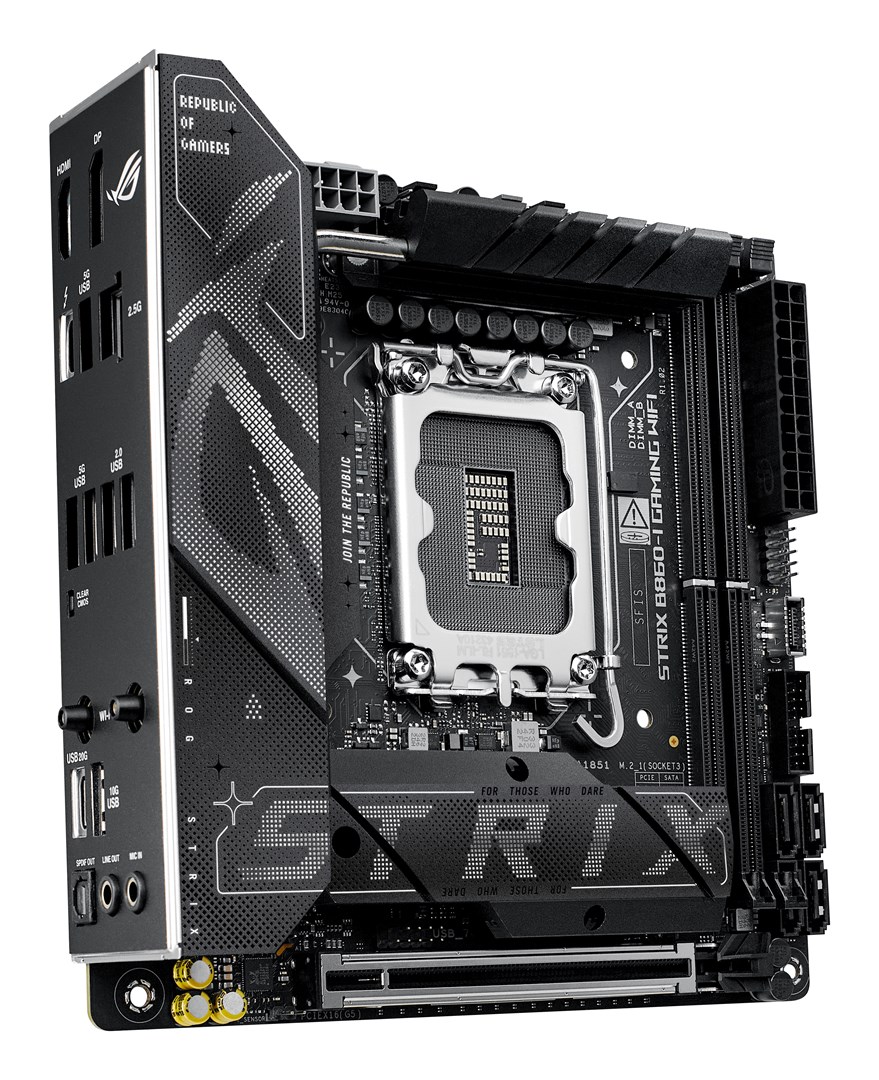

ASUS ROG STRIX B860-I GAMING WIFI Intel B860 LGA 1851 (Socket V1) mini ITX

ROG STRIX B860-I gaming wifi
The ROG Strix B860-I Gaming WiFi is designed to dominate with Intel® Core™ Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt™ 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications.

83 IN STOCK

SKU: 90MB1JB0-M0EAY0

Manufacturer: ASUS ASUS

RRP Price €329.60

Specifications

Processor

Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Compatible processor series
Intel Core Ultra (Series 2)

Memory

Supported memory types
DDR5-SDRAM
Number of memory slots
2
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speed (max)
9066 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes

Storage controllers

Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 5, 10

Graphics

Parallel processing technology support
Not supported
On-board graphics card
No

Internal I/O

USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
1
EPS power connector (8-pin)
Yes
12V power connector
Yes

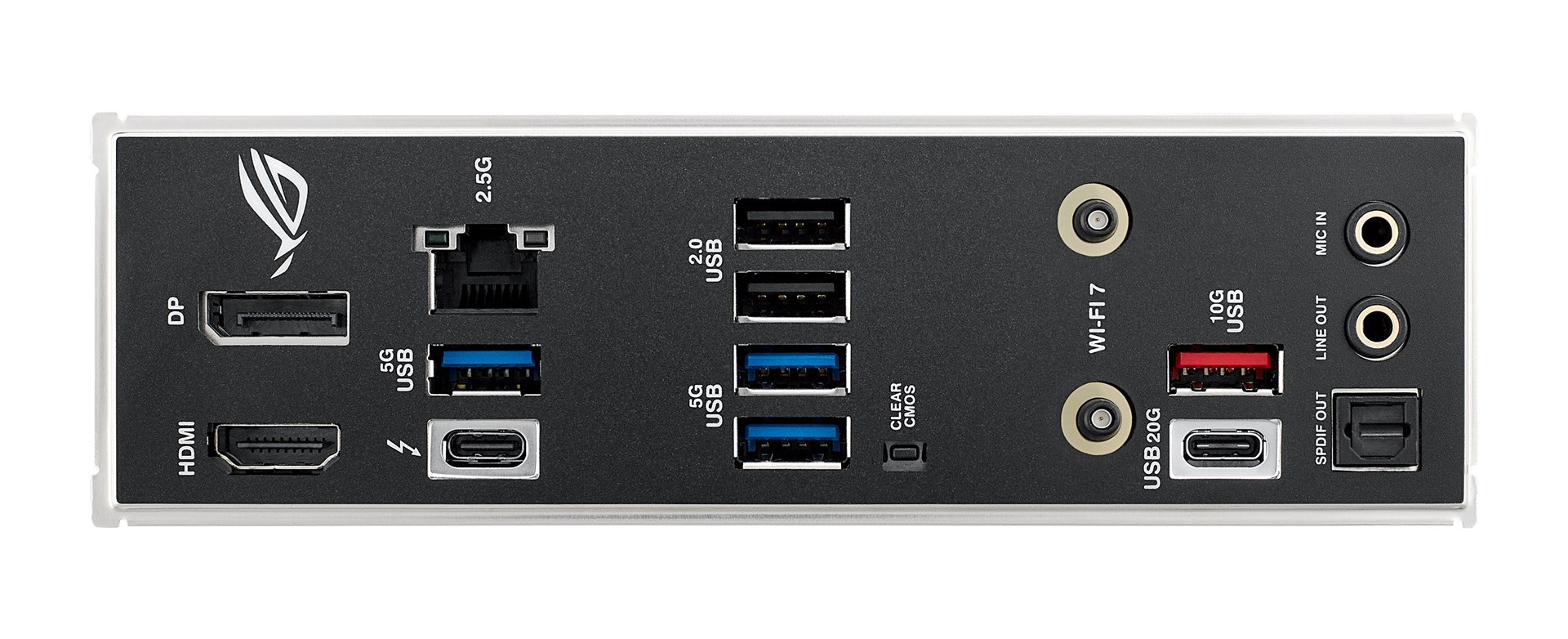

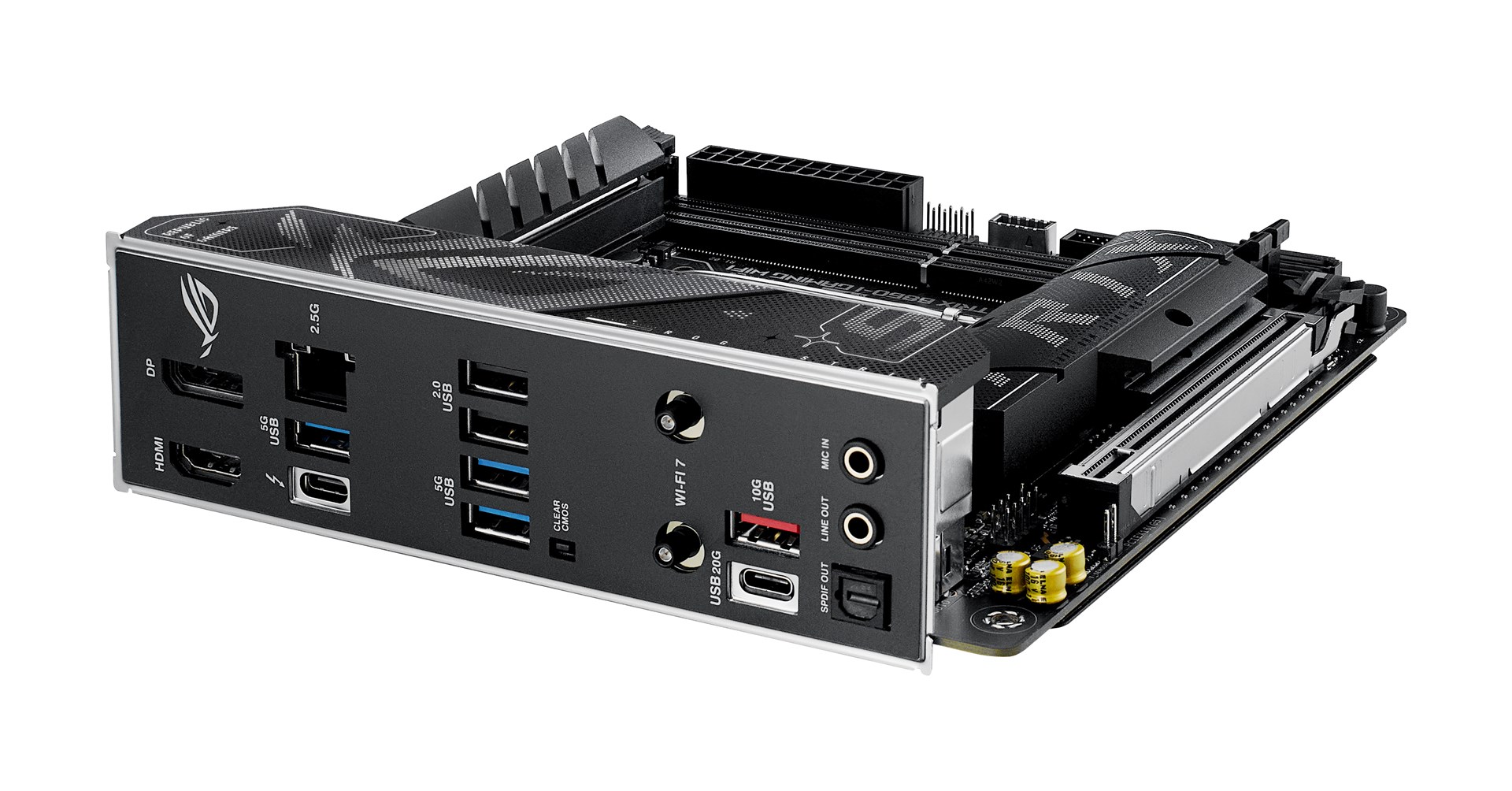

Rear panel I/O ports

USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
DisplayPorts quantity
1
Microphone in
Yes
S/PDIF out port
Yes
Thunderbolt ports quantity
1

Network

Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet

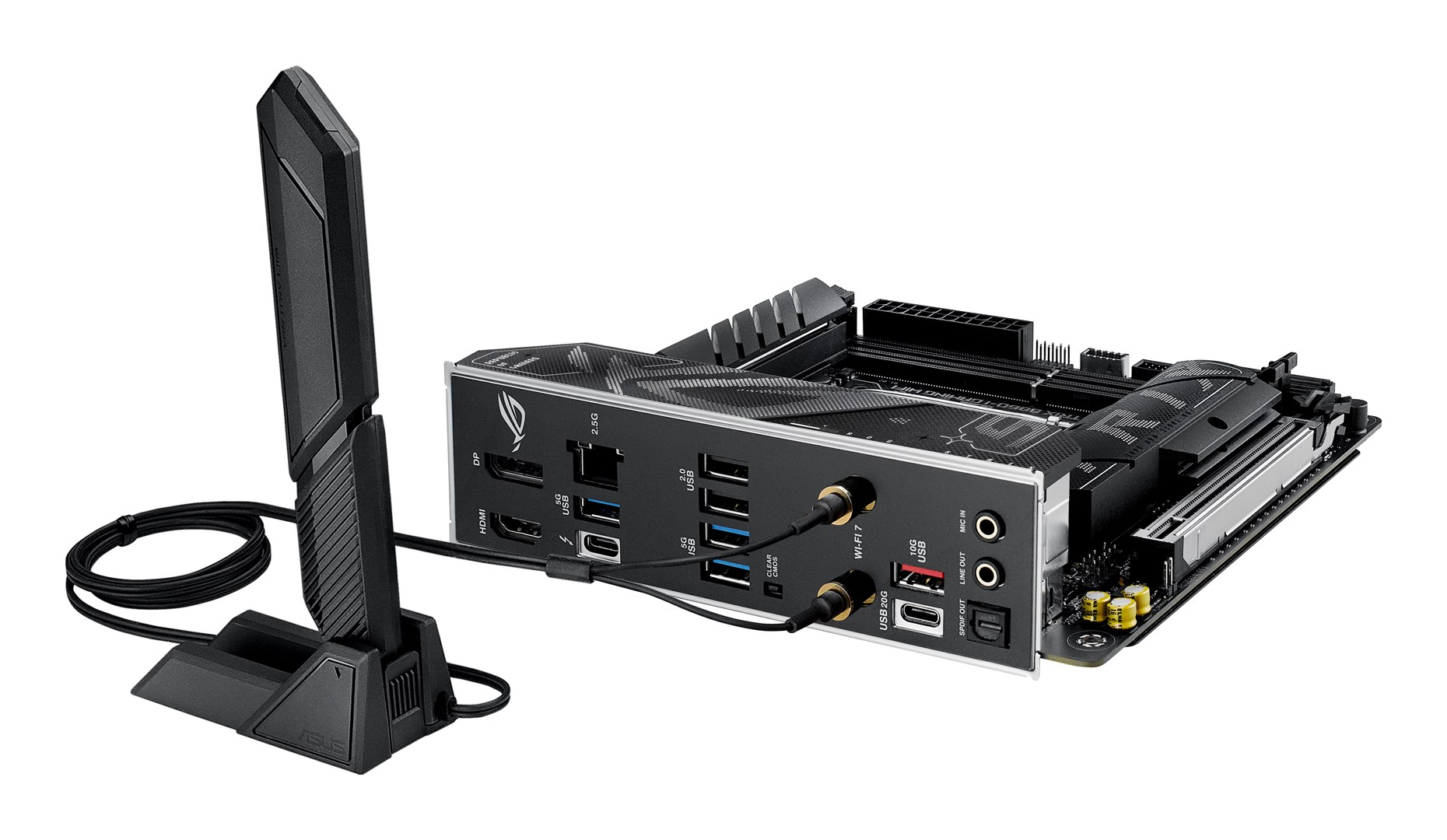

Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.4

Features

Motherboard chipset
Intel B860
Audio chip
Realtek ALC1220P
Audio output channels
7.1 channels
Product colour
Multicolour
Component for
PC
Motherboard form factor
mini ITX
Motherboard chipset family
Intel
Windows operating systems supported
Windows 11

Expansion slots

PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
2

BIOS

BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS button
Yes

Packaging data

Package width
228 mm
Package depth
187 mm
Package height
96 mm
Package weight
1.47 kg

Weight & dimensions

Width
170 mm
Depth
170 mm

Other features

Weight
812.6 g

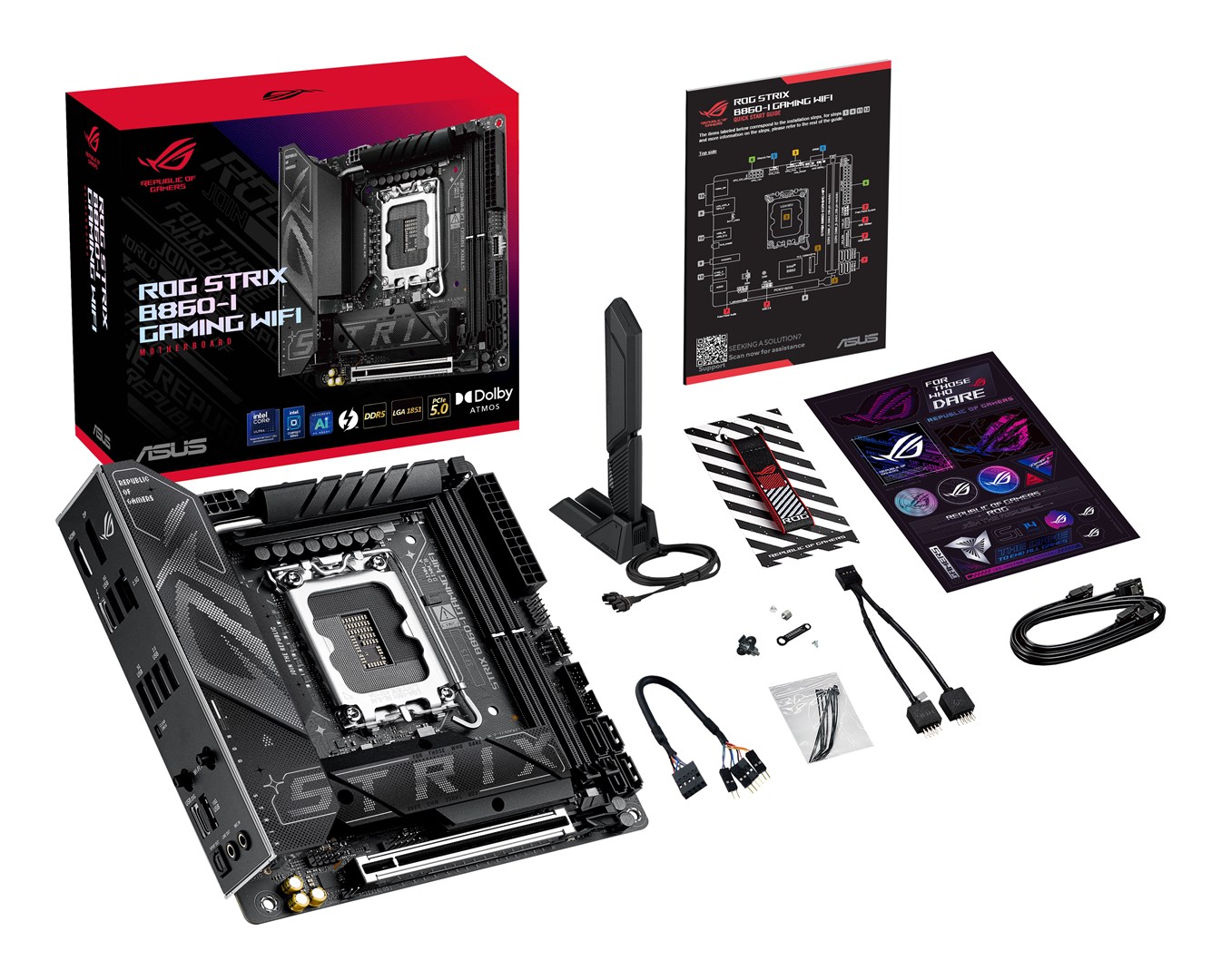

Accessories
