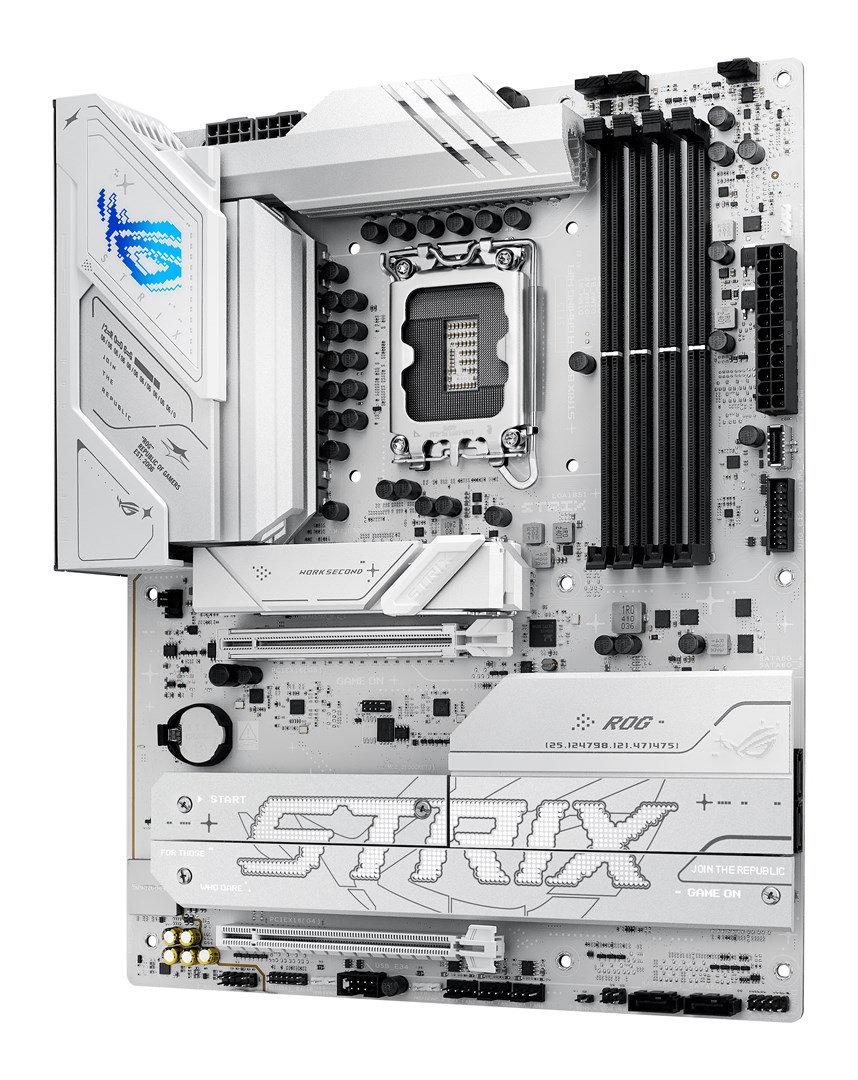

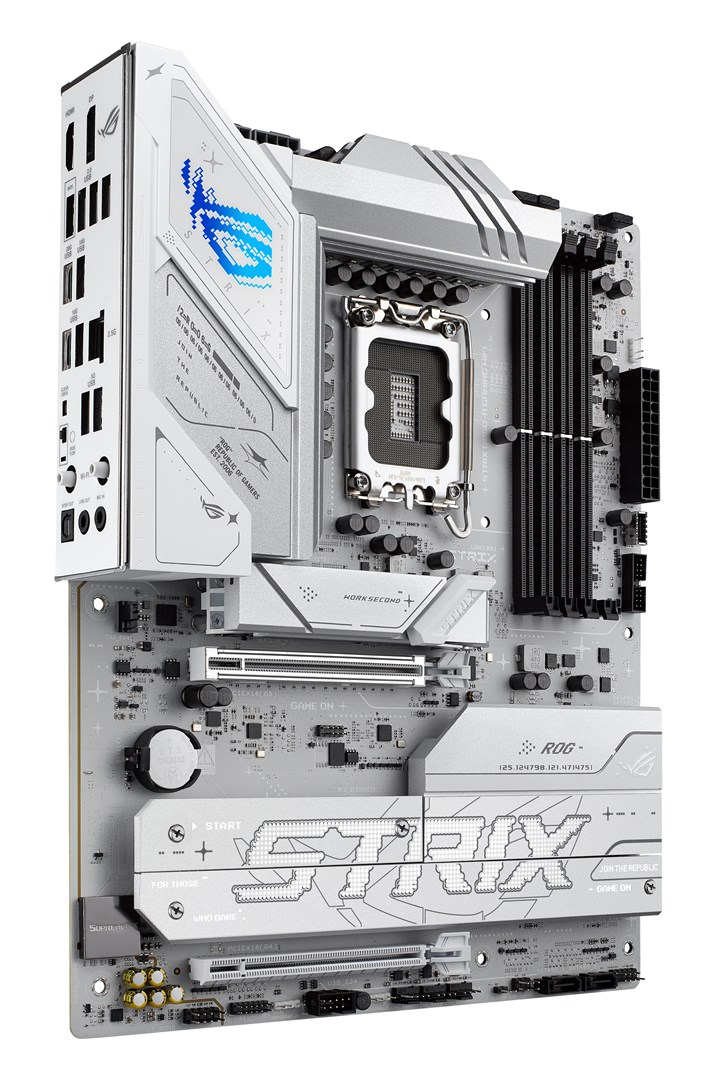

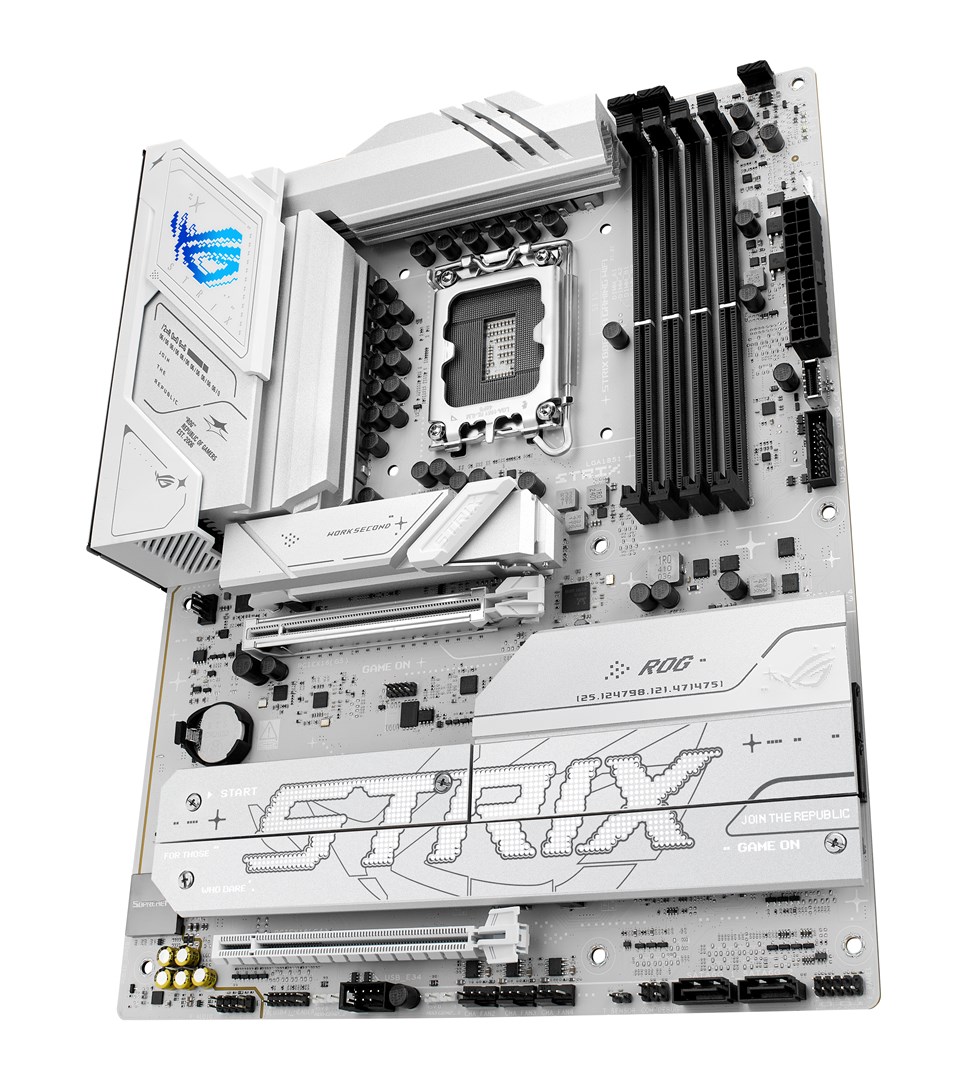

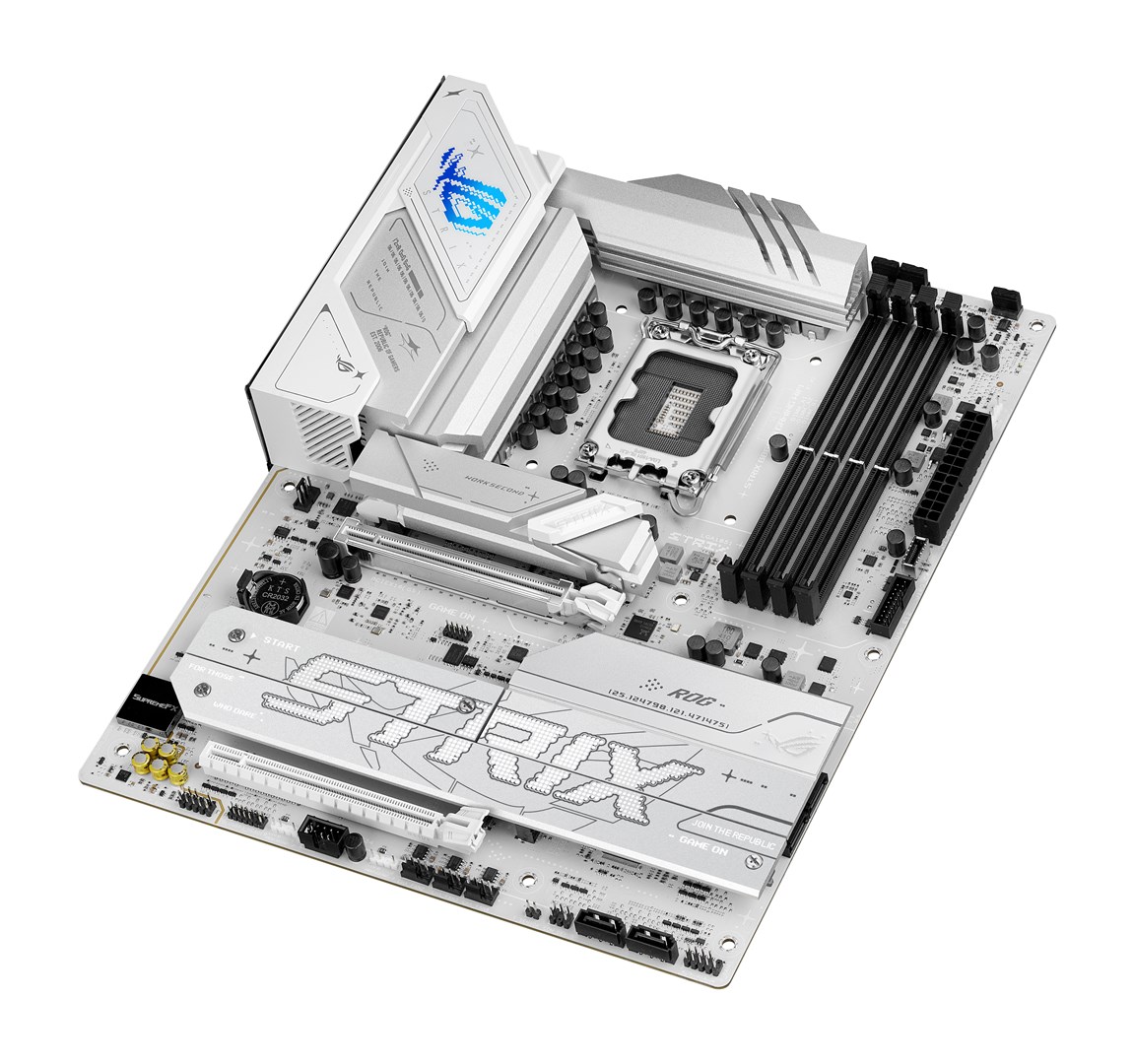

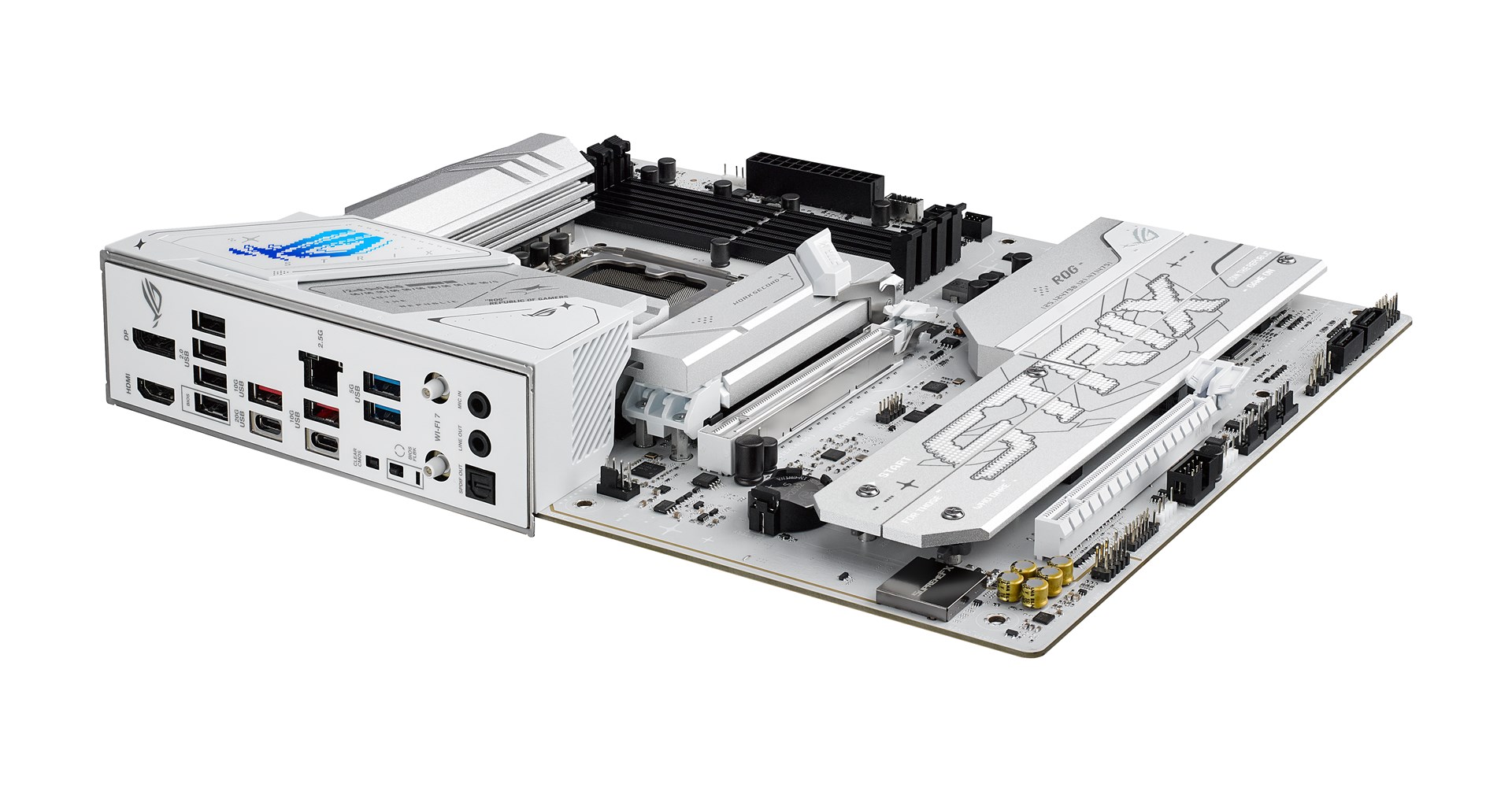

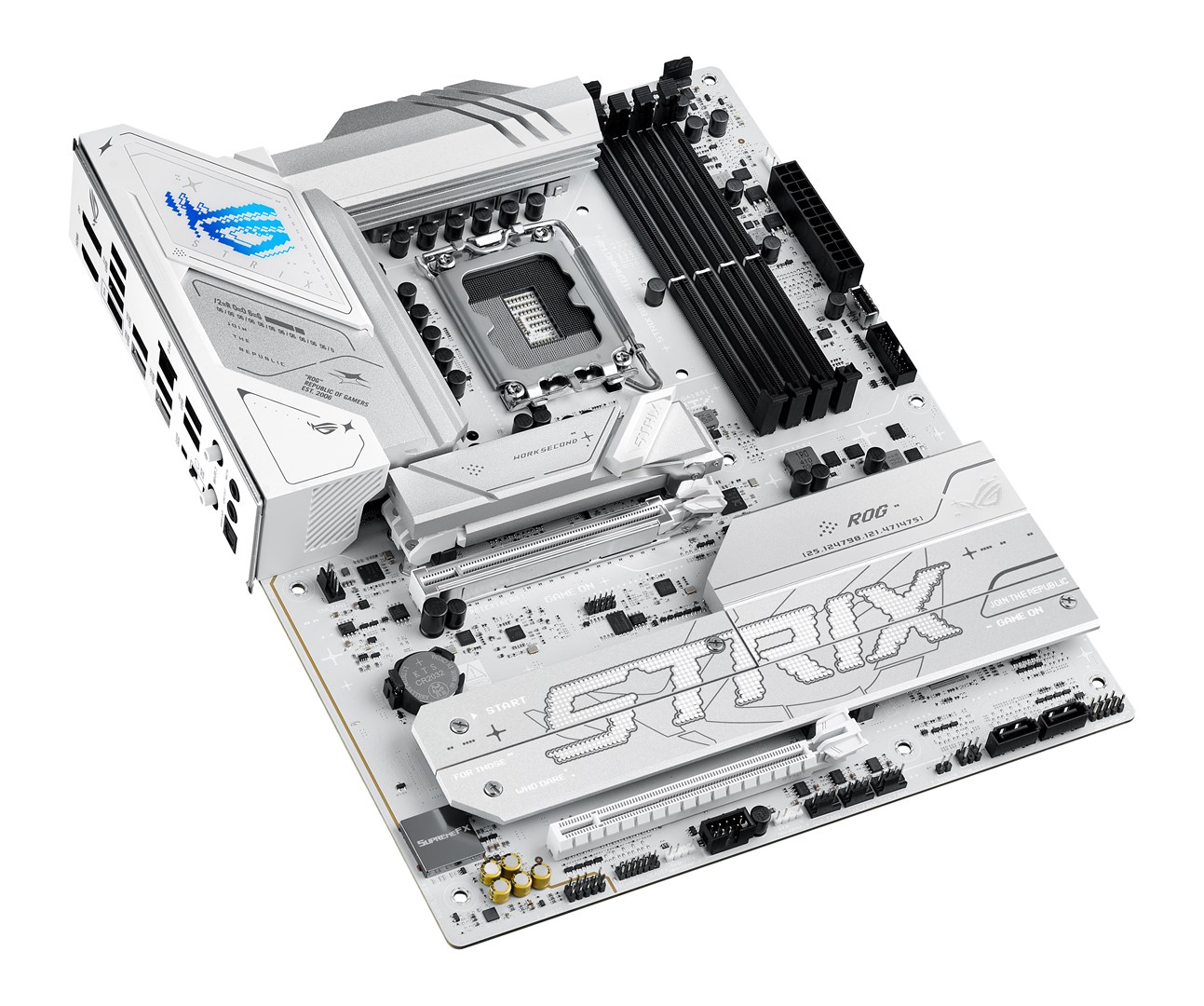

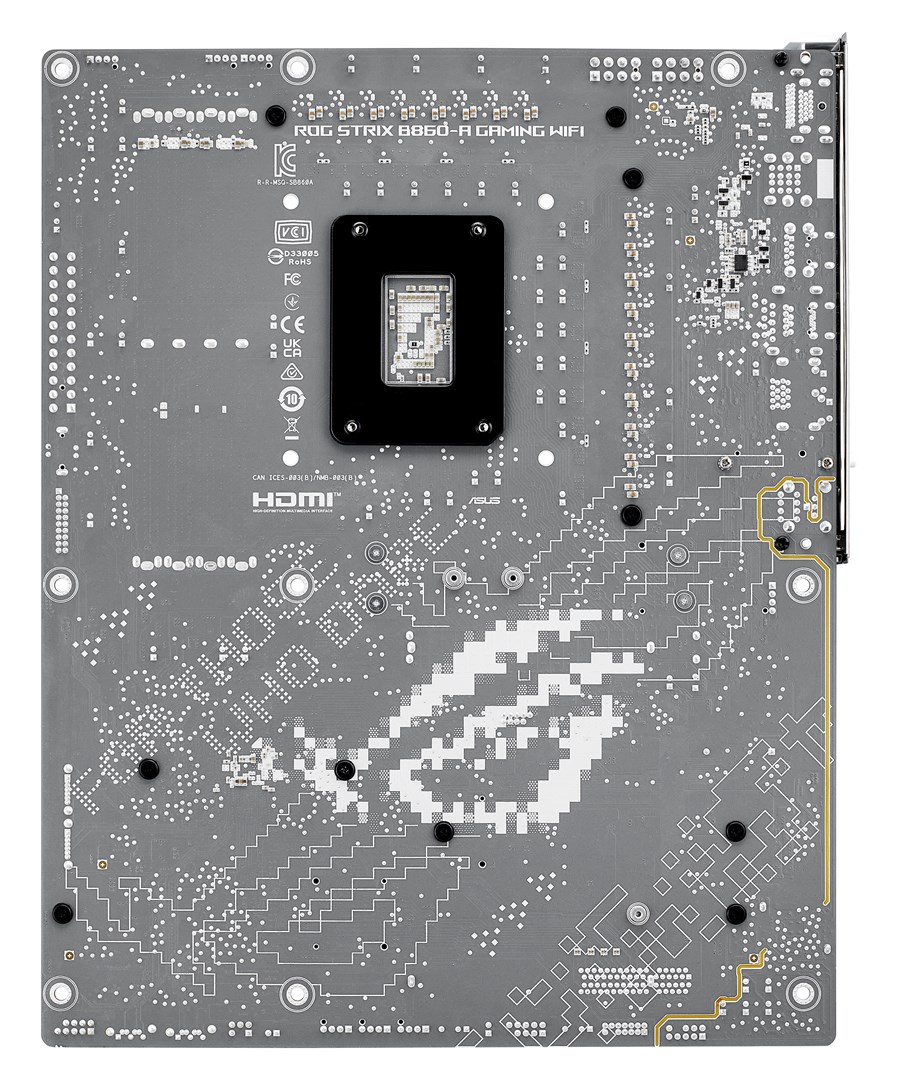

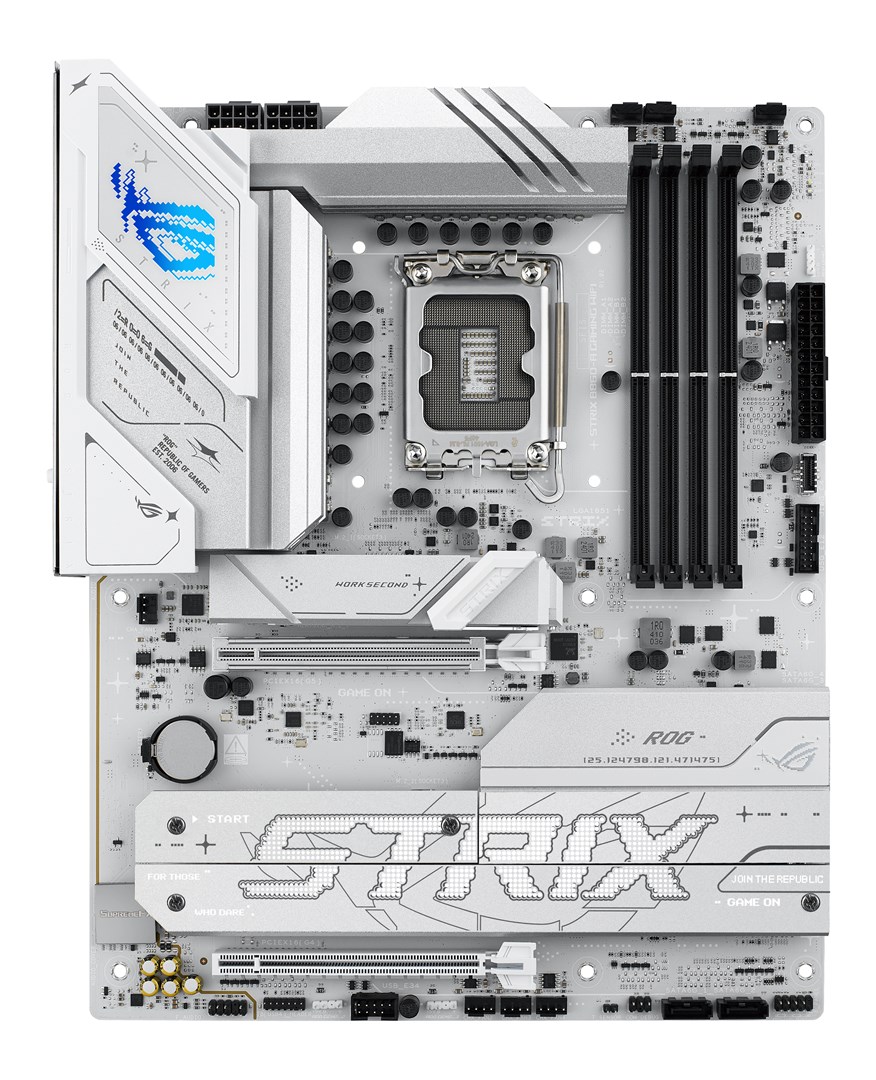

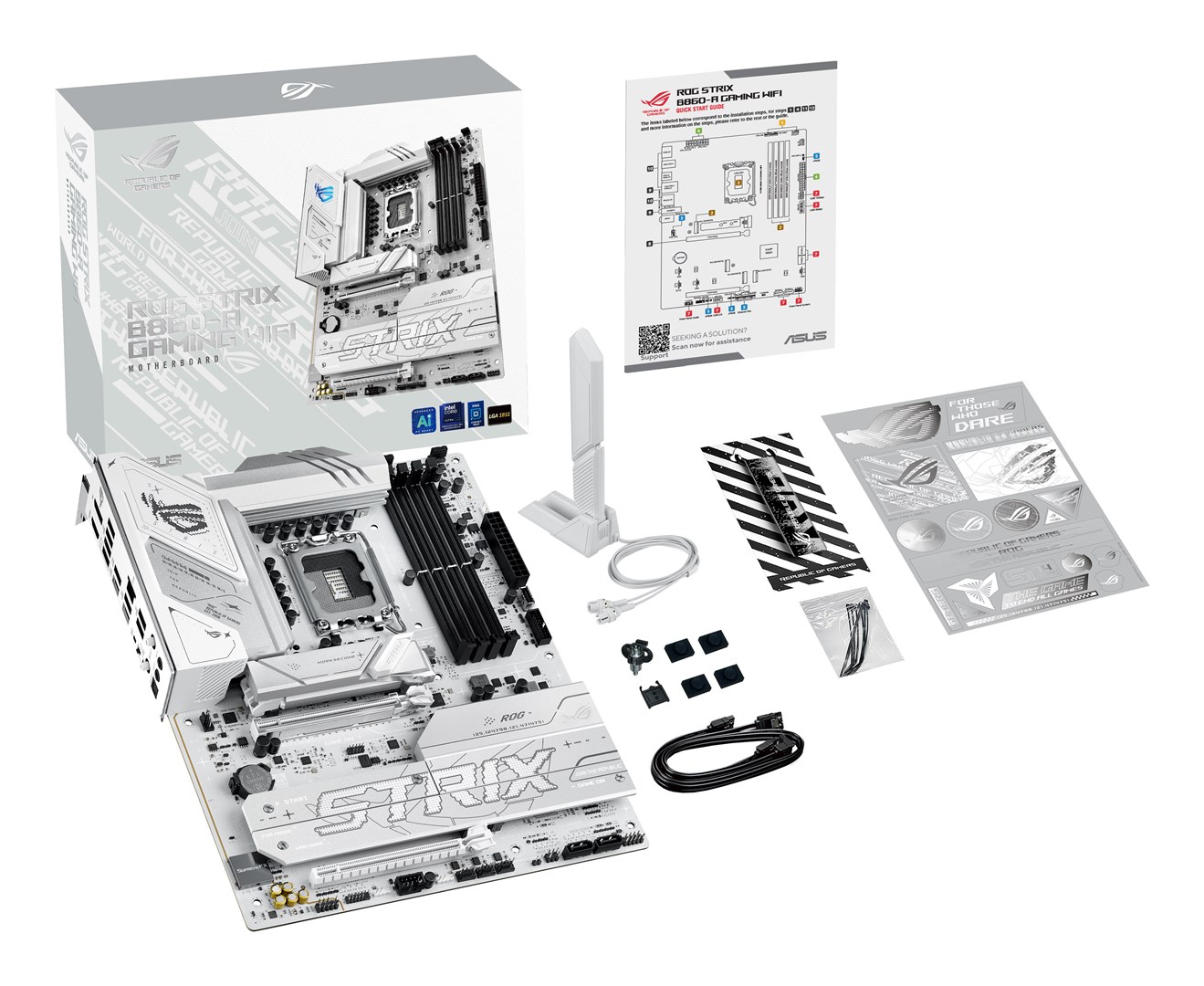

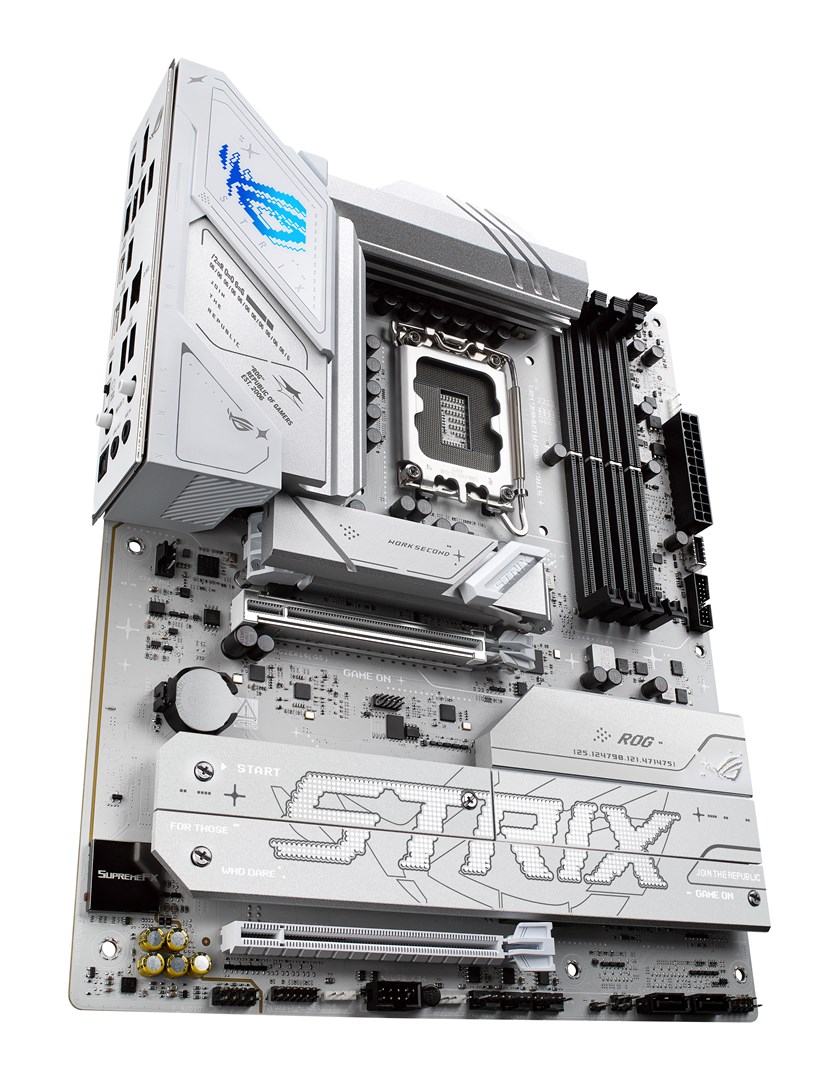

ASUS ROG STRIX B860-A GAMING WIFI Intel B860 LGA 1851 (Socket V1) ATX

ROG STRIX B860-A gaming wifi
With NPU support and AI-enhanced solutions, the ROG STRIX B860-A Gaming WiFi is ready for advanced AI PC applications. Featuring a USB4® (20Gbps) port, PCIe® 5.0, and Aura Sync RGB lighting, it offers fast data transfers, versatile connectivity, and a customizable aesthetic to match your style.

15 IN STOCK

SKU: 90MB1JI0-M0EAY0

Manufacturer: ASUS ASUS

RRP Price €332.27

Specifications

Processor

Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Compatible processor series
Intel Core Ultra (Series 2)

Memory

Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory slots type
DIMM
ECC сompatibility
Non-ECC
Supported memory clock speed (max)
8600 MHz
Maximum internal memory
256 GB
Unbuffered memory
Yes

Storage controllers

Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
8
RAID support
Yes
RAID levels
0, 1, 5, 10

Graphics

Parallel processing technology support
Not supported

Internal I/O

USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
4
EPS power connector (8-pin)
Yes
Thunderbolt headers
1
12V power connector
Yes

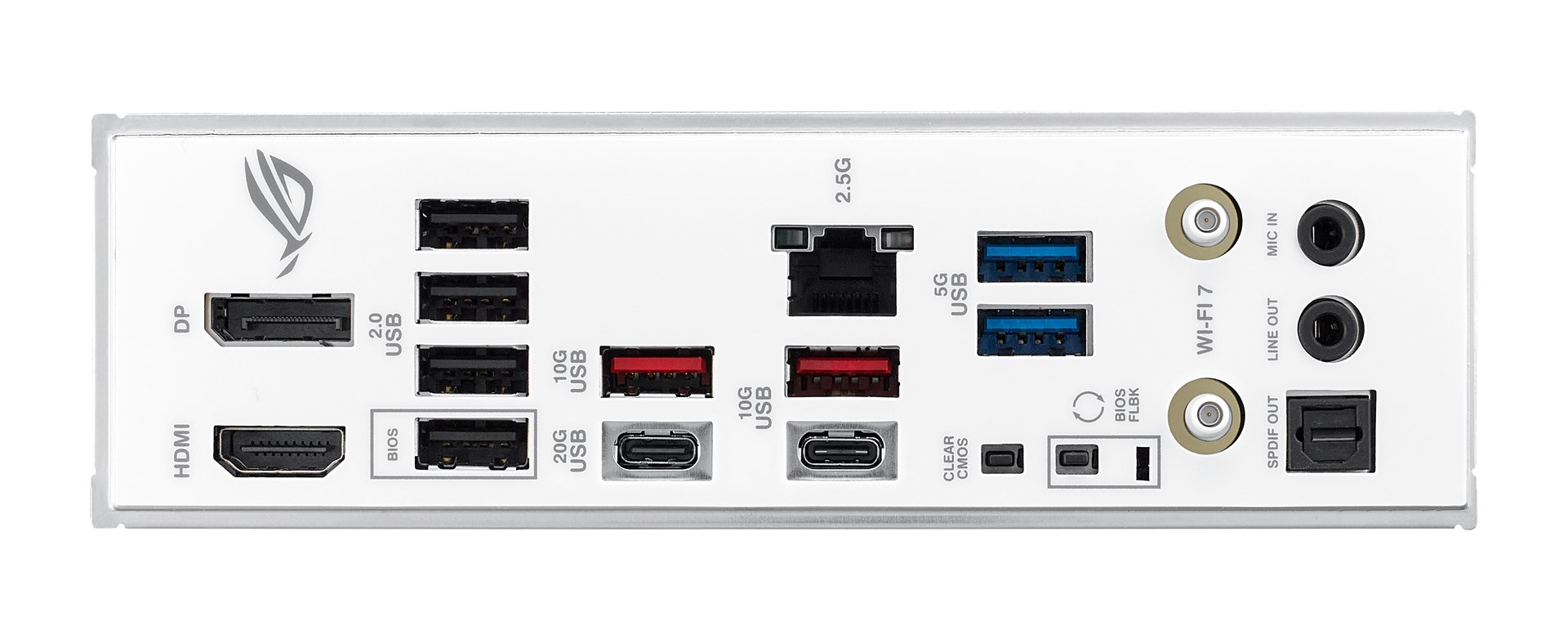

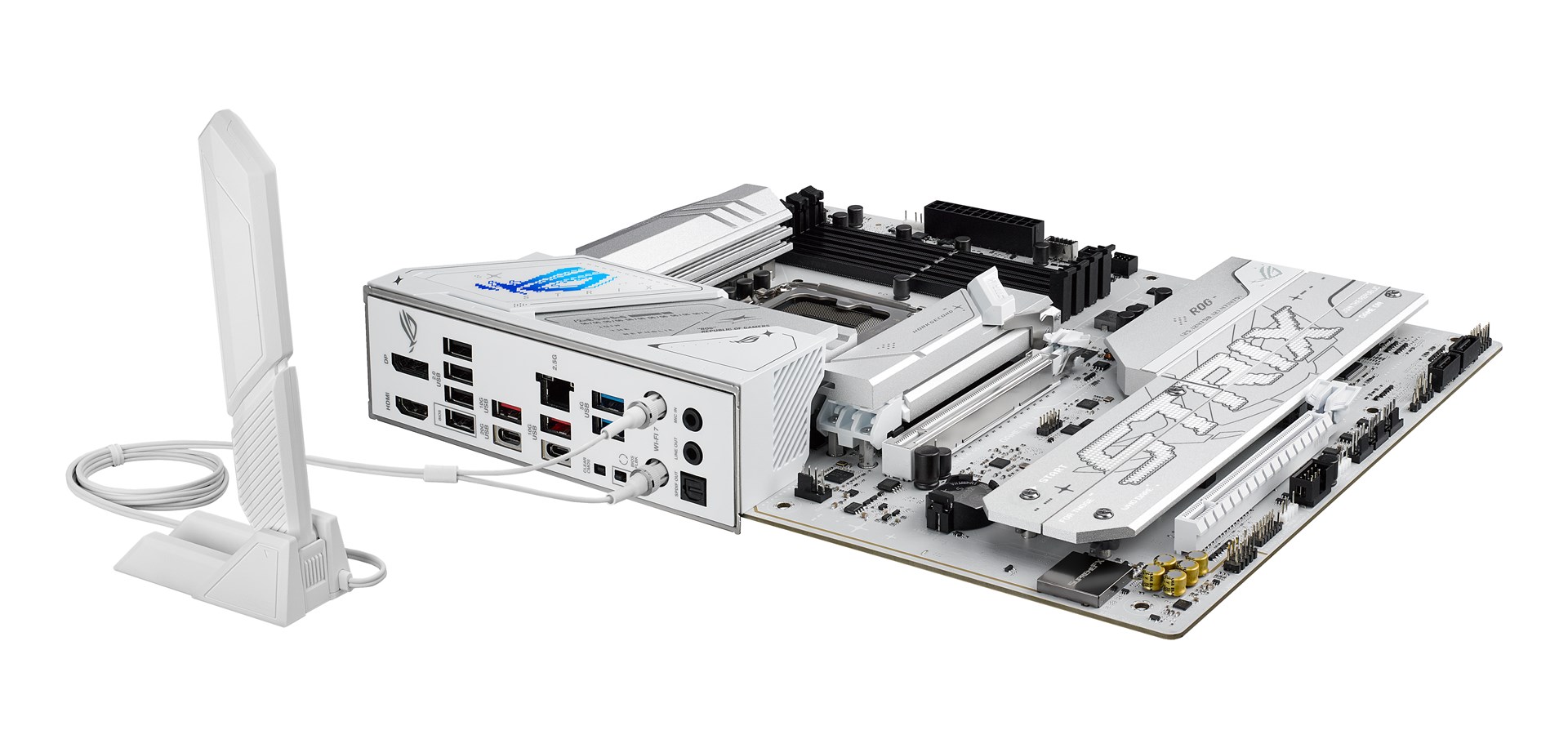

Rear panel I/O ports

USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB4 Gen 2x2 ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
DisplayPorts quantity
1
Microphone in
Yes
S/PDIF out port
Yes

Network

Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.4

Features

Motherboard chipset
Intel B860
Audio chip
Realtek ALC1220P
Audio output channels
7.1 channels
Product colour
White
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
Intel
Windows operating systems supported
Windows 11

Expansion slots

PCI Express x16 (Gen 4.x) slots
1

BIOS

BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS button
Yes

Packaging data

Package width
355 mm
Package depth
273 mm
Package height
70 mm
Package weight
1.68 kg

Weight & dimensions

Width
305 mm
Depth
244 mm
Height
50 mm

Other features

Weight
1.4 kg

Accessories

License
