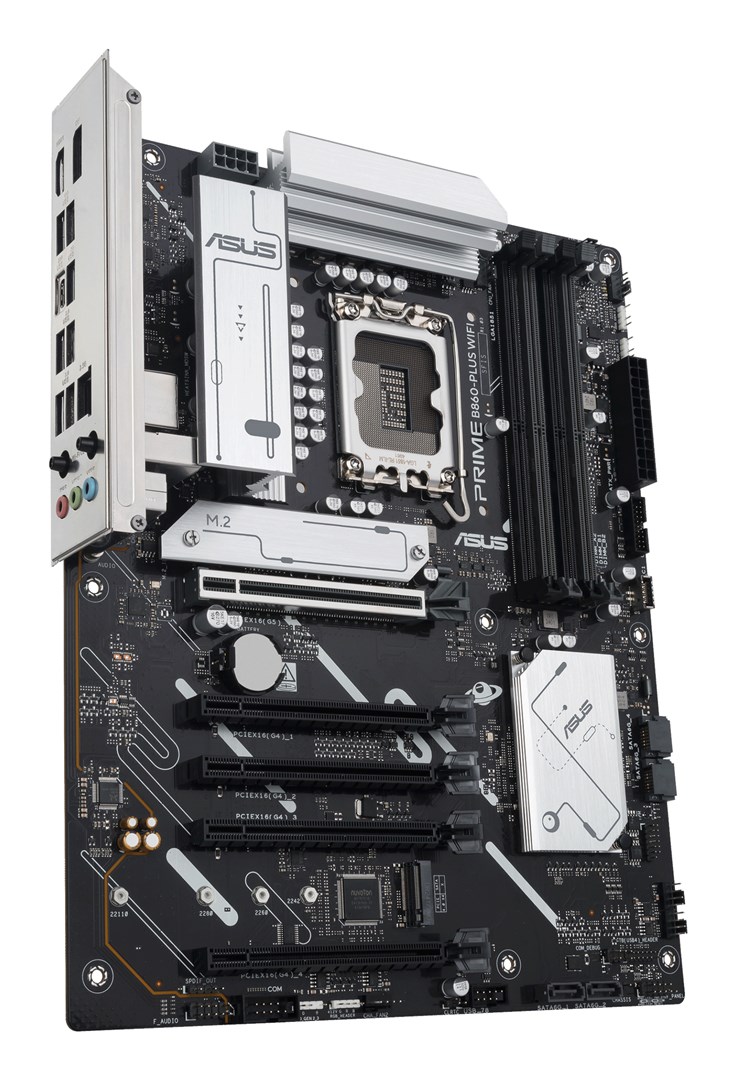

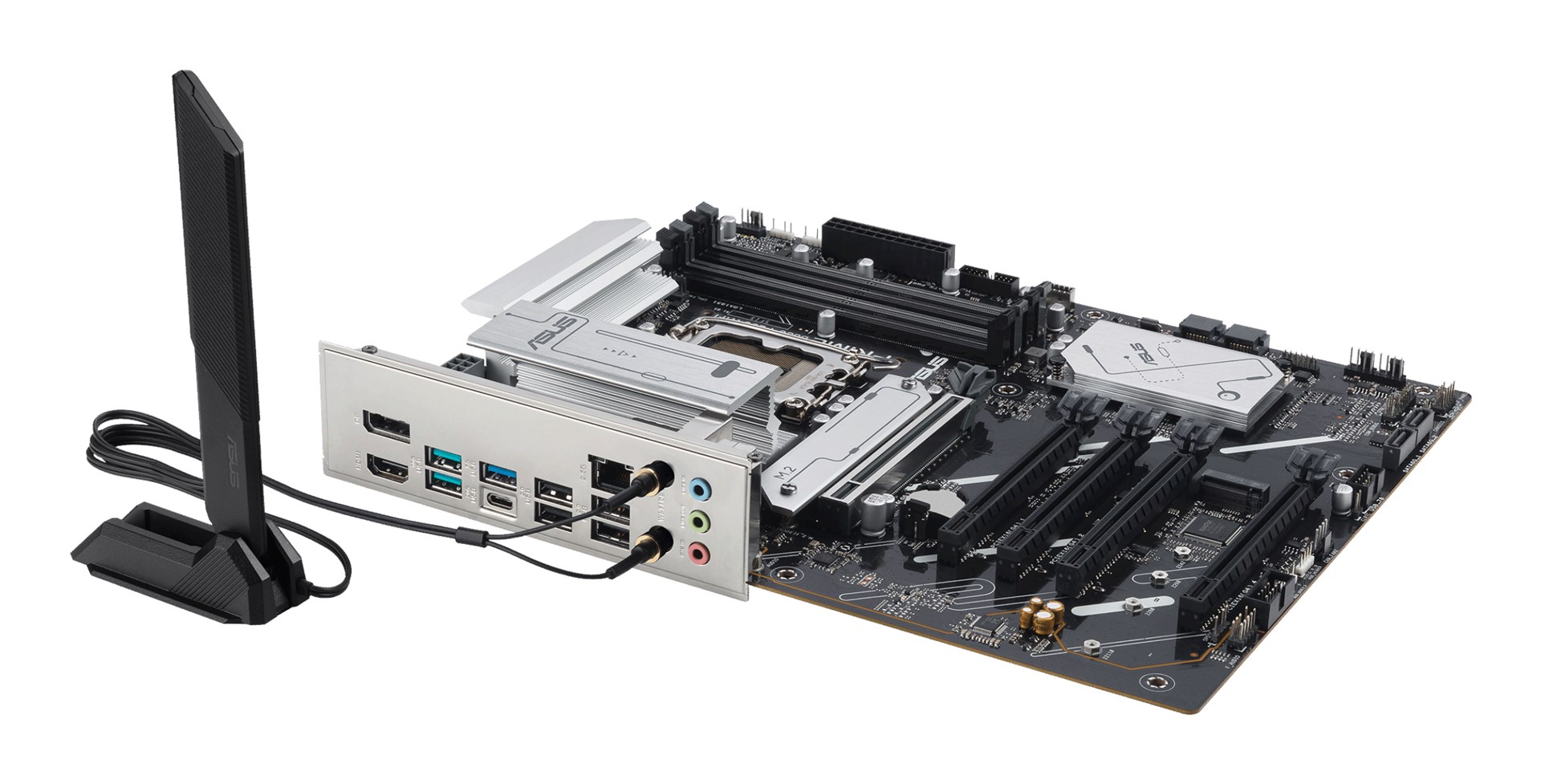

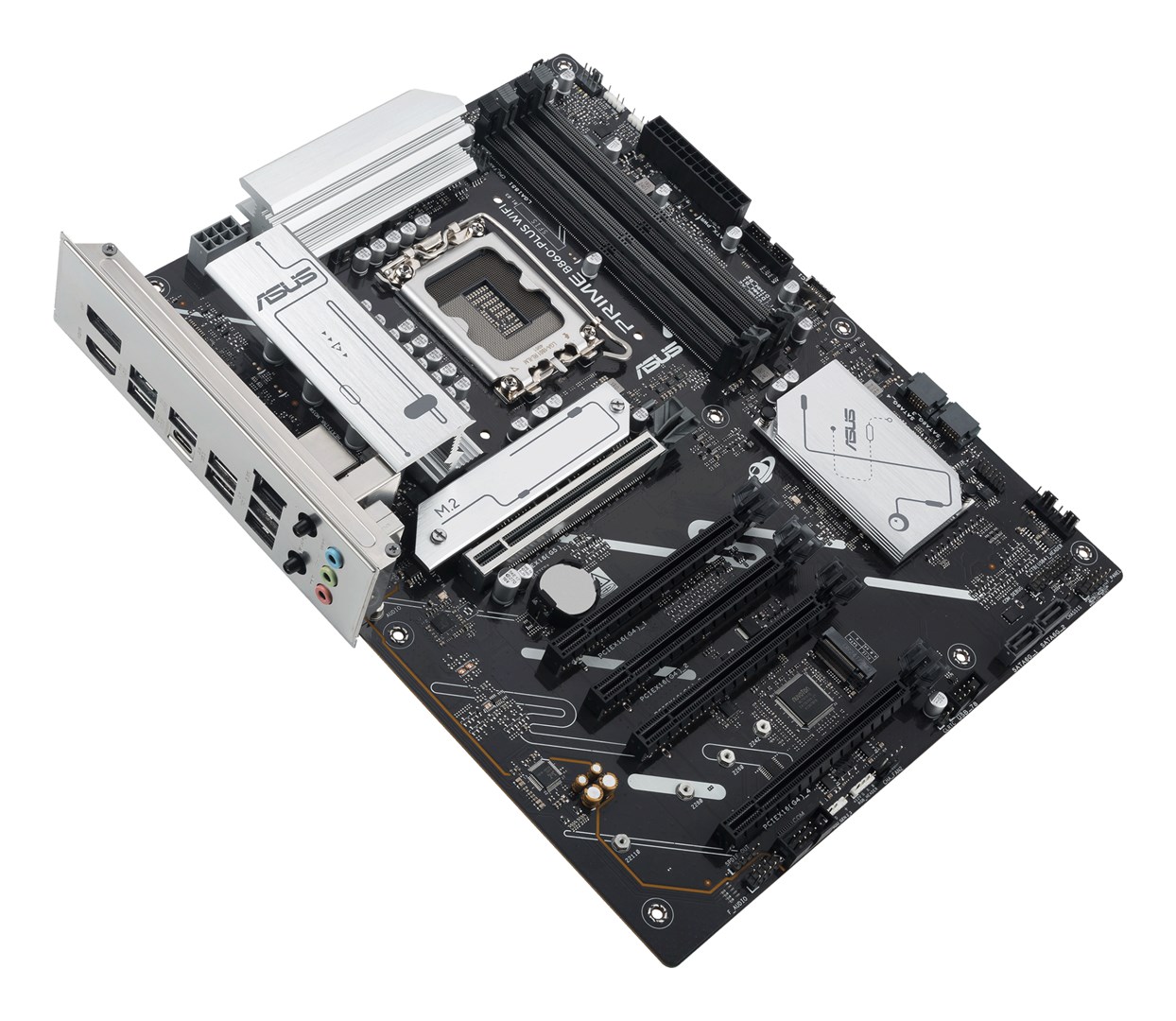

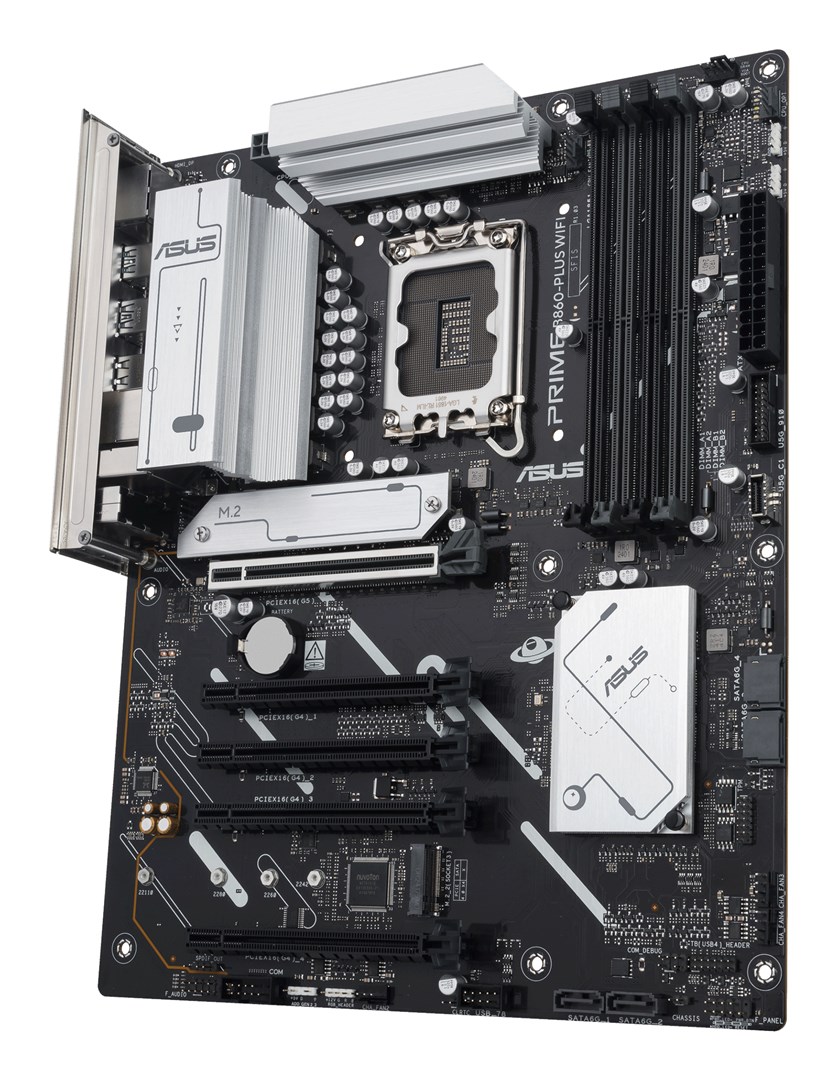

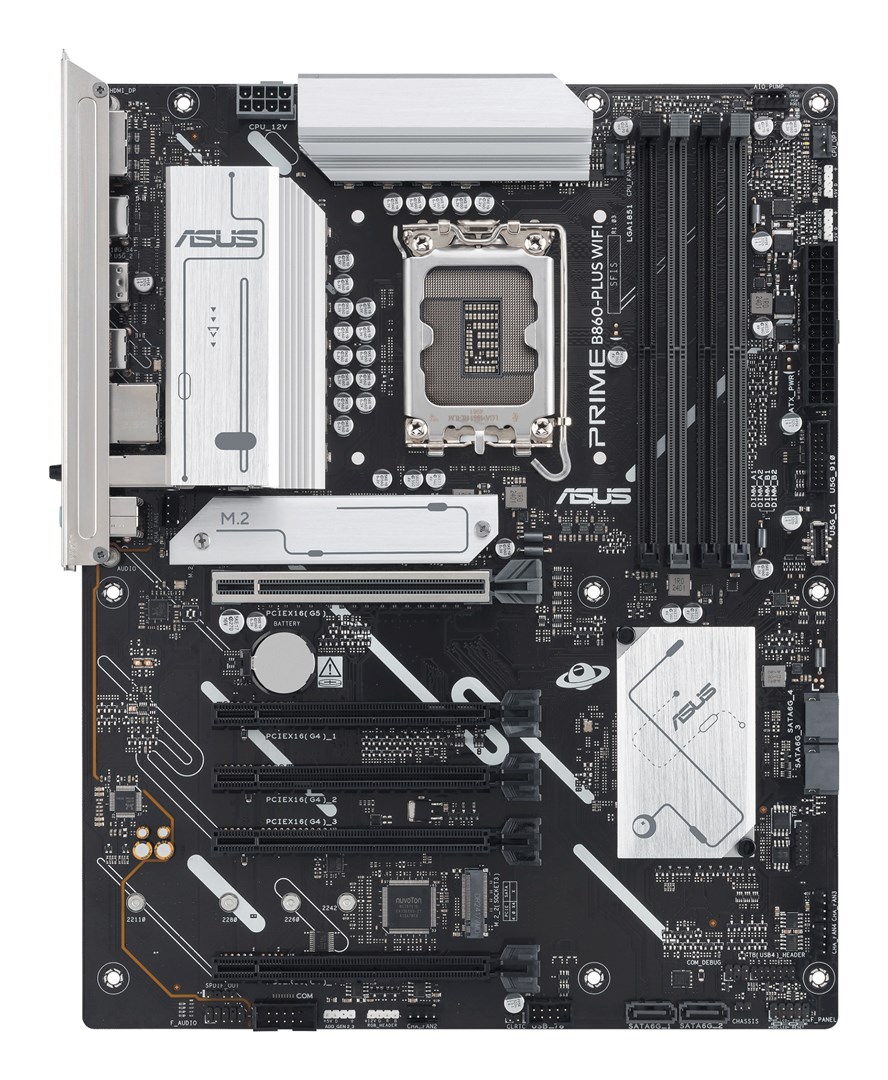

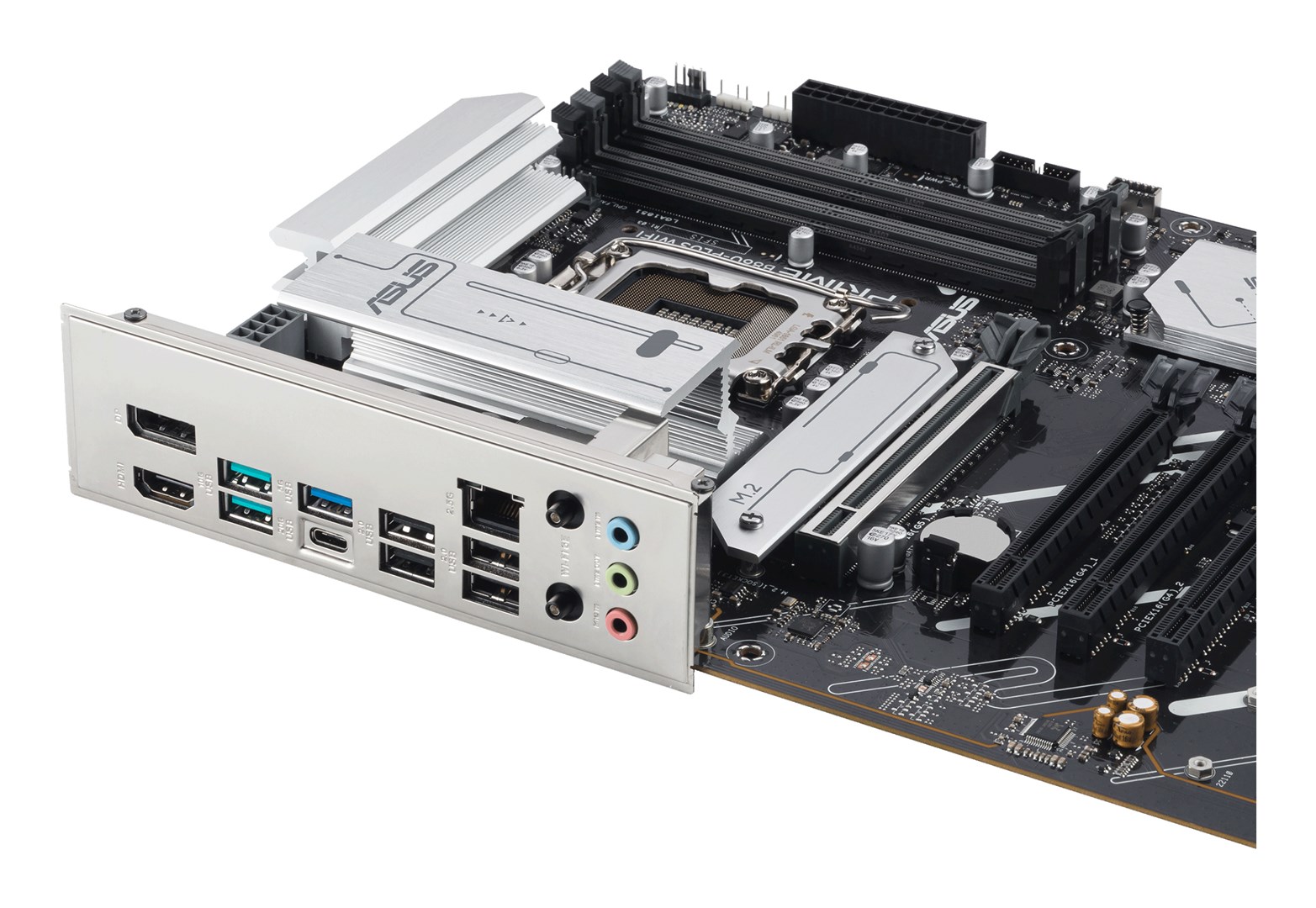

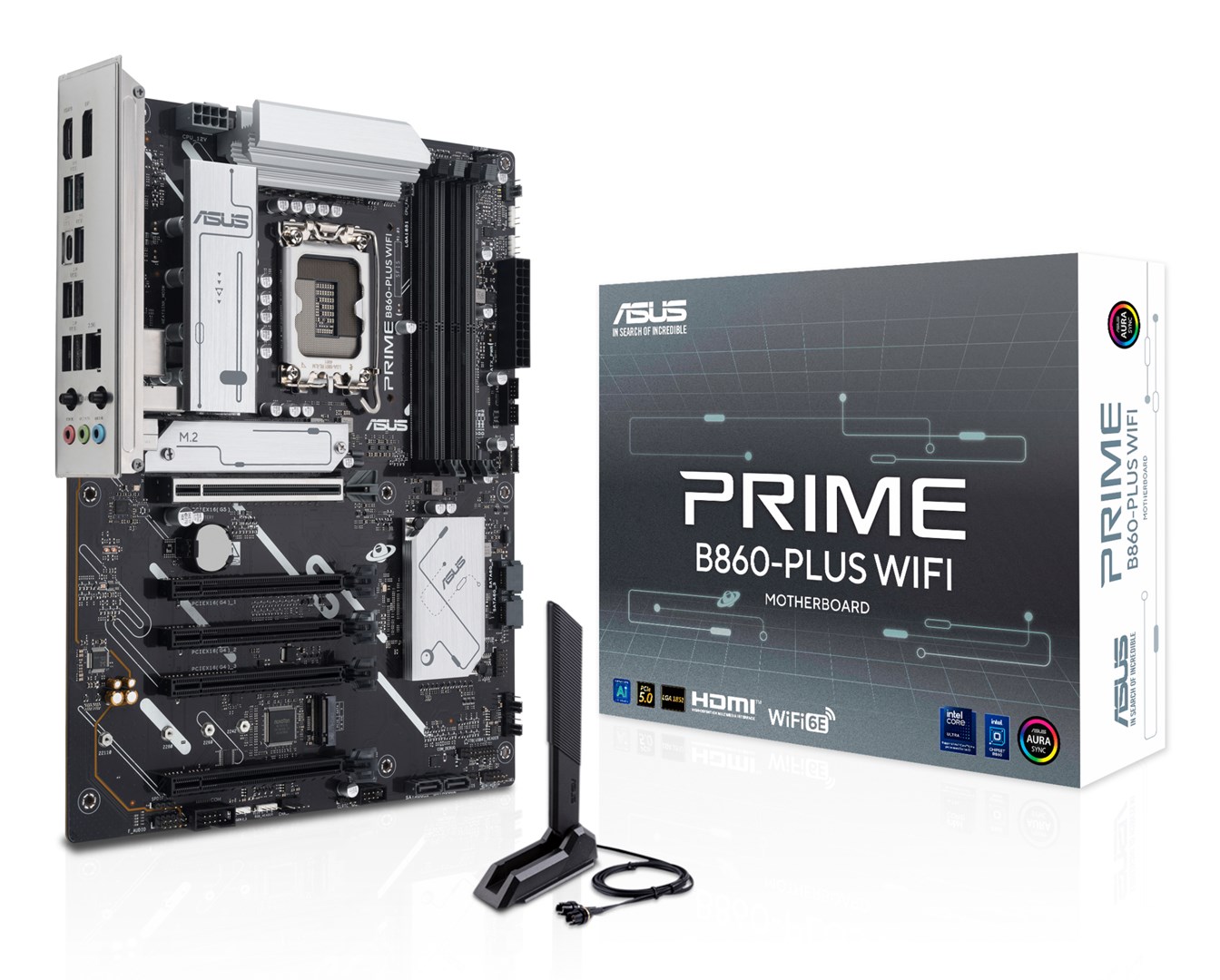

ASUS PRIME B860-PLUS WIFI Intel B860 LGA 1851 (Socket V1) ATX

B860-PLUS WIFI
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

1 IN STOCK

SKU: 90MB1K50-M0EAY0

Manufacturer: ASUS ASUS

RRP Price €224.10

Specifications

Processor

Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Compatible processor series
Intel Core Ultra (Series 2)
Supported processor sockets
LGA 1851

Memory

Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Maximum internal memory
256 GB
Unbuffered memory
Yes

Storage controllers

Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 5, 10

Graphics

Parallel processing technology support
Not supported
On-board graphics card
No

Internal I/O

USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
4
Chassis intrusion connector
Yes
Number of COM connectors
1
TPM connector
Yes
Thunderbolt headers
1
12V power connector
Yes
RGB LED pin header
Yes

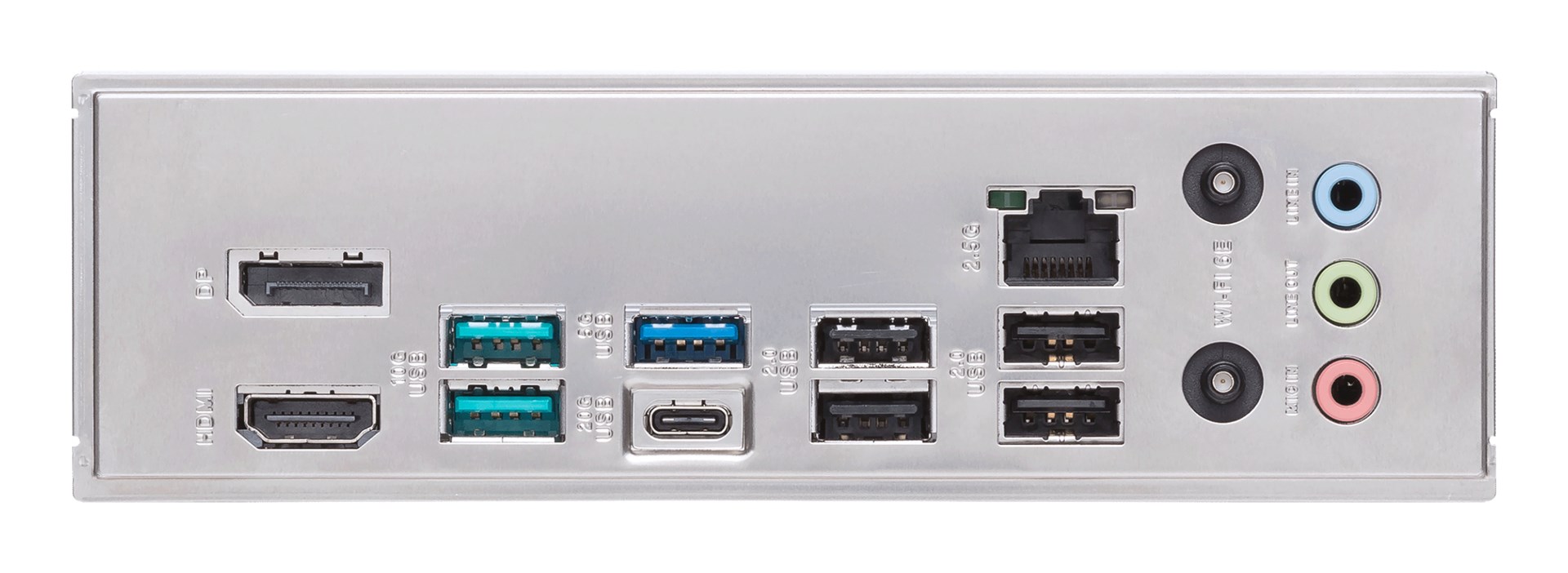

Rear panel I/O ports

USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2x2 Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
DisplayPorts quantity
1
WiFi-AP antenna jack
1

Network

Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Bluetooth
Yes
Bluetooth version
5.3

Features

Motherboard chipset
Intel B860
Audio output channels
7.1 channels
Product colour
Aluminium, Black
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
Intel
Windows operating systems supported
Windows 10 x64, Windows 11

Expansion slots

PCI Express x16 (Gen 4.x) slots
4
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
2
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0

BIOS

BIOS type
UEFI AMI
BIOS memory size
256 Mbit

Packaging data

Package width
377 mm
Package depth
372 mm
Package height
302 mm
Package weight
1.66 kg

Weight & dimensions

Width
305 mm
Depth
244 mm

Packaging content

Cables included
SATA
Antenna included
Yes
Screws included
Yes
