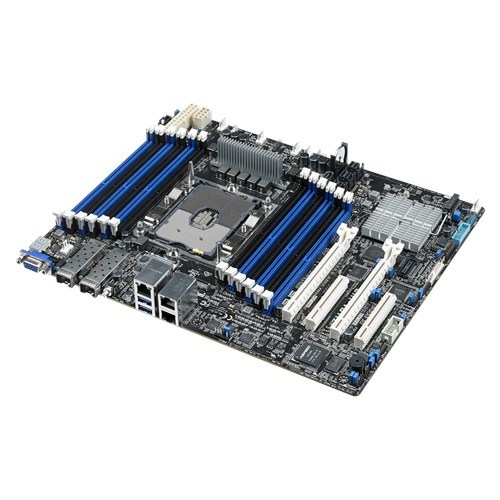

ASUS Z11PA-U12 Intel® C621 LGA 3647 (Socket P) ATX

Name: ASUS Z11PA-U12 Intel® C621 LGA 3647 (Socket P) ATX
Brand: ASUS
SKU: 90SB0660-M0UAY1
Availability: OutOfStock

Scalable server motherboard with 12 DIMM slots
- Intel® Xeon® Scalable processor platform
- Unmatched memory expandability with 12 DIMM slots
- High-speed networking with dual 10 Gigabit SFP+
- Dual OCuLink for efficient connections to NVMe devices
- Support for up to 13 6Gb/s SATA storage devices
- Comprehensive IT infrastructure management solution with ASMB9-iKVM and ASUS Control Center (ACC)
- Increased energy efficiency with ASUS ProCool Power Connectors

Unmatched memory expandability with 12 DIMM slots
ASUS Z11PA-U12 features 12 DIMM slots — the most on any compact ATX motherboard — giving it unmatched memory expandability. Together with support for dual double-deck GPUs, Z11PA-U12 makes an ideal platform for deep learning application development and education.

Dual OCuLink for efficient connections to NVMe devices
ASUS Z11PA-U12 features dual onboard OCuLink to provide efficient port-to-port connection with most OCuLink-supported NVMe devices, eliminating the need for PCIe transaction cards.

Connect up to 13 6Gb/s SATA storage devices
ASUS Z11PA-U12 comes with three mini-SAS HD connectors that support up to twelve SATA ports each for high-speed 6Gb/s connectivity with external devices and cleaner cable routing. Additionally, a 7-pin SATA port provides flexibility to connect an optical drive or extra SATA device.

Comprehensive IT infrastructure management solution
The latest ASMB9-iKVM module enables remote BIOS updates, fan control, standalone KVM with HTML 5 interface , video recording and BSOD capture. With out-of-band management, ASMB9-iKVM provides around-the-clock remote monitoring and diagnostics — even if the server operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers. ASUS Control Center (ACC) is a centralised and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables easier server management with functions such as BIOS updating without restarting the system, remote monitoring of multiple systems via mobile devices, and one-click software updates and dispatching. Learn more about ACC

Increased energy efficiency with ASUS ProCool Power Connectors

Increased energy efficiency with ASUS ProCool Power Connectors

Hybrid M.2 connector x 1 interface. Form factor: 2242, 2260, 2280. Support both PCIE and SATA

ON ORDER

SKU: 90SB0660-M0UAY1

Manufacturer: ASUS ASUS

RRP Price €0.00

Specifications

Processor

Processor manufacturer

Intel

Processor socket

LGA 3647 (Socket P)

Compatible processor series

Intel® Xeon®

Supported QPI

10.4 GT/s

Memory

Supported memory types

DDR4-SDRAM

Memory channels

Hexa-channel

Supported memory clock speeds

2400,2666 MHz

Maximum internal memory

1.54 TB

Maximum RDIMM memory

384 GB

Storage controllers

Supported storage drive interfaces

Serial Attached SCSI (SAS)

RAID support

Yes

RAID levels

0, 1, 5, 10

Graphics

Parallel processing technology support

Not supported

Discrete graphics support

Yes

On-board graphics card model

Aspeed AST2500

On-board graphics card memory

64 MB

Internal I/O

Number of SATA III connectors

ATX Power connector (24-pin)

Yes

Power fan connector

Yes

EPS power connector (8-pin)

Yes

TPM connector

Yes

Serial port headers

Integrated SAS ports

Rear panel I/O ports

Ethernet LAN (RJ-45) ports

VGA (D-Sub) ports quantity

Network

Ethernet LAN

Yes

LAN controller

Intel® I210-AT

Wi-Fi

Features

Motherboard chipset

Intel® C621

Component for

Server

Motherboard form factor

ATX

Expansion slots

PCI Express x8 (Gen 3.x) slots

PCI Express x16 (Gen 3.x) slots

Operational conditions

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 35 °C

Storage relative humidity (H-H)

20 - 90%

Logistics data

Harmonized System (HS) code

84733020

Packaging data

Package weight

1.62 kg

Weight & dimensions

Width

305 mm

Depth

244 mm

Other features

Supported DIMM module capacities

4GB, 8GB, 16GB, 32GB, 64GB

Maximum UDIMM memory

768 GB

Supported LRDIMM module capacity

32GB, 64GB

Supported LRDIMM clock speeds

2400,2666 MHz

Supported RDIMM clock speeds

2400,2666 MHz

Supported RDIMM module capacity

4GB, 8GB, 16GB, 32GB

Weight

970 g

Number of DIMM slots

Number of processors supported

Description

Manufacturer

ASUS

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

1.625 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
