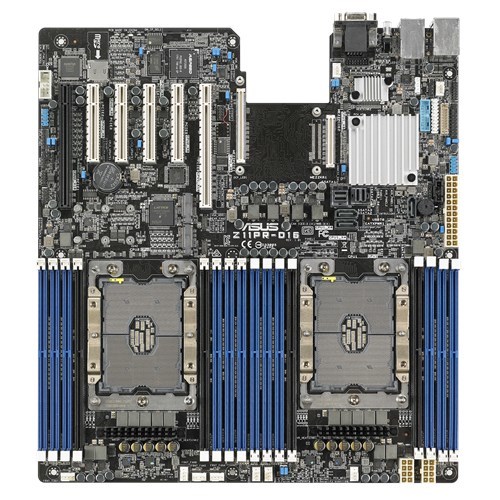

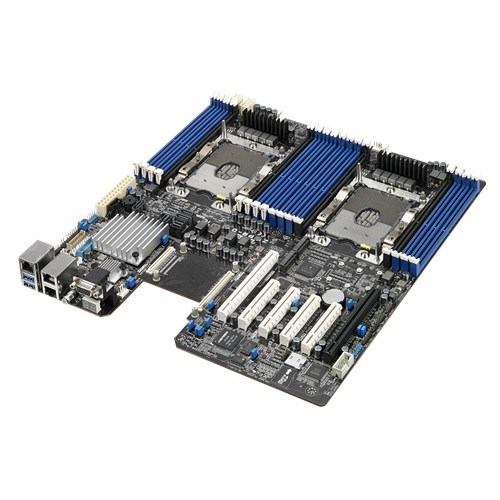

ASUS Z11PR-D16 Intel® C621 LGA 3647 (Socket P) SSI EEB

Scalable server motherboard with industry-leading 2TB memory capacity
- Industry-leading 2TB memory capacity
- Dual M.2 SSD slots
- Intel® Xeon® Scalable Platform design
- Comprehensive IT infrastructure management solution - ASUS Control Center (ACC) and ASMB9-iKVM
- Rack-optimized thermal performance

Industry-leading memory capability
With 16 RAM slots that support up to 2TB of fast, DDR4-2666MHz 3DS ECC RDIMMs or LRDIMMs, the Z11PR-D16 server motherboard delivers industry-leading memory capability for your business.

Dual M.2 SSD slots
Z11PR-D16 features dual M.2 SSD slots which support two transmission interfaces: SATA and PCI-E Gen3 x4. Both interfaces could be set in RAID mode. In particular, in the mode of PCI-E RAID, it supports Intel® VROC technology. The disk array system with Dual M.2 can be used as the main system disk, and also can be used as memory caching to enhance the data access speed.

Intel® Xeon® Scalable Platform design
Z11PR-D16 is built on the Intel® Xeon® Scalable Platform to deliver higher per-core performance and six memory channels that provide 50% more memory bandwidth and capacity for 1.65X faster average system-level performance compared to previous-generation processors. The Intel® Xeon® Scalable platform also delivers better virtualization performance, enabling 4.2X more virtual machines (VMs) per system.

Comprehensive IT infrastructure management solution
ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables easier server management with functions such as BIOS updating without restarting the system, remote monitoring of multiple systems via mobile devices, and one-click software updates and dispatching.

The latest ASMB9-iKVM module enables remote BIOS updates, fans control, standalone KVM, video recording and BSOD capture. With out-of-band management, ASMB9-iKVM provides around-the-clock remote monitoring and diagnostics — even if the server operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers.

Rack-optimized thermal performance
With the CPU and memory configured in a front parallel design that enables efficient airflow for excellent thermal performance, Z11PR-D16 is optimized for rack placement.

Flexibility to grow with your business

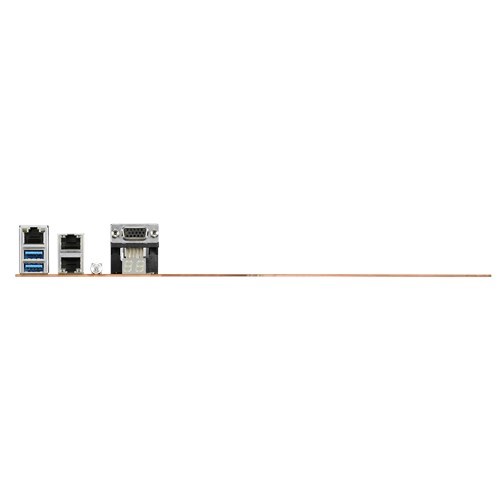

Z11PR-D16 comes with a wide range of ports to provide a flexible and cost-effective computing environment with the ability to grow together with your business. Z11PR-D16 features:
- 2 x mini SAS HD connectors
- 3 x 7-pin SATA ports
- 11 x SATA 6Gb/s storage device support (maximum)
- 1 x VGA
- 2 x USB 3.0
- 2 x 1GbE LAN
- 1 x Mgmt LAN
- 1 x Q-Code/port 80 LED

ON ORDER

SKU: 90SB0670-M0UAY0

Manufacturer: ASUS ASUS

RRP Price €0.00

Specifications

Processor

Processor manufacturer
Intel
Processor socket
LGA 3647 (Socket P)
System bus rate
10.4 GT/s

Memory

Supported memory types
DDR4-SDRAM
Supported memory clock speeds
2400,2666 MHz
Maximum internal memory
512 GB
Maximum RDIMM memory
512 GB

Storage controllers

Supported storage drive interfaces
SATA III
RAID support
Yes
RAID levels
0, 1, 5, 10

Graphics

Parallel processing technology support
Not supported
On-board graphics card model
Aspeed AST2500
On-board graphics card memory
64 MB

Internal I/O

USB 2.0 connectors
2
ATX Power connector (24-pin)
Yes
Chassis intrusion connector
Yes
TPM connector
Yes
Serial port headers
1

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
3
VGA (D-Sub) ports quantity
1

Network

Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
LAN controller
Intel® I350-AM2

Features

Motherboard chipset
Intel® C621
Component for
Server
Motherboard form factor
SSI EEB

Expansion slots

PCI Express x8 (Gen 3.x) slots
4
PCI Express x16 (Gen 3.x) slots
2

Operational conditions

Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
20 - 90%

Logistics data

Harmonized System (HS) code
84733020

Packaging data

Package weight
2.42 kg

Weight & dimensions

Width
305 mm
Depth
330 mm

Other features

Supported DIMM module capacities
4GB, 8GB, 16GB, 32GB, 64GB
Supported LRDIMM module capacity
32GB, 64GB
Supported LRDIMM clock speeds
2400,2666 MHz
Maximum LRDIMM memory
1.02 TB
Supported RDIMM clock speeds
2400,2666 MHz
Supported RDIMM module capacity
4GB, 8GB, 16GB, 32GB
Weight
1.4 kg
Number of DIMM slots
16
Number of processors supported
2
