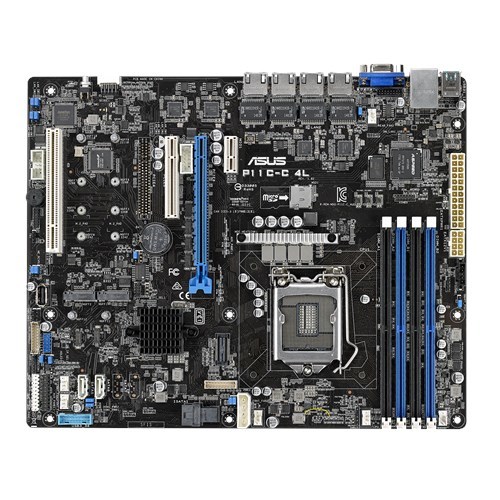

ASUS P11C-C/4L Intel C242 LGA 1151 (Socket H4) ATX

Industry-standard ATX server board with multiple expandability options

P11C-C/4L is a server motherboard based on the Intel Xeon E platform and Intel C242 chipset offering quad server-class Intel Ethernet and flexible expandability with dual M.2, six SATA 6G, two PCIe, and one PCI slot for legacy devices.

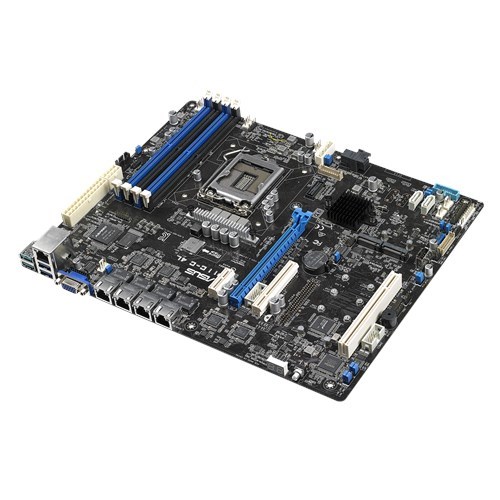

The layout is rack-optimized placement where the CPU and memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency.

Dual M.2 for up to 32Gbps performance and data redundancy

P11C-C/4L comes with dual M.2 support up to 22110-length M.2 drives via PCIe or SATA. In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.

NVMe high-speed storage interface

P11C-C/4L features NVMe technology, which offers reduced latency, lower power-consumption and faster CPU-to-storage performance for better throughput. A flexible NVMe upgrade package provides a switchable storage interface with a PCIe to U.2 add-on card or M.2 to U.2 adapter for more drive choices.

High-speed mini-SAS HD connections

P11C-C/4L comes with a mini-SAS HD connector that support up to four SATA for 6Gb/s connectivity with external devices and cleaner cable routing. P11C-C/4L also supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of P11C-C/4L, making it a great upgrade option.

Quad Intel I210AT Gigabit Ethernet

P11C-C/4L features quad server-class Intel Ethernet ports with the I210 controllers and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualization applications perfectly which requires ultrafast and reliable network.

TPM-M 2.0 ready

P11C-C/4L supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords and data. It helps to enhance network security, protect digital identities, and ensure platform integrity.

Comprehensive IT infrastructure management

P11C-C/4L features an optional embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.

The optional ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers.

ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

Enhanced serviceability

With its power button located on the front I/O panel, P11C-C/4L is designed to provide easier maintenance and deployment for diverse applications.

P11C-C/4L has a visible Q-Code/port 80 LED display for simple monitoring of the entire boot process, from power on through loading of the operating system.

Quick initialization guidance

P11C-C/4L provides instant system information during initialization as well as any unusual diagnostic results for more efficient IT operation and easy troubleshooting.

ASUS ProCool connector

ASUS ProCool is designed without hollow area, this enables lower impedance, facilitates faster heat dissipation, resulting in cooler operating temperature. Reduces power loss and increases cost savings.

ON ORDER

SKU: 90SB06M0-M0UAY0

Manufacturer: ASUS ASUS

RRP Price €0.00

Specifications

Processor

Processor manufacturer
Intel
Processor socket
LGA 1151 (Socket H4)
Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon®

Memory

Supported memory types
DDR4-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
2400,2666 MHz
Maximum internal memory
64 GB

Storage controllers

RAID levels
0, 1, 5, 10

Graphics

Graphics card
AST2500

Internal I/O

USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
6
ATX Power connector (24-pin)
Yes
Number of chassis fan connectors
6
EPS power connector (8-pin)
Yes
TPM connector
Yes

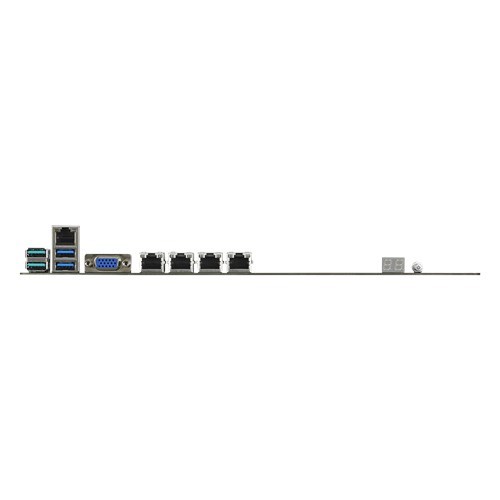

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
4
VGA (D-Sub) ports quantity
1

Network

Ethernet LAN
Yes
LAN controller
Intel® I210-AT

Features

Motherboard chipset
Intel C242
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
Intel

Expansion slots

PCI Express x8 slots
1
PCI Express x16 slots
1
PCI slots
1
Number of M.2 (M) slots
2

Operational conditions

Storage temperature (T-T)
10 - 35 °C
Operating temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
20 - 90%

Logistics data

Harmonized System (HS) code
84733020

Packaging data

Package weight
1.3 kg

Weight & dimensions

Width
305 mm
Depth
244 mm

Other features

Weight
760 g

Accessories

License
