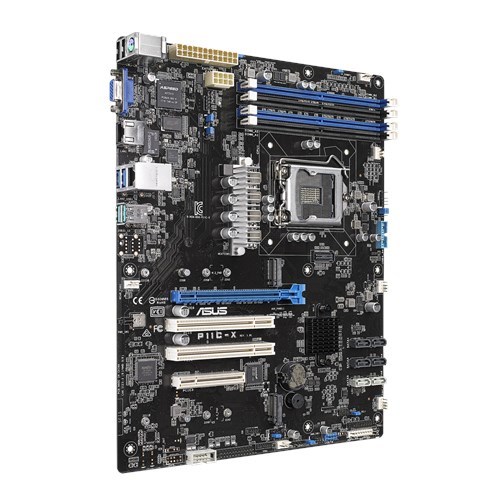

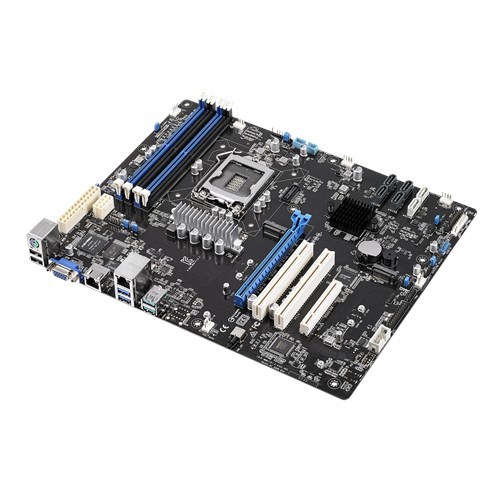

ASUS P11C-X Intel C242 LGA 1151 (Socket H4) ATX

Industry-standard ATX server board with multiple expandability options

P11C-X is a server motherboard based on the Intel Xeon E platform and Intel C242 chipset offering dual Intel Ethernet and flexible expandability with dual M.2, six native SATA 6G, two PCIe, and two PCI slot for legacy devices. The layout is rack-optimized placement where the CPU and memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency.

Dual M.2 for internal and independent OS drives with RAID 0/1 (by SATA mode)

P11C-X comes with dual M.2 support up to 22110-length M.2 drives via PCIe or SATA with auto-switch signal function. In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.

High-speed SAS storage solutions

P11C-X supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of P11C-X, making it a great upgrade option.

Dual Intel Gigabit Ethernet

With dual Intel Gigabit Ethernet connectors, P11C-X keeps your data moving swiftly and efficiently. With both LAN ports teamed you'll benefit from increased bandwidth for more speed, automated load balancing for smoother data flows, and instant failover if anything goes wrong — so access to your files is always fast, efficient and uninterrupted.

TPM-M 2.0 ready

P11C-X supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords and data. It helps to enhance network security, protect digital identities, and ensure platform integrity.

ASUS Control Center

ASUS Control Center (ACC) is a centralized and integrated IT Management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables Remote BIOS updates, monitoring of multiple Systems via mobile devices, and one-click software updates and dispatching, allowing easier server Management for any IT infrastructure.

Enhanced serviceability

With its power button located on the front I/O panel, P11C-X is designed to provide easier maintenance and deployment for diverse applications.

Quick initialization guidance

P11C-X provides instant system information during initialization as well as any unusual diagnostic results for more efficient IT operation and easy troubleshooting.

ASUS ProCool connector

ASUS ProCool is designed without hollow area, this enables lower impedance, facilitates faster heat dissipation, resulting in cooler operating temperature. Reduces power loss and increases cost savings.

ON ORDER

SKU: 90SB06Q0-M0UAY0

Manufacturer: ASUS ASUS

RRP Price €0.00

Specifications

Processor

Processor manufacturer
Intel
Processor socket
LGA 1151 (Socket H4)
Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon®

Memory

Supported memory types
DDR4-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
2400,2666 MHz
Maximum internal memory
64 GB

Graphics

Graphics card
AST2510

Internal I/O

USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
6
ATX Power connector (24-pin)
Yes
Number of chassis fan connectors
6
EPS power connector (8-pin)
Yes

Rear panel I/O ports

USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
2
PS/2 ports quantity
1
VGA (D-Sub) ports quantity
1

Network

Ethernet LAN
Yes
LAN controller
Intel® I210-AT, Intel I219LM

Features

Motherboard chipset
Intel C242
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
Intel

Expansion slots

PCI Express x8 slots
1
PCI Express x16 slots
1
PCI slots
2
Number of M.2 (M) slots
2

Logistics data

Harmonized System (HS) code
84733020

Weight & dimensions

Width
305 mm
Depth
244 mm
