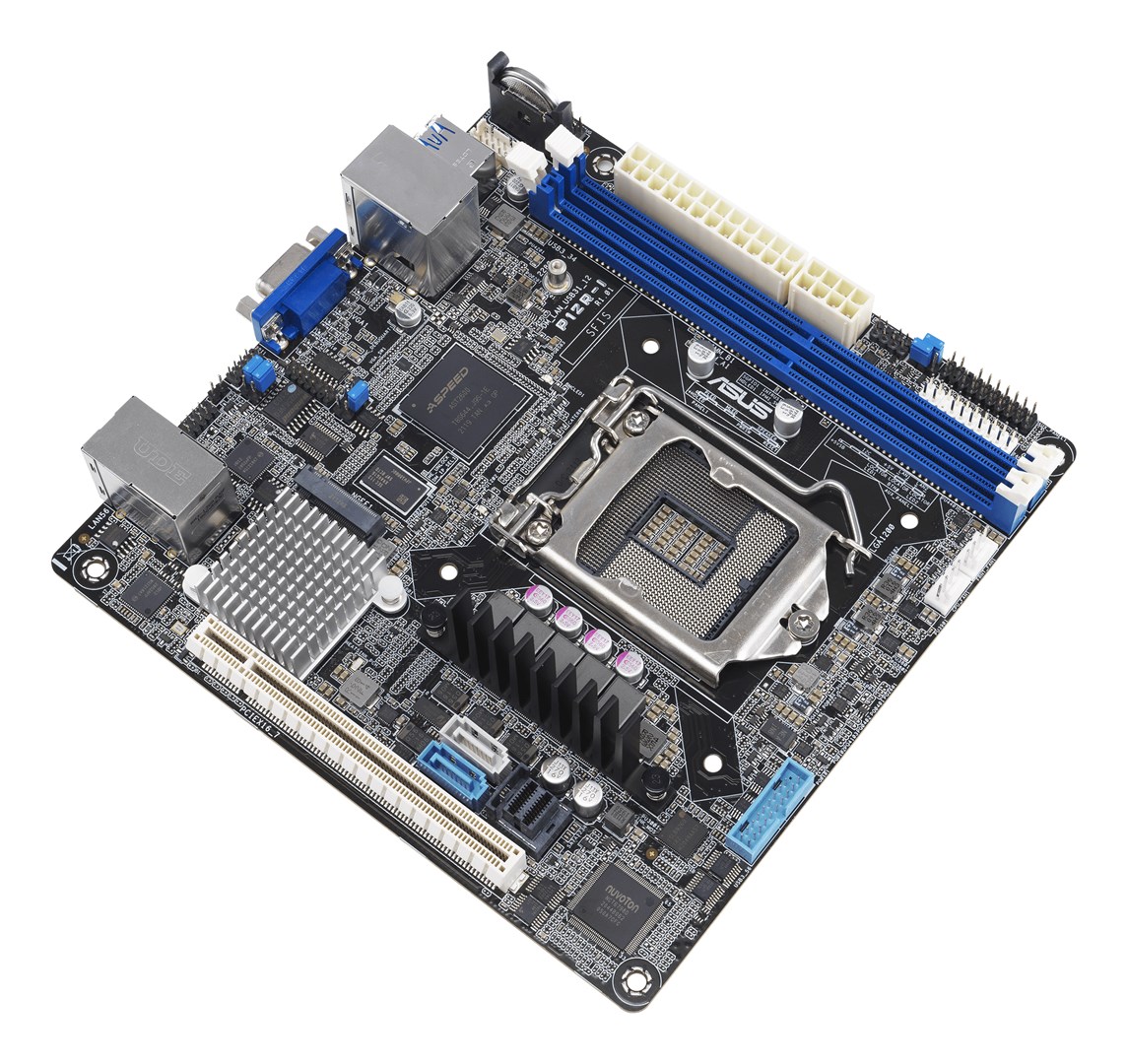

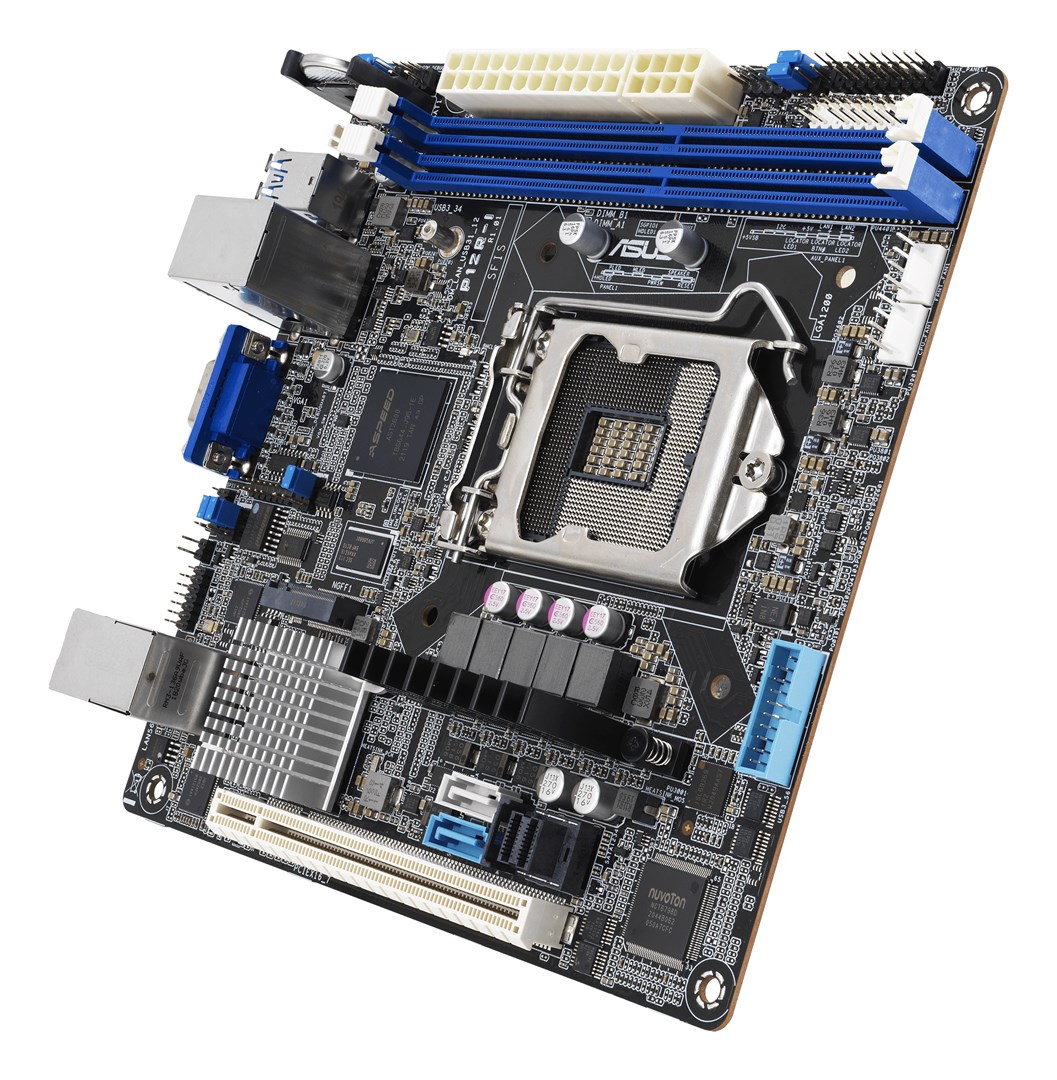

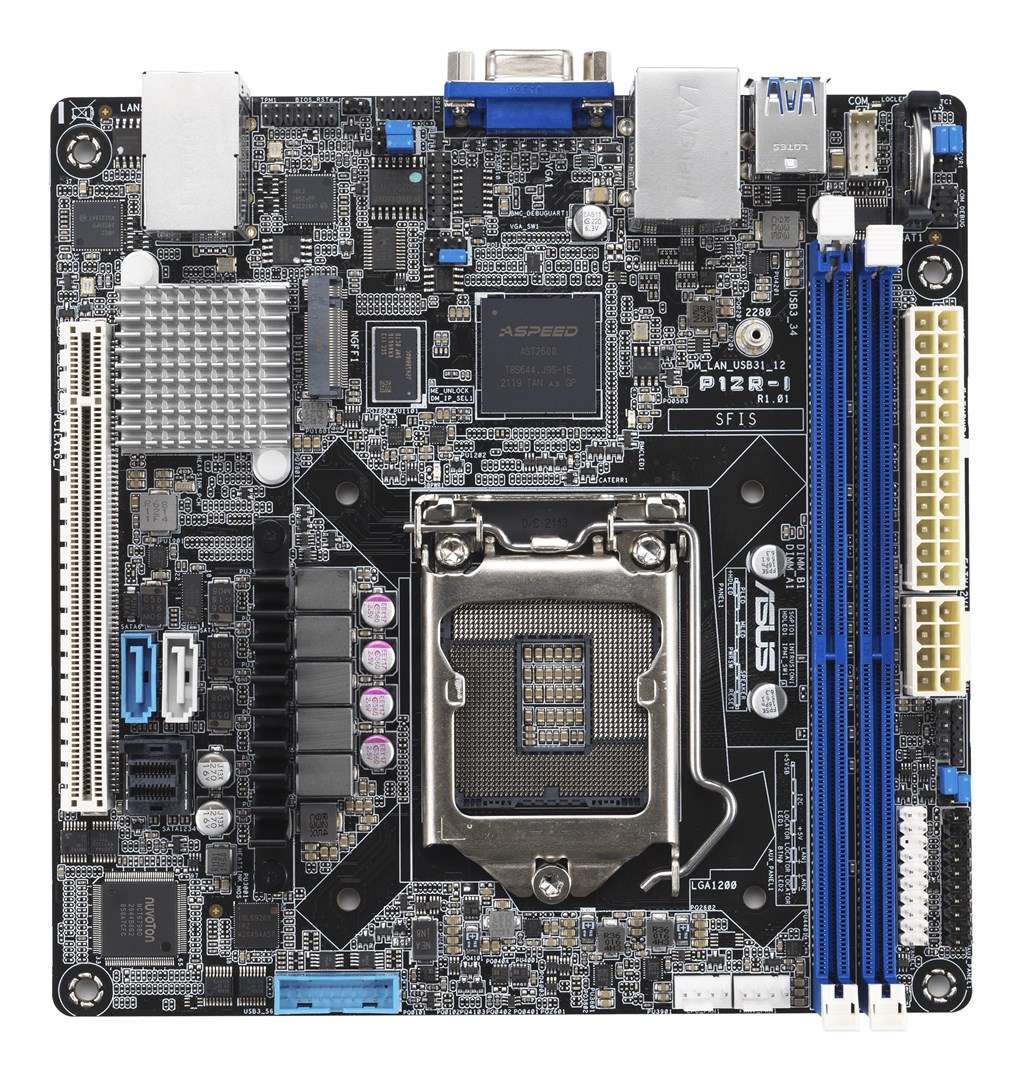

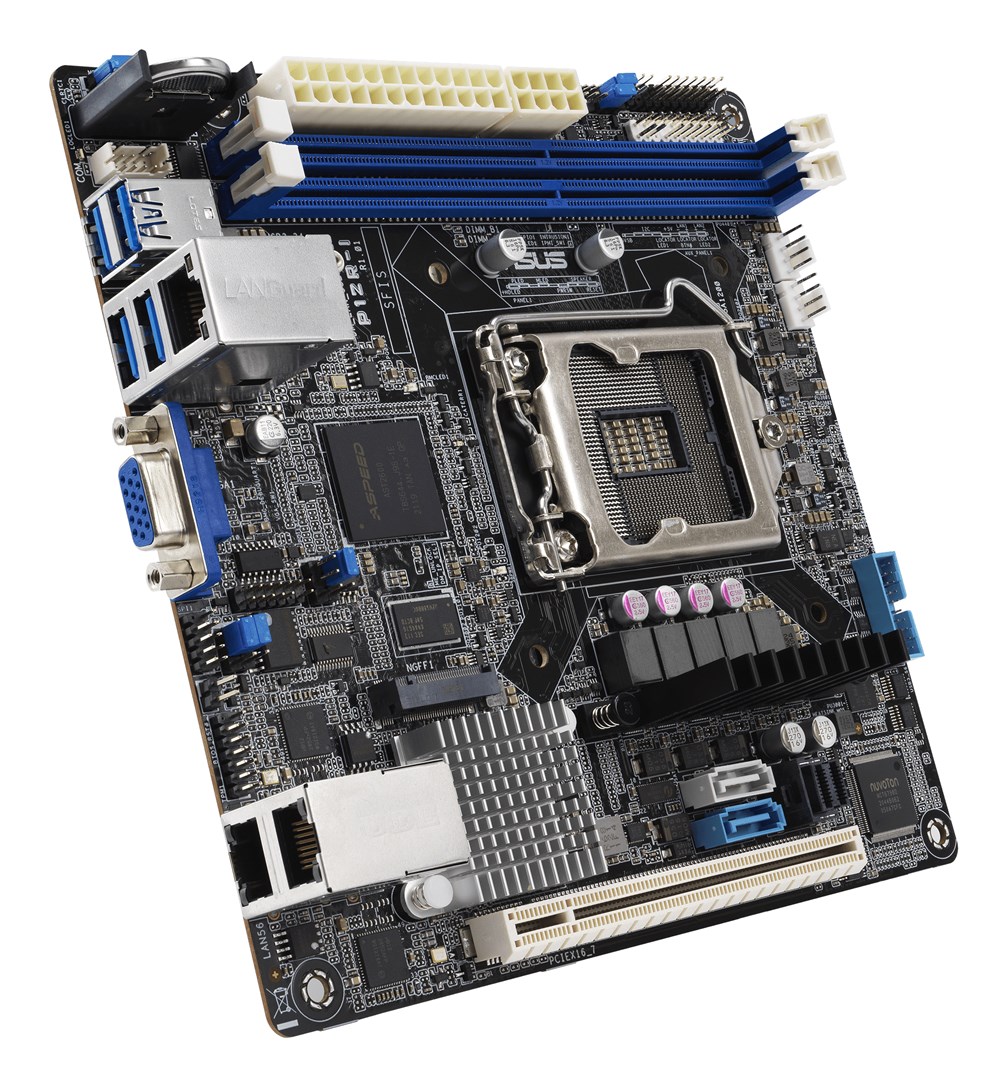

ASUS P12R-I/ASMB10 Intel C252 LGA 1200 (Socket H5) ATX

PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R-I server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.

Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.

Dual Ethernet bandwidth
With dual onboard LAN powered by an Intel I210AT Ethernet controller, P12R-I server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.

ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.

ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.


19 IN STOCK

SKU: 90SB0A70-M0UAY0

Manufacturer: ASUS ASUS

RRP Price €339.38

Specifications

Processor

Processor manufacturer
Intel
Processor socket
LGA 1200 (Socket H5)
Compatible processor series
Intel® Pentium®, Intel Xeon E

Memory

Supported memory types
DDR4-SDRAM
Number of memory slots
2
Memory slots type
DIMM
Memory channels
Dual-channel
Supported memory clock speeds
2666,2933,3200 MHz
Maximum internal memory
64 GB
Supported memory module capacities
4GB, 8GB, 16GB, 32GB

Storage controllers

Supported storage drive interfaces
M.2, SATA III

Graphics

Graphics card family
ASPEED
Graphics card
AST2600
On-board graphics card memory
64 MB

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
6
ATX Power connector (24-pin)
Yes
Number of chassis fan connectors
2
Chassis intrusion connector
Yes
EPS power connector (8-pin)
Yes
TPM connector
Yes
Serial port headers
1

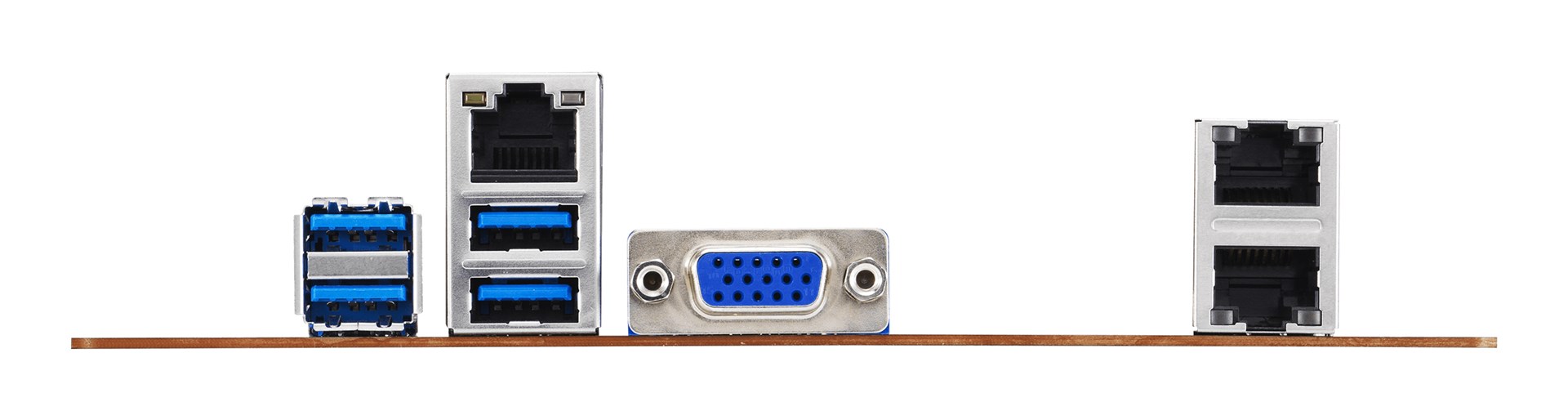

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Ethernet LAN (RJ-45) ports
3
VGA (D-Sub) ports quantity
1
Number of SAS ports
2

Network

Ethernet LAN
Yes
LAN controller
Intel® I210-AT
Wi-Fi
No

Features

Motherboard chipset
Intel C252
Component for
Server
Motherboard form factor
ATX
Motherboard chipset family
Intel

Expansion slots

PCI Express x16 slots
1
Number of M.2 (M) slots
1

Operational conditions

Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 50 °C
Storage relative humidity (H-H)
20 - 90%

Logistics data

Harmonized System (HS) code
84733020

Packaging data

Package width
311 mm
Package depth
281 mm
Package height
78 mm
Package weight
1.2 kg

Weight & dimensions

Width
170 mm
Depth
170 mm

Other features

Weight
500 g

Accessories

License
