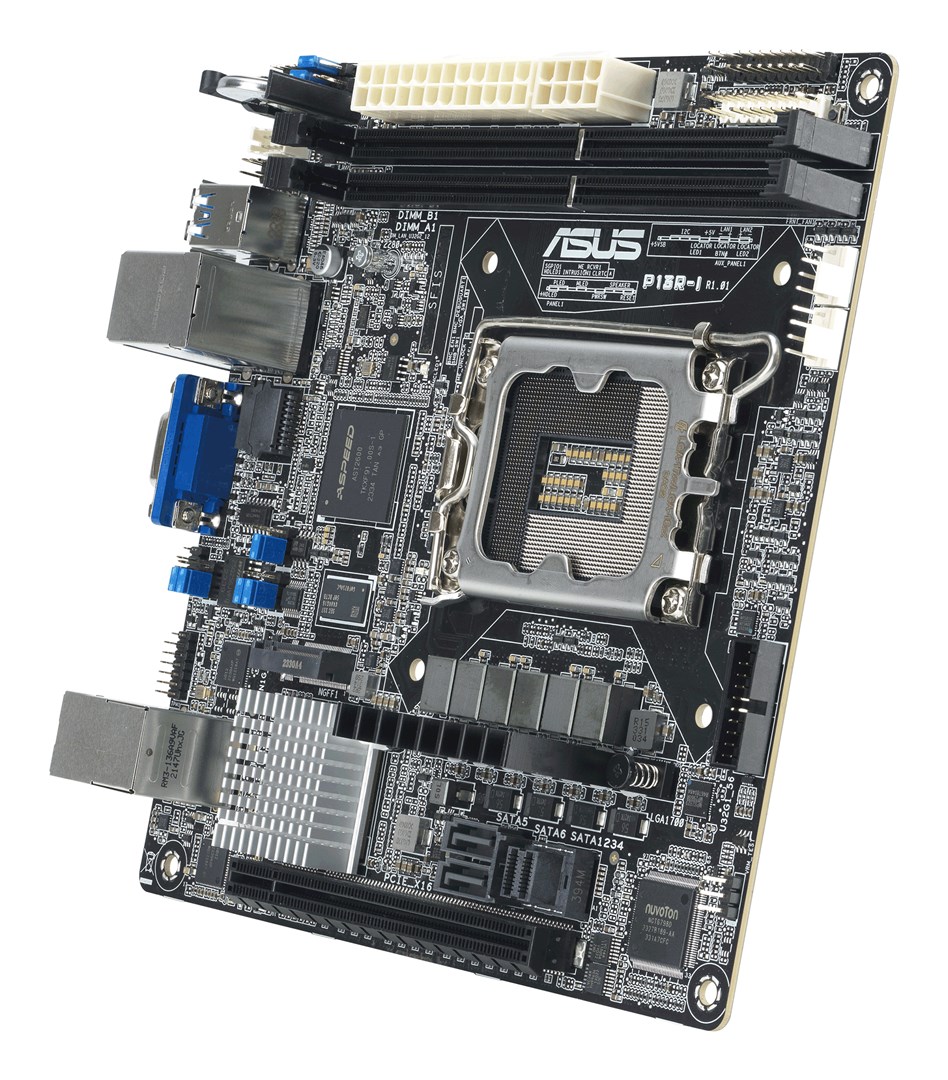

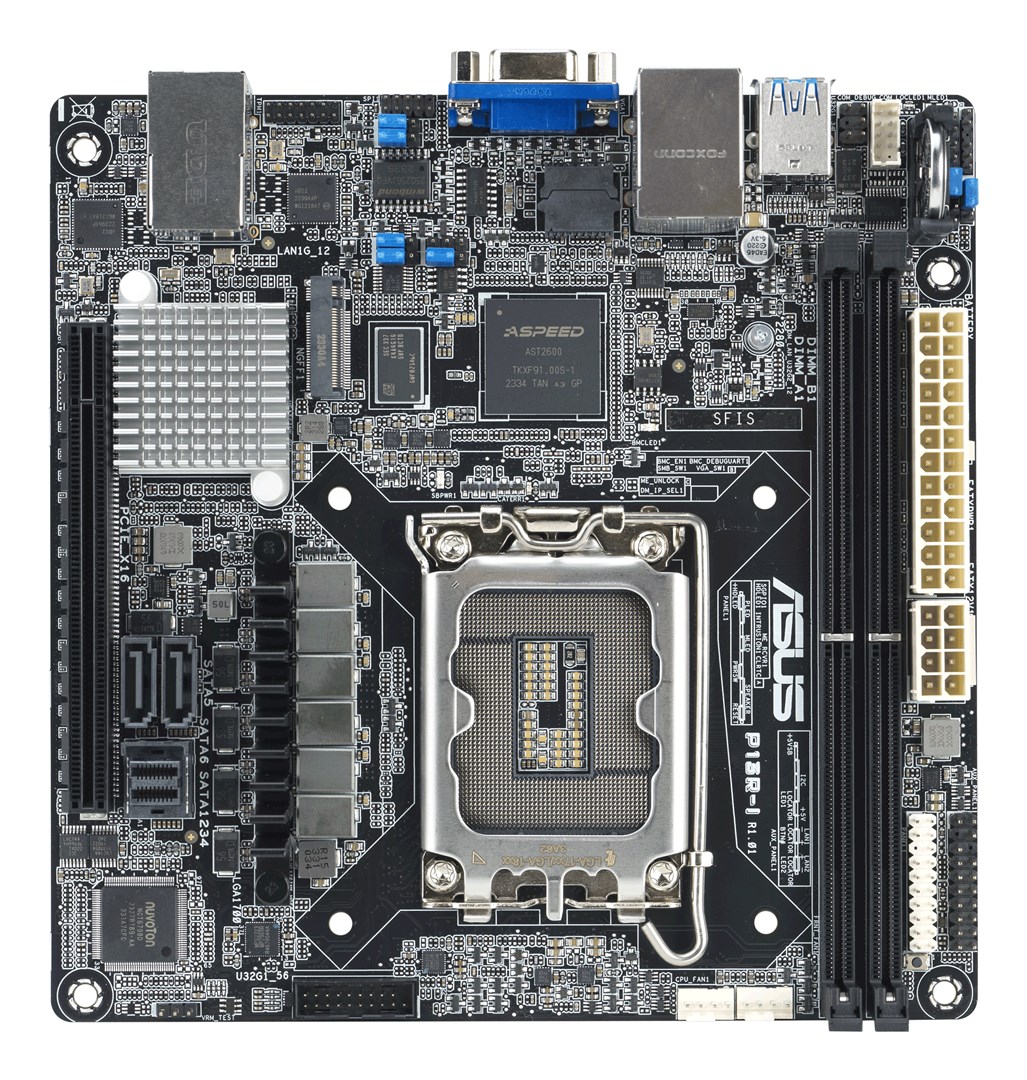

ASUS P13R-I Intel C262 LGA 1700 mini ITX

PCIe 5.0 Ready
Faster storage, graphics and networking capabilities PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better LAN scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.

Intel Xeon E-2400 processors/Intel Xeon 6300 processors
Designed for small- to medium-sized businesses (SMBs) and cloud-service providers, offering robust and secure solutions. These processors support up to eight cores and 16 threads, with a maximum frequency of 5.6 GHz and a 95 W TDP, ensuring rapid data processing and application responsiveness. They support up to 128 GB of DDR5 4400 MT/s memory (Intel Xeon E-2400) or up to 4800 MT/s memory (Intel Xeon 6300) and PCIe 5.0 interfaces, providing server-grade 24/7 reliability for business-critical services and customer data, and cost-effective performance for entry-level bare-metal cloud services.

Two fast USB 3.2 Gen 2 ports
ASUS P13R-I is equipped with two USB 3.2 Gen 2 ports on its rear I/O panel. These high-speed connections offer rapid data-transfer speeds of up to 10 Gbps, for fast, efficient and reliable file transfers. These sockets are also backward compatible, ensuring seamless connectivity with a wide range of USB devices.

Dual Ethernet bandwidth
With dual onboard LAN powered by an Intel I210-AT2 Ethernet controller, P13R-I server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.

Comprehensive IT infrastructure management
P13R-I features an embedded iKVM module and is optionally equipped with ASUS Control Center, offering comprehensive out-of-band and in-band management features tailored for small and mid-size businesses. The embedded ASUS ASMB11-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording and BSOD capture, providing around-the-clock remote monitoring and diagnostics. This functionality remains accessible even if the operating system is down or offline, through a user-friendly web-based graphical interface compatible with all major browsers. ASUS Control Center (ACC) further enhances IT infrastructure management, centralizing and integrating monitoring and control for ASUS commercial products, including servers, workstations, and digital signage. ACC enables remote BIOS updates, mobile device system monitoring, and simplified server management through one-click software updates and dispatching.

65 IN STOCK

SKU: 90SB0CR0-M0UAY0

Manufacturer: ASUS ASUS

RRP Price €399.01

Specifications

Processor

Processor manufacturer
Intel
Processor socket
LGA 1700
Compatible processor series
Intel® Pentium®, Intel® Xeon®, Intel Xeon E
Supported processor sockets
LGA 1700

Memory

Supported memory types
DDR5-SDRAM
Number of memory slots
2
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC
Supported memory clock speeds
3600,4000,4400,4800 MHz
Supported memory clock speed (max)
4800 MHz
Maximum internal memory
64 GB

Storage controllers

Supported storage drive types
HDD & SSD
Supported storage drive interfaces
PCI Express 4.0, SATA III
Number of HDDs supported
6
Number of storage drives supported
7

Graphics

Parallel processing technology support
Not supported
Graphics card
AST2600
On-board graphics card memory
64 MB

Internal I/O

Number of SATA III connectors
6
Front panel connector
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
2
Chassis intrusion connector
Yes
Number of COM connectors
1
TPM connector
Yes

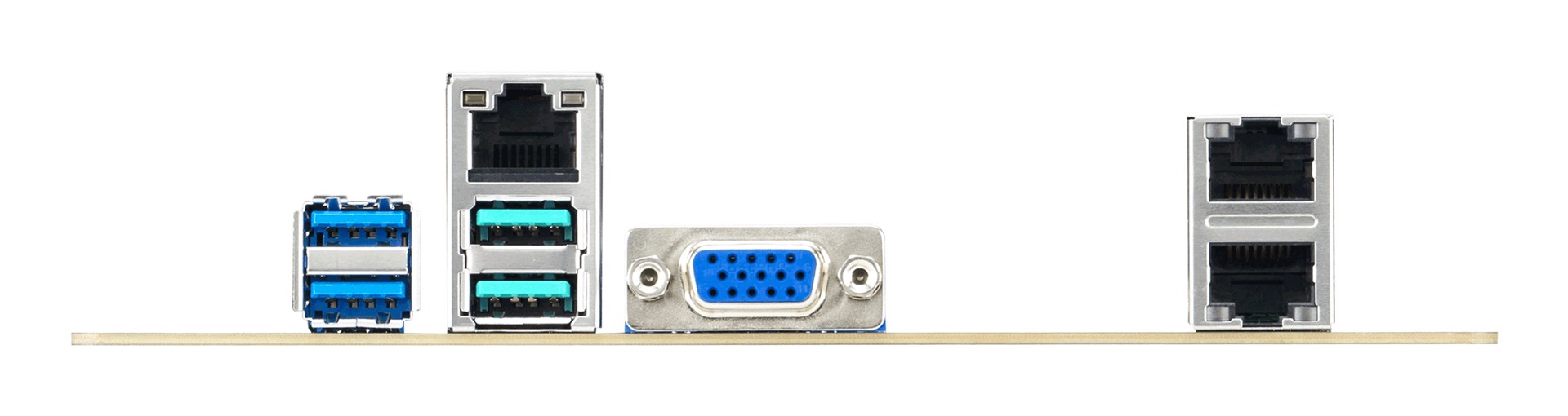

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
3
VGA (D-Sub) ports quantity
1

Network

Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Wi-Fi
No

Features

Motherboard chipset
Intel C262
Product colour
Black
Component for
Server
Motherboard form factor
mini ITX
Motherboard chipset family
Intel
Cooling type
Passive

Expansion slots

PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
1
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
4.0

Operational conditions

Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 50 °C
Storage relative humidity (H-H)
20 - 90%

Weight & dimensions

Width
170 mm
Depth
170 mm

Accessories

License
