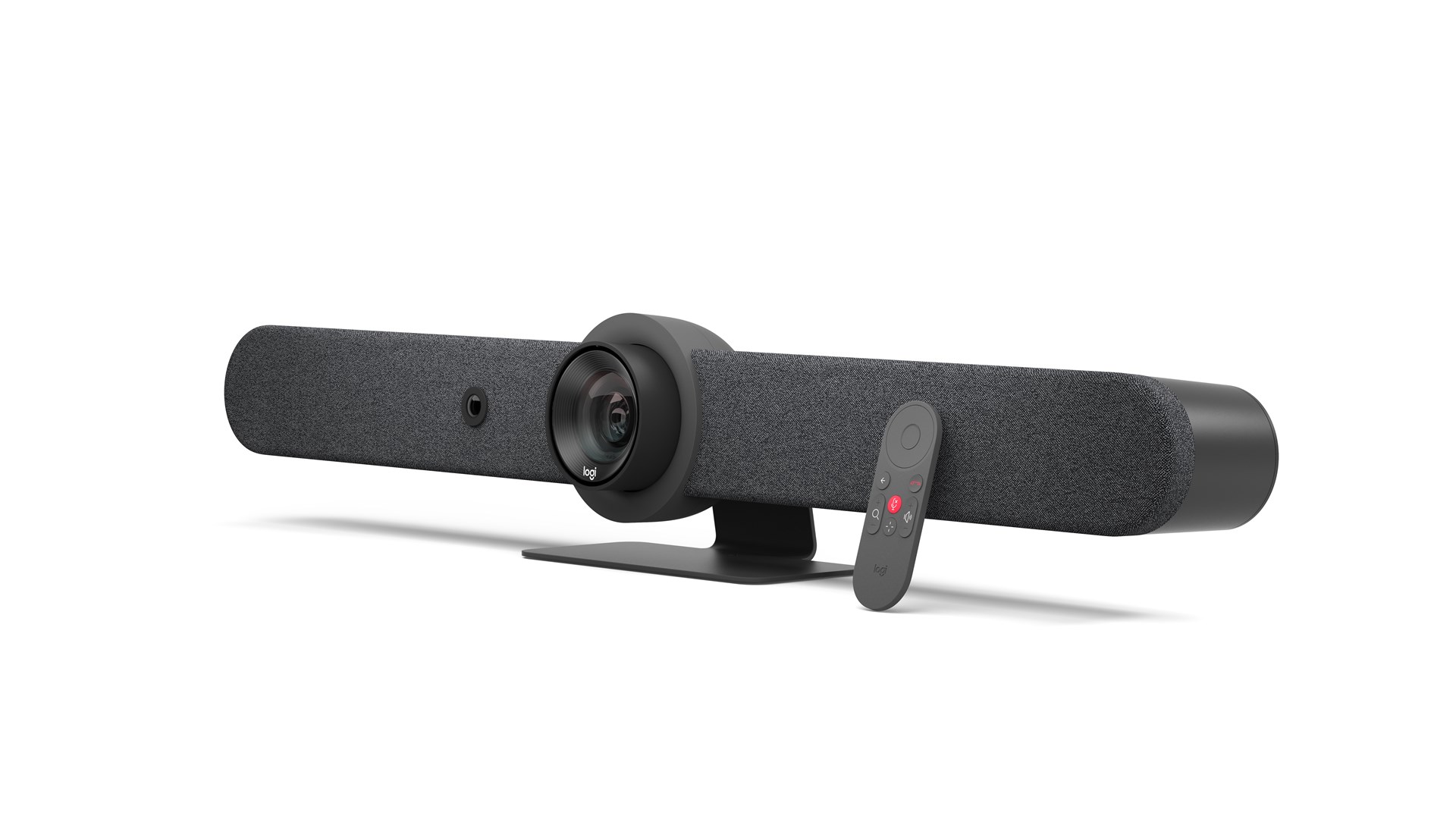

Logitech Rally Bar

Name: Logitech Rally Bar
Brand: Logitech
SKU: 960-001311
Price: 3119.18 EUR
Availability: InStock

81 IN STOCK

SKU: 960-001311

Manufacturer: Logitech

RRP Price €3,119.18

Specifications

Performance

Product colour

Graphite

Product type

Group video conferencing system

Pan range

-25 - 25°

Tilt angle range

-15 - 15°

PTZ control

Yes

Video

HD type

4K Ultra HD

Supported video modes

576p, 720p, 900p, 1440p, 2160p

Maximum frame rate

30 fps

Audio

Built-in speaker(s)

Yes

Output level

92/99 dB

Line-out impedance

4 Ω

Output voltage Total Harmonic Distortion (THD)

Audio beamforming

Yes

Noise reduction

Yes

Echo cancellation

Yes

RMS rated power

8 W

Microphone pick-up range

4.5 m

Sample rates

0 - 48 kHz

Ports & interfaces

HDMI ports quantity

HDMI output ports quantity

HDMI input ports quantity

USB connector type

USB Type-A, USB Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

DC-in jack

Yes

Microphone in

Yes

Interface module

Interface module Ethernet LAN (RJ-45) ports

Network

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Supported network protocols

IPv4, IPv6

Security algorithms

128-bit AES

Camera

Zoom capability

Yes

Optical zoom

Digital zoom

Horizontal field of view

82.1°

Vertical field of view

52.2°

Diagonal field of view

90°

Remote control interface

Bluetooth

Microphone

Microphone sensitivity

-36 dB

Microphone frequency

90 - 16000 Hz

Microphone direction type

Omnidirectional

Sound pressure level (max)

90 dB

Number of microphones

Features

Telepresence

Logistics data

Master (outer) case gross weight

9.91 kg

Master (outer) case length

1004 mm

Master (outer) case width

220 mm

Master (outer) case height

231 mm

Harmonized System (HS) code

85176990

Battery

Battery capacity

0.675 Wh

Computer system

Windows operating systems supported

Yes

Mac operating systems supported

MacOS

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 95%

Storage temperature (T-T)

-40 - 70 °C

Heat dissipation

64 BTU/h

Power

Power source type

AC input voltage

100 - 240 V

Current

4.754 A

DC input voltage

19 V

Battery technology

Lithium

Battery capacity

220 mAh

Number of batteries supported

Power plug type

Type C

Weight & dimensions

Width

910 mm

Depth

160 mm

Height

164 mm

Weight

7.08 kg

Package width

207 mm

Package depth

989 mm

Package height

218 mm

Package weight

9.3 kg

Packaging content

Cables included

AC, DC, HDMI, USB Type-A to USB Type-C

Power cable length

2.5 m

HDMI cable length

2 m

AC adapter included

Yes

Remote control included

Yes

Quick start guide

Yes

Packaging content

Rally Bar Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main camera and AI Viewfinder User documentation

Description

Manufacturer

Logitech

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

Weight

7.08 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!
