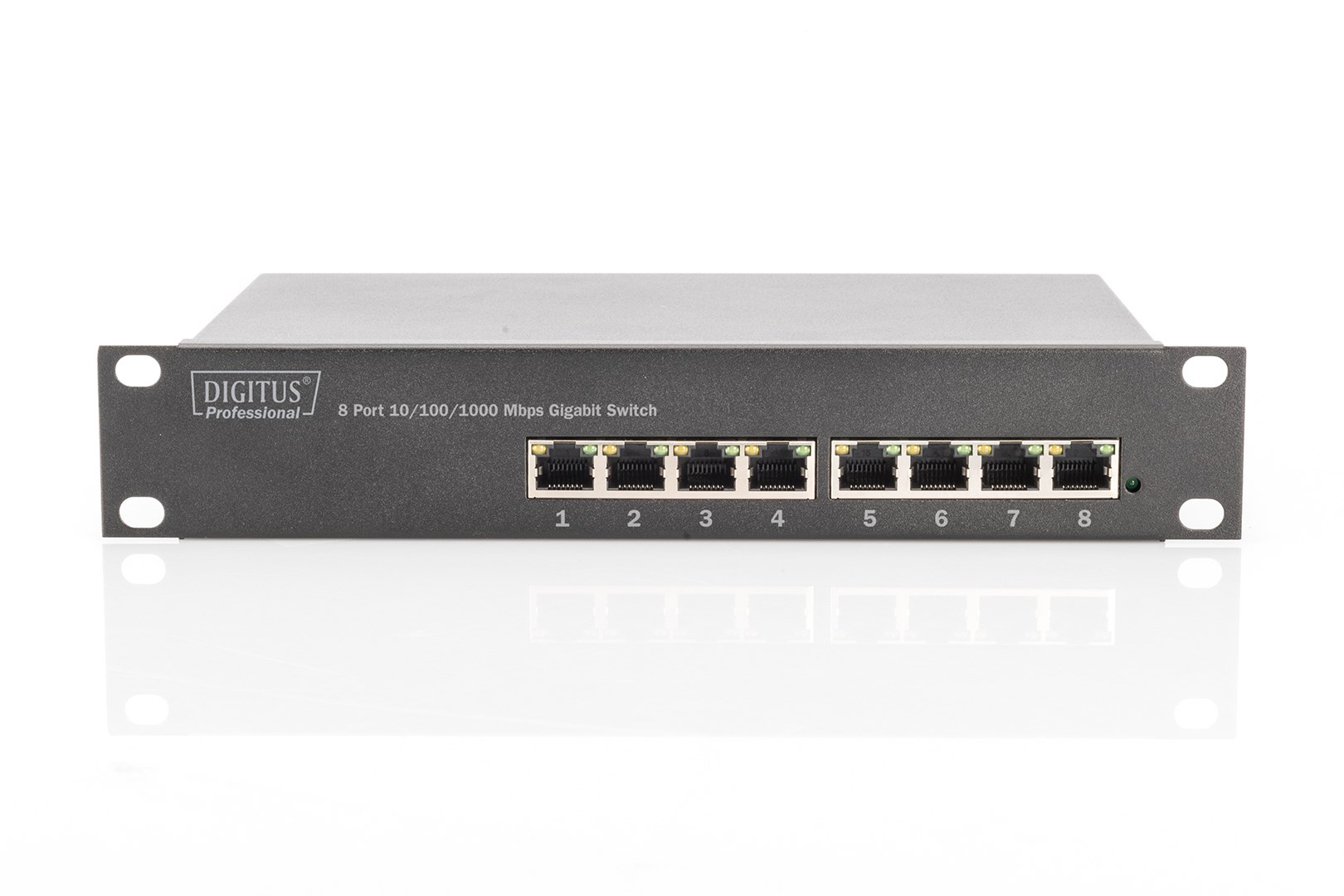

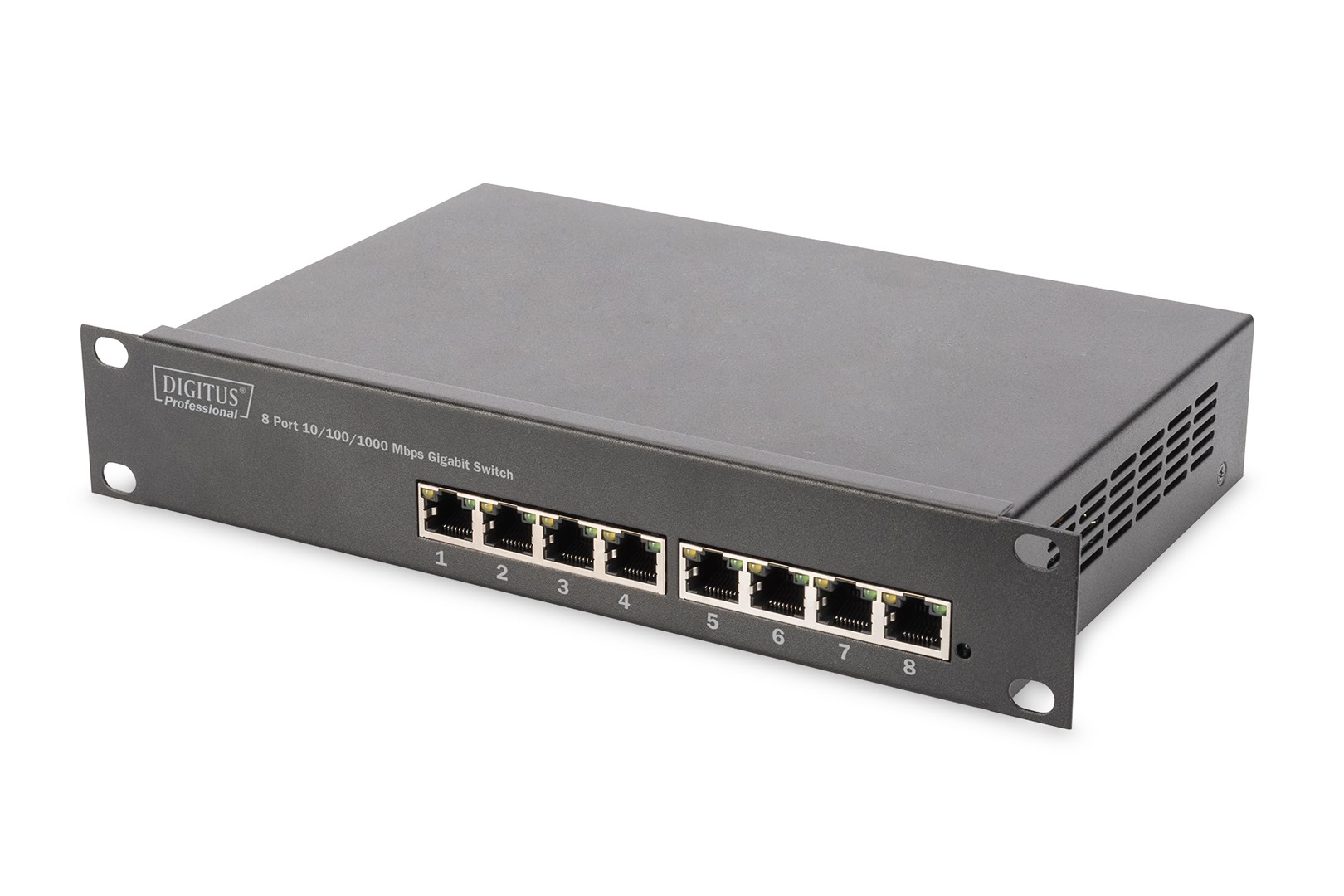

Digitus 8-Port Gigabit Switch, 10 inch, Unmanaged

Digitus 8-Port Gigabit Switch, 10 inch, Unmanaged

Name: Digitus 8-Port Gigabit Switch, 10 inch, Unmanaged
Brand: Digitus
SKU: DN-80114
Price: 85.87 EUR
Availability: InStock

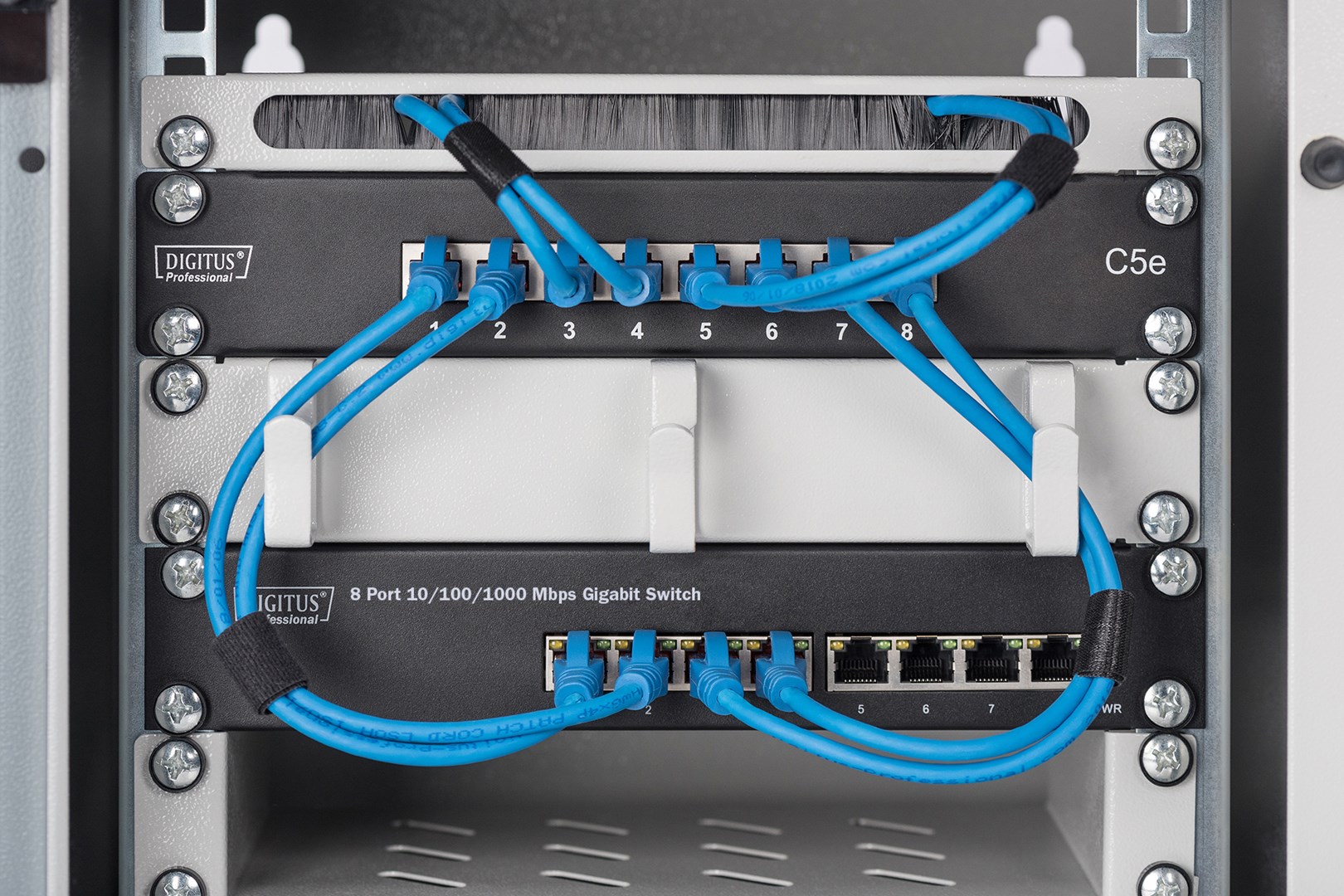

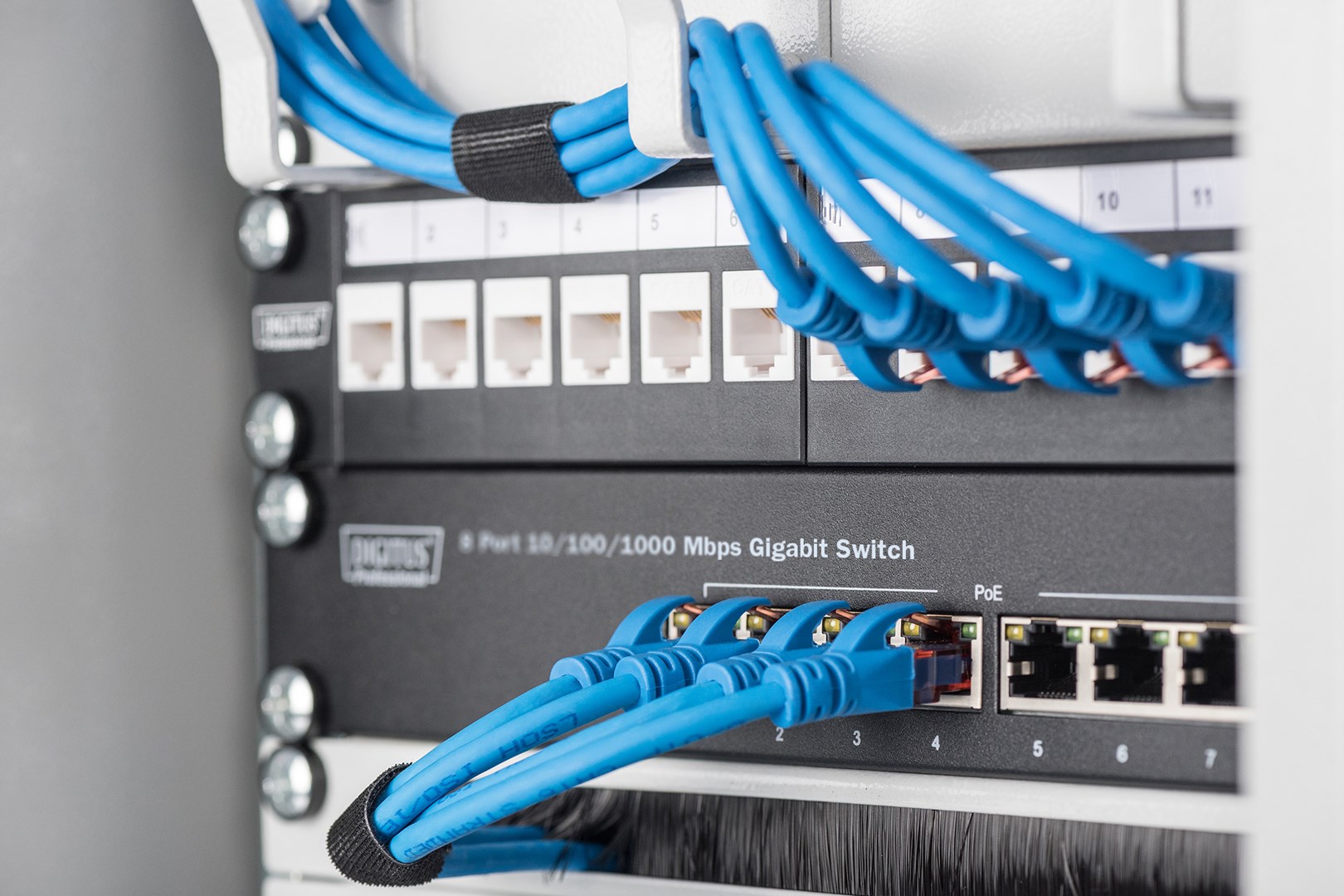

Ideal for use in 10" wall-mounted enclosures

- 8 x 10/100/1000Base-T ports: Provides high flexibility and speed for your network devices
- Network standards: Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x standards, ensuring broad compatibility
- Non-blocking, non-head-of-line forwarding: Ensures that your data is transferred quickly and efficiently, without delays
- Back-pressure and bandwidth control: Enables precise control and management of bandwidth on each port
- Store-and-forward technology: Optimizes data transfer by temporarily storing and checking packets before they are forwarded
- Automatic speed and duplex detection: Automatically detects and adjusts the speed and duplex mode (20 / 200 / 2000 Mbit in full duplex mode)
- Auto MDI/MDI-X function: Simplifies cabling as no crossover cables are required
- 16Gbps backplane: Ensures a high data transfer rate and efficient network performance
- Supports up to 8K MAC addresses: Provides enough capacity for growing networks
- Power consumption: Low power consumption of only 5 watts

The DIGITUS® 8-Port Gigabit Ethernet Switch provides 8 10/100/1000 Mbps RJ-45 ports with auto-negotiation. All ports support the Auto MDI/MDIX function, which eliminates the need for crossover cables and uplink ports. Low cost, ease of use and high performance are the strengths of the DIGITUS® Gigabit Ethernet 8-Port Switch, making it an excellent choice for your network. Thanks to its compact dimensions, the switch can be installed in 10-inch wall-mounted housings. The mounting brackets are included with the product.

38 IN STOCK

SKU: DN-80114

Manufacturer: Digitus Digitus

RRP Price €85.87

Specifications

Management features

Switch type

Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x

10G support

Full duplex

Yes

Auto MDI/MDI-X

Yes

VLAN support

Data transmission

Switching capacity

16 Gbit/s

MAC address table

8000 entries

Store-and-forward

Yes

Design

Rack mounting

Yes

Product colour

Grey

Vandal-proof

Suitable for outdoor use

Power

Power consumption (typical)

5 W

Power over Ethernet (PoE)

Other features

Ethernet interface type

Gigabit Ethernet

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Weight & dimensions

Width

250 mm

Depth

150 mm

Height

42 mm

Packaging data

Package width

320 mm

Package depth

240 mm

Package volume

5145.6 cm³

Package weight

1.44 kg

Logistics data

UK Trade Tariff code

85176200

Country of origin

China

Harmonized System (HS) code

85176990

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

Weight

1.435 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
