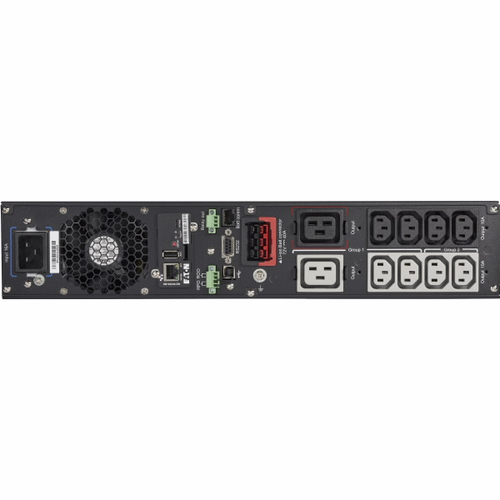

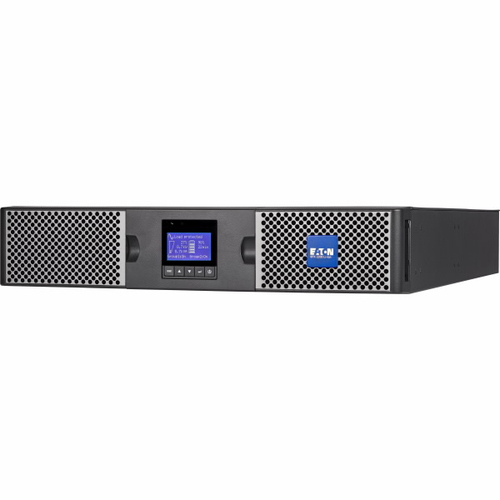

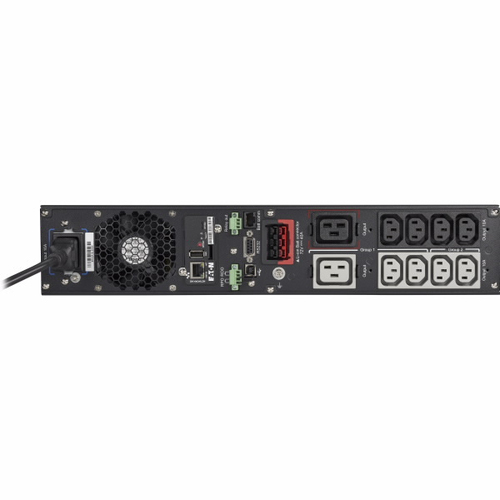

Eaton 9PX 2200i RT2U uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 2200 W 10 AC outlet(s)

Eaton 9PX 2200i RT2U uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 2200 W 10 AC outlet(s)

Name: Eaton 9PX 2200i RT2U uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 2200 W 10 AC outlet(s)
Brand: Eaton
SKU: 9PX2200IRT2U-L
Price: 3973.10 EUR
Availability: OutOfStock

ON ORDER

SKU: 9PX2200IRT2U-L

Manufacturer: Eaton Eaton

RRP Price €3,973.10

Specifications

Features

UPS topology

Double-conversion (Online)

Output power capacity

2.2 kVA

Output power

2200 W

Waveform

Pure sine

Input operation voltage (min)

176 V

Input operation voltage (max)

276 V

Input frequency

40/70 Hz

Output operation voltage (min)

200 V

Output operation voltage (max)

240 V

Output frequency

50/60 Hz

Number of input phases

Efficiency

93.5%

Input power factor

0.99

Output power factor

Noise level

40 dB

Ports & interfaces

AC outlet types

C13 coupler, C19 coupler

Power plug

C20 coupler

AC outlets quantity

10 AC outlet(s)

USB port

Yes

USB 2.0 ports quantity

RS-232 ports

Battery

Battery technology

Lithium-Ion (Li-Ion)

Design

Form factor

Rackmount

Rack capacity

Cable length

1.8 m

Product colour

Black, Silver

Display type

LCD

LED indicators

Status

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 96%

Certificates

Certification

IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC

Packaging content

Rack mount kit

Sustainability

Sustainability compliance

Yes

Sustainability certificates

ENERGY STAR

Weight & dimensions

Width

440 mm

Depth

605 mm

Height

86.5 mm

Logistics data

Harmonized System (HS) code

85078000

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

2846 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!
