Eaton 9PX2200IRTBPB uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 2200 W 3 AC outlet(s)

Eaton 9PX2200IRTBPB uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 2200 W 3 AC outlet(s)

Name: Eaton 9PX2200IRTBPB uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 2200 W 3 AC outlet(s)
Brand: Eaton
SKU: 9PX2200IRTBPB
Price: 2179.13 EUR
Availability: OutOfStock

ON ORDER

SKU: 9PX2200IRTBPB

Manufacturer: Eaton Eaton

RRP Price €2,179.13

Specifications

Features

UPS topology

Double-conversion (Online)

Output power capacity

2.2 kVA

Output power

2200 W

Input operation voltage (min)

176 V

Input operation voltage (max)

276 V

Input frequency

50/60 Hz

Output operation voltage (min)

200 V

Output operation voltage (max)

240 V

Output frequency

50/60 Hz

Efficiency

93%

Noise level

40 dB

Ports & interfaces

Power plug

C20 coupler

AC outlets quantity

3 AC outlet(s)

USB 2.0 ports quantity

RS-232 ports

Battery

Hot-swap battery

Yes

Automatic battery test

Yes

Design

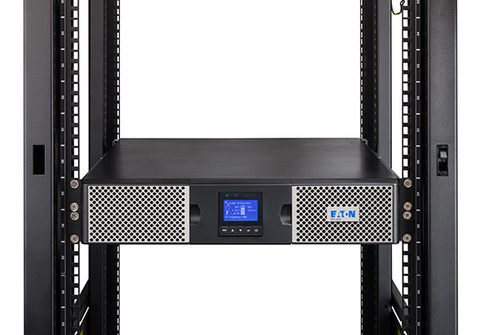

Form factor

Rackmount/Tower

Rack capacity

Product colour

Black

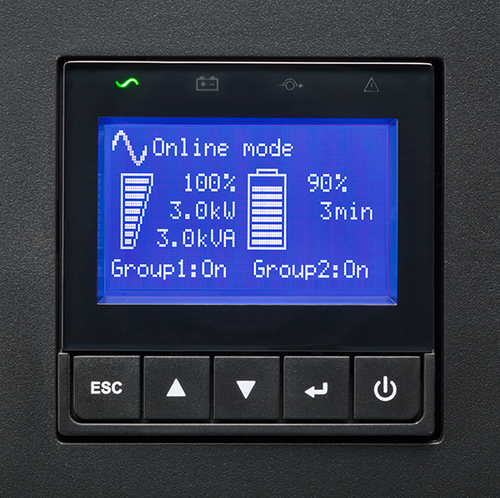

Display type

LCD

LED indicators

Yes

Certificates

Certification

IEC / EN 62040 -2, FCC Class B, CISPR22 Class B CE / CB report (TÜV) / cULus / EAC / RCM / KC

Packaging content

Rack mount kit

Yes

Safety regulation & standards

Safety

IEC / EN 62040-1, UL 1778, CSA 22:17

Sustainability

Sustainability certificates

ENERGY STAR

Weight & dimensions

Width

440 mm

Depth

485 mm

Height

130 mm

Weight

24.5 kg

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

24.5 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!
