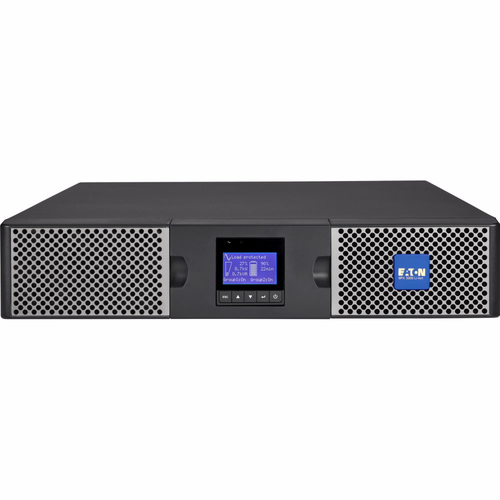

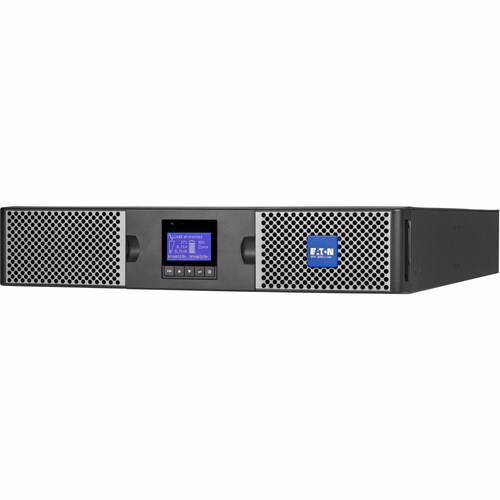

Eaton 9PX 3000i RT2U Li-Ion uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2400 W 10 AC outlet(s)

Reliable. Versatile. Powerful. Efficient. With double-conversion topology for constant power conditioning and up to 93 percent efficiency, the Eaton 9PX 700-3000 VA models support your overall goal of business continuity. It’s built for scalable deployment, features a graphical LCD for local status updates and integrates with virtualized environments.

ON ORDER

SKU: 9PX3000IRT2U-L

Manufacturer: Eaton Eaton

RRP Price €5,845.38

Specifications

Features

UPS topology
Double-conversion (Online)
Output power capacity
3 kVA
Output power
2400 W
Waveform
Sine
Input operation voltage (min)
176 V
Input operation voltage (max)
276 V
Input frequency
40/70 Hz
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Output frequency
50/60 Hz
Number of input phases
1
Number of output phases
1
Efficiency
94%
Input power factor
0.99
Output power factor
1
Noise level
40 dB
Power protection features
Battery discharge

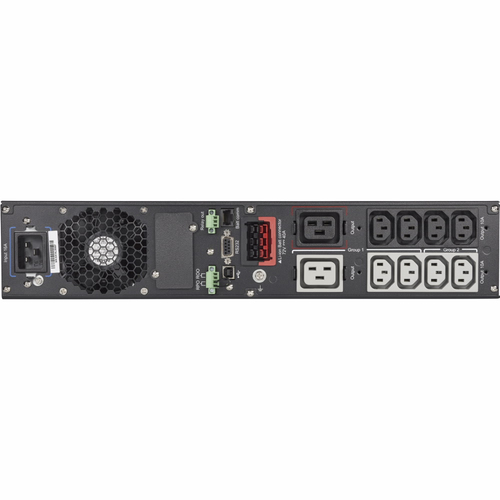

Ports & interfaces

AC outlet types
C13 coupler, C19 coupler
Power plug
C20 coupler
AC outlets quantity
10 AC outlet(s)
USB port
Yes
USB 2.0 ports quantity
1
USB port type
USB Type-B
Serial interface
Yes
Serial interface type
RS-232
RS-232 ports
1

Battery

Battery technology
Lithium-Ion (Li-Ion)
Typical backup time at full load
10 min
Hot-swap battery
Yes
Automatic battery test
Yes

Design

Form factor
Rackmount/Tower
Rack capacity
2U
Product colour
Black, Silver
Display type
LCD
LED indicators
Yes

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 96%
Operating altitude
0 - 3000 m

Certificates

Compliance certificates
CE
Certification
IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star

Packaging content

Rack mount kit
Yes

Safety regulation & standards

Safety
IEC/EN 62040-1, UL 1778, CSA 22.2

Sustainability

Sustainability certificates
ENERGY STAR

Weight & dimensions

Width
440 mm
Height
86.5 mm

Logistics data

Harmonized System (HS) code
85078000
