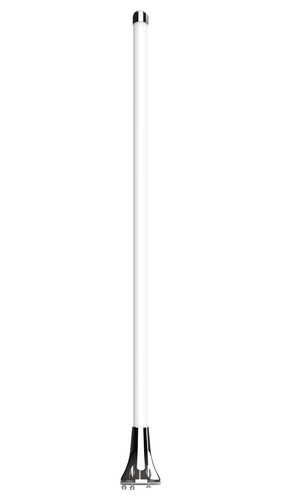

Poynting OMNI-902 network antenna Omni-directional antenna N-type 8 dBi

Poynting OMNI-902 network antenna Omni-directional antenna N-type 8 dBi

Name: Poynting OMNI-902 network antenna Omni-directional antenna N-type 8 dBi
Brand: Poynting
SKU: A-OMNI-0902-V1-01
Price: 1734.56 EUR
Availability: OutOfStock

The OMNI-902 is a high-performance, ultra-wideband antenna designed for seamless LTE/5G connectivity across all contemporary frequency bands. Covering 617 to 4200 MHz, this antenna delivers superior signal reception with balanced gain across all frequencies. Its robust design and advanced 2x2 MIMO technology make it ideal for marine and coastal applications.

Ultra-Wideband Frequency Coverage: Supports LTE/5G bands from 617 to 4200 MHz, including LTE Band 71 and CBRS bands from 3400 to 4200 MHz.
True Omni-Directional 2x2 MIMO: Features two high-gain omni-directional antennas for superior pattern control and stable connectivity.
Superior Pattern Diversity: Ensures balanced signal performance across all frequencies, maximising coverage and reliability.
Marine-Grade Durability: Fully saltwater protected with a rugged fiberglass radome, designed to withstand highly corrosive environments.
IP68 Protection Rating: Provides complete protection against dust and water ingress, ensuring operation in extreme marine conditions.
Future-Proof Design: Optimised for both current and next-generation LTE and 5G networks, guaranteeing long-term connectivity.
The OMNI-902 is a globally deployable solution, providing reliable and high-performance signal reception for marine, coastal, and inland applications requiring robust LTE/5G connectivity.

Ideal Applications
- Marine applications: Super Yachts / Boats / Ferries
- Enhanced LTE/4G and 5G reception
- Increase system transmission reliability
- High-end industrial grade router applications
- Industrial and commercial LTE/5G deployment
- Agricultural and farming LTE/5G data distribution

ON ORDER

SKU: A-OMNI-0902-V1-01

Manufacturer: Poynting

RRP Price €1,734.56

Specifications

Performance

Frequency band

0.617 - 0.96 / 1.427 - 1.517 / 1.71 - 2.7 / 3.4 - 4.2 GHz

Impedance

50 Ω

Antenna gain level (max)

8 dBi

Features

Antenna type

Omni-directional antenna

Antenna connector type

N-type

Connector gender

Female

Polarization

Linear, vertical

Voltage Standing Wave Ratio (VSWR)

≤2.5:1

Product colour

Stainless steel, White

Housing material

Fibreglass, Stainless steel

Protection features

Saltwater resistant, UV resistant

International Protection (IP) code

IP68

Ultraviolet (UV) resistant

Yes

Survival wind speed

190 km/h

Cable length

2 m

Cable type

Twin HDF 195

Mounting

Universal

Purpose

Indoor & outdoor

Certificates

Certification

MIL-STD 810G/ASTM B117

Operational conditions

Operating temperature (T-T)

-40 - 80 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Height

1654 mm

Diameter

14.5 cm

Weight

4.76 kg

Packaging data

Package width

1710 mm

Package depth

180 mm

Package height

210 mm

Package weight

9.5 kg

Mobile network

4G standard

LTE

Packaging content

Quantity per pack

1 pc(s)

Mounting brackets included

Yes

Description

Manufacturer

Poynting

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

4.76 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
