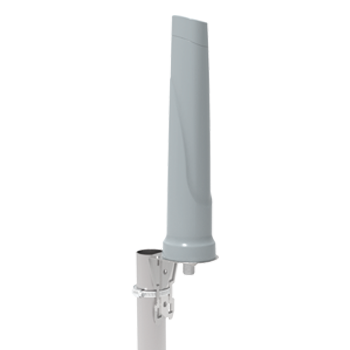

Poynting OMNI-0703 network antenna Omni-directional antenna N-type 4.5 dBi

Poynting OMNI-0703 network antenna Omni-directional antenna N-type 4.5 dBi

Name: Poynting OMNI-0703 network antenna Omni-directional antenna N-type 4.5 dBi
Brand: Poynting
SKU: A-OMNI-0703-V1-01
Price: 82.05 EUR
Availability: OutOfStock

Rugged Omni-Directional 2.4 GHz Wi-Fi Antenna
The OMNI-703 is a high-performance omni-directional Wi-Fi antenna, part of Poynting’s new "Rhyno" antenna range. Operating in the 2.4 – 2.5 GHz band, this antenna provides reliable connectivity with a maximum gain of 4.5 dBi. Its superior pattern control and durable construction make it ideal for industrial and harsh environments.

Optimised 2.4 GHz Wi-Fi Connectivity: Covers the 2.4 GHz Wi-Fi band, ensuring stable and high-speed connections.
High-Gain Performance: Provides 4.5 dBi peak gain with consistent performance across the entire frequency range.
Omni-Directional Design: Offers 360° coverage, reducing dead zones and enhancing network reliability.
Superior Pattern Control: Ensures stable signal distribution, improving performance in RF-noisy environments.
Built for Harsh Environments: UV-stable ASA housing protects against corrosive industrial, chemical, and toxic environments.
Rugged & Weatherproof Design: IP69K and IK10-rated enclosure ensures durability in extreme conditions.
Customisable Connectivity: Equipped with an N-Type female connector, allowing easy integration with various cable types and lengths.
The OMNI-703 is a reliable and durable Wi-Fi antenna, designed to deliver consistent performance in industrial, commercial, and outdoor applications.

Ideal Applications
Smart Utilities: Smart Power Metering, Gas & Water Metering
Smart Buildings: Climate control, access control, security, irrigation
Smart Environmental & Water Systems
Warehouses & Logistics systems
Industrial factory automation and M2M systems
Farming & Agricultural M2M IoT

ON ORDER

SKU: A-OMNI-0703-V1-01

Manufacturer: Poynting

RRP Price €82.05

Specifications

Performance

Frequency band

2.4-2.5 GHz

Networking standards

IEEE 802.11b, IEEE 802.11g

Antenna gain level (max)

4.5 dBi

Wi-Fi standards

802.11g

Features

Antenna type

Omni-directional antenna

Antenna connector type

N-type

Product colour

Grey

International Protection (IP) code

IP69K

Purpose

Indoor & outdoor

Operational conditions

Operating temperature (T-T)

-40 - 80 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Height

306 mm

Diameter

7 cm

Weight

260 g

Packaging data

Package width

386 mm

Package depth

96 mm

Package height

80 mm

Package weight

565 g

Description

Manufacturer

Poynting

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.26 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
