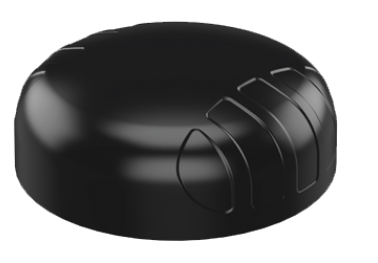

Poynting PUCK-7-V2 network antenna Omni-directional antenna SMA 6.5 dBi

Name: Poynting PUCK-7-V2 network antenna Omni-directional antenna SMA 6.5 dBi
Brand: Poynting
SKU: A-PUCK-0007-V2-01
Price: 101.44 EUR
Availability: InStock

Poynting’s PUCK range introduces a small-profile, high-performance antenna designed for IoT/M2M, Smart Metering, Smart Utilities, Transportation, Marine, and Agricultural/Farming applications. The PUCK-7 is a 4-in-1 antenna system within a single enclosure, offering reliable and future-proof connectivity for 5G, LTE, and Wi-Fi applications.

Wideband Cellular Coverage: Features 2x Cellular MIMO antennas covering 617 to 6000 MHz, ensuring compatibility with 2G, 3G, 4G, and 5G networks.
Dual-Band 2x2 MIMO Wi-Fi Connectivity: Supports 2.4 GHz, 5 GHz, and 6 GHz bands, compatible with 802.11n, 802.11ac/ax/be standards.
Future-Proof 5G and LTE Implementation: Ultra-wideband performance ensures seamless operation across different operators and evolving cellular technologies up to 6 GHz.
Optimised Radiation Patterns: Provides a balance of omnidirectionality, pattern diversity, and reliable signal performance at the desired elevation.
Compact & Versatile Design: Small form factor enables easy integration across multiple industries while maintaining high-performance capabilities.
Enhanced Connection Stability: Designed to ensure both 5G/LTE ports are connected to the router/device for maximum throughput and performance.
The PUCK-7 is an excellent choice for applications requiring a compact yet powerful antenna solution, delivering strong and stable 5G, LTE, and Wi-Fi connectivity. For SISO applications, other derivatives in the PUCK range may be more suitable.

34 IN STOCK

SKU: A-PUCK-0007-V2-01

Manufacturer: Poynting

RRP Price €101.44

Specifications

Performance

Frequency band

0.617 - 6 GHz

Gain

6 dBi

Impedance

50 Ω

Antenna gain level (max)

6.5 dBi

Wi-Fi standards

802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

Features

Antenna type

Omni-directional antenna

Antenna connector type

SMA

Connector gender

Male

Polarization

Linear polarization

Product colour

Black

Housing material

Acrylonitrile butadiene styrene (ABS)

International Protection (IP) code

IP69K

Cable length

2 m

Cable type

RTK-031

Mounting

Universal

Purpose

Outdoor

Certificates

Compliance certificates

CE, RoHS

Certification

CE, RoHS

Operational conditions

Operating temperature (T-T)

-40 - 80 °C

Storage temperature (T-T)

-40 - 80 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Height

36 mm

Diameter

9.93 cm

Weight

340 g

Packaging data

Package width

150 mm

Package depth

150 mm

Package height

120 mm

Package weight

661 g

Package type

Box

Mobile network

4G standard

LTE

Packaging content

Quantity per pack

1 pc(s)

Mounting kit

Yes

Quick installation guide

Yes

Description

Manufacturer

Poynting

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

Weight

0.34 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
