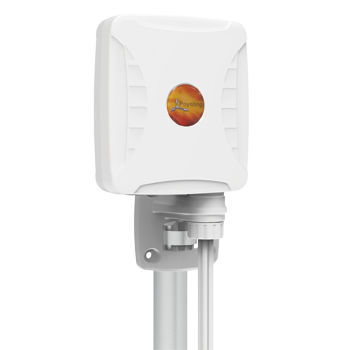

Poynting XPOL-1-5G network antenna Omni-directional antenna SMA 4 dBi

Poynting XPOL-1-5G network antenna Omni-directional antenna SMA 4 dBi

Name: Poynting XPOL-1-5G network antenna Omni-directional antenna SMA 4 dBi
Brand: Poynting
SKU: A-XPOL-0001-V2-21
Price: 106.03 EUR
Availability: OutOfStock

The XPOL-1-5G is Poynting’s second generation “V2” of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna. The addition of a 4X4 MIMO derivative is also available for user specific needs. The antenna has been completely redesigned form the previous generation with an all new enclosure and antenna design. The antenna now includes the newer 3400 – 3800 MHz bands as well as the in demand lower 617 MHz band, which were not previously covered by our V1 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 617 – 960 MHz, 1700 – 2170 MHz, 2300 – 2700 MHz & 3400 – 3800 MHz, with a peak gain of 4 dBi across the frequency bands of operation.

The radiation patterns of this antenna are omni-directional and exceptionally well controlled, further adding to the performance of the antenna. This makes the antenna perfect for most application areas, such as urban, rural, agricultural and commercial, to achieve the best possible coverage over a large area. The robust mechanical enclosure design makes the antenna weather, dust and vandal resistant and gives it an IP65 rating, suitable for harsh environments.

ON ORDER

SKU: A-XPOL-0001-V2-21

Manufacturer: Poynting

RRP Price €106.03

Specifications

Performance

Frequency band

0.617 - 3.4 GHz

Impedance

50 Ω

Antenna gain level (max)

4 dBi

Features

Antenna type

Omni-directional antenna

Antenna connector type

SMA

Connector gender

Male

Voltage Standing Wave Ratio (VSWR)

2.5:1

Product colour

White

Protection features

Dust resistant, UV resistant, Water resistant

International Protection (IP) code

IP65

Ultraviolet (UV) resistant

Yes

Survival wind speed

250 km/h

Power handling

10 W

Cable length

5 m

Cable type

HDF-195

Mounting

Wall/Pole

Purpose

Outdoor

Certificates

Sustainability compliance

Yes

Compliance certificates

CE, RoHS

Operational conditions

Operating temperature (T-T)

-40 - 80 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

157 mm

Depth

88 mm

Height

247 mm

Weight

950 g

Packaging data

Package width

270 mm

Package depth

190 mm

Package height

100 mm

Package weight

1.05 kg

Packaging content

Quantity per pack

1 pc(s)

Logistics data

Country of origin

China

Description

Manufacturer

Poynting

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.95 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
