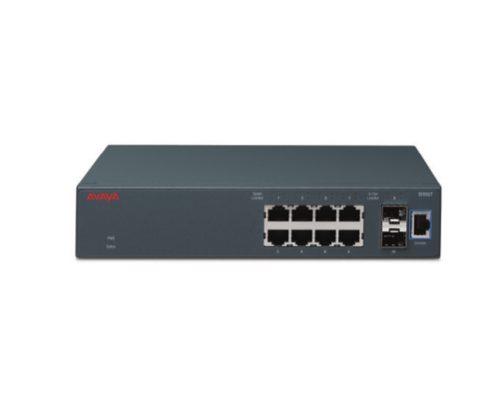

Avaya ERS 3510GT Managed L3 Gigabit Ethernet (10/100/1000) 1U Black

Ethernet Switches That Are Simple to Operate

- Deploy these Ethernet Switches for a small or midsize company to power end-user devices throughout the office. They come with certified one-minute plug-and-play for IP phones, an intuitive management GUI, and automated set-up. It can be installed in open environments outside the wiring closet
- Choose from 10-, 24- and 48-port variants, and standalone and stackable options. There are also fanless models for silent running in classrooms, hospitality suites, or retail sites. All are easy to install, manage, and run.
- Pace your growth with our resilient stacking design that supports pay-as-you-grow scaling. Use up to 80 Gbps of virtual backplane capacity and connection for up to 384 devices.

Simple to Operate

Plug and play for IP phones, automated QoS provisioning, and GUI management simplify initial deployment as well as ongoing adds, moves, and changes.

Cost Effective

100+ enterprise class features, including PoE, PoE+, at price points that fit into tight budgets.

Easy Set-Up for Avaya IP Office

If you’re using Avaya IP Office for communications, our auto set-up really simplifies integration and provisioning.

Certified One-Minute Plug-and-Play for IP Phones

When an IP phone is plugged in, it is automatically recognized and configured. This can dramatically simplify the roll out and management of IP phones.

Auto Set-Up for Avaya IP Office

The switch includes an automated script enabling fast, error-free installation when deployed with Avaya IP Office. The script automatically sets up VLAN, QoS, and other switch parameters, so IP Office and IP Phones are ready for immediate connection. Avaya takes a typically hours-long task— especially to someone not familiar with an Ethernet switch—and reduces it to a minute.

Intelligent Stacking Delivers Scalability

Avaya combines a non-blocking internal switching fabric with a high-speed virtual backplane, enabling proportional scaling and automated software configuration when new switches are added. Up to eight switches and 384 user ports can be supported by cabling units together.

Lifetime Warranty

Avaya provides warranty services for the Ethernet Routing Switch 3500 Series. The warranty includes ongoing technical support and complimentary next-business-day shipment to replace failed units.

ON ORDER

SKU: AL3500A04-E6

Manufacturer: Extreme networks Extreme networks

RRP Price €646.56

Specifications

Management features

Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
Traffic shaping
Yes
ARP inspection
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
SFP module slots quantity
2
Console port
RJ-45

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Virtual LAN features
Tagged VLAN, Protocol-based VLAN, Port-based VLAN
Number of VLANs
256

Optical fiber

Fiber ethernet cabling technology
10GBASE-ER, 10GBASE-LR, 10GBASE-LRM, 10GBASE-SR, 100BASE-FX, 1000BASE-EX, 1000BASE‑BX, 1000BASE‑ZX

Data transmission

Switching capacity
20 Gbit/s
Throughput
14.9 Mpps
MAC address table
16000 entries
Number of queues
4
Jumbo frames support
Yes
Jumbo frames
9216

Security

DHCP features
DHCP server, DHCP client
IGMP snooping
Yes
Security algorithms
802.1x RADIUS, HTTPS, SSH, SSL/TLS
BPDU filtering/protection
Yes
Authentication
Port-based authentication

Protocols

Management protocols
SNMP v1/v2/v3, Telnet

Design

Rack mounting
Yes
Stackable
No
Form factor
1U
Product colour
Black
LED indicators
Yes
Wall mountable
Yes
Safety
IEC 60950, EN 60950, UL60950, CSA22.2, #60950, NOM
Electromagnetic compatibility
CISPR22, Class A/CISPR24, EN55022 Class A/EN55024, FCC Part 15 Class A, ICES-003, AN/NZS 3548, BSMI, MIC, VCCI Class A

Performance

Built-in processor
Yes
Processor frequency
400 MHz
Internal memory
128 MB
Flash memory
32 MB
Noise level
0 dB
Mean time between failures (MTBF)
892667 h

Power

AC input voltage
100 - 240 V
AC input frequency
47/63 Hz
Power consumption (max)
18 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 3048 m
Heat dissipation
61 BTU/h

Weight & dimensions

Width
220 mm
Depth
200 mm
Height
44.5 mm
Weight
1.75 kg

Accessories

License
