Home > Antennas > Peplink > ANT-SLM-22G-S-B-6

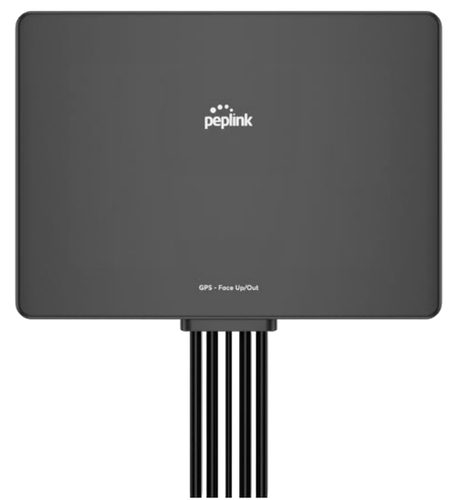

Peplink Slim 22G network antenna Omni-directional antenna SMA 7.5 dBi

Ultra Wide BandwidthWide frequency range (600-6000MHz) for LTE and 5G connections, including B71.Built for 5GOmni-directional 2×2 or 4×4 MIMO mobile antenna for the best performance.Wi-Fi2×2 MIMO dual band (2.4GHz & 5GHz) high gain omnidirectional antennas for local coverage.Low Profile DesignHigh performance in a small, durable housing.Easy InstallationCan be mounted on a window or wall or hidden under a vehicle dashboard.

24 IN STOCK

RRP Price €220.07

  loading...
Register for Discounts

Specifications

Performance

Frequency band
0.617 - 6 GHz
Antenna gain (2.4 GHz)
5.5 dBi
Antenna gain (5 GHz)
5.7 dBi
Impedance
50 Ω
Antenna gain level (max)
7.5 dBi
LNA gain
28 dB
GPS frequency
1561 - 1602 MHz
Noise figure
1.5 dB

Features

Antenna type
Omni-directional antenna
Antenna connector type
SMA
Connector gender
Male
Polarization
Linear polarization
Product colour
Black
International Protection (IP) code
IP55
Power handling
10 W
Cable length
2 m
Cable type
CFD-200

Power

Power consumption
8.5 mA
Input voltage
3.3 V

Certificates

Compliance certificates
REACH, RoHS, WEEE

Operational conditions

Operating temperature (T-T)
-40 - 80 °C
Storage temperature (T-T)
-40 - 80 °C

Weight & dimensions

Width
180 mm
Depth
130 mm
Height
15 mm

Packaging data

Package width
244 mm
Package depth
80 mm
Package height
250 mm

Mobile network

4G standard
LTE
Peplink Slim 22G network antenna Omni-directional antenna SMA 7.5 dBi

Description

Manufacturer

Peplink

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

24

WH3 (5–7 Days)

N/A

Weight

1.5 kg

Country of Origin

N/A

Datasheet

Data Sheet
